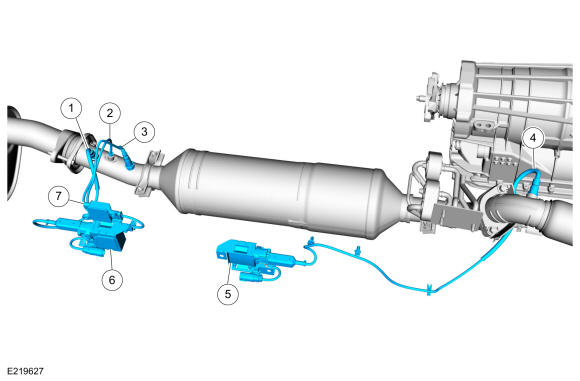

Electronic Engine Controls - Under vehicle
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
NOX sensor 12 |
| 2 |
Exhaust Gas Temperature sensor 13 |
| 3 |
Particulate Matter sensor 11 |
| 4 |
NOX sensor 11 |
| 5 |
NOX11 |
| 6 |
NOX12 |
| 7 |
Particulate Matter sensor Module 11 |
