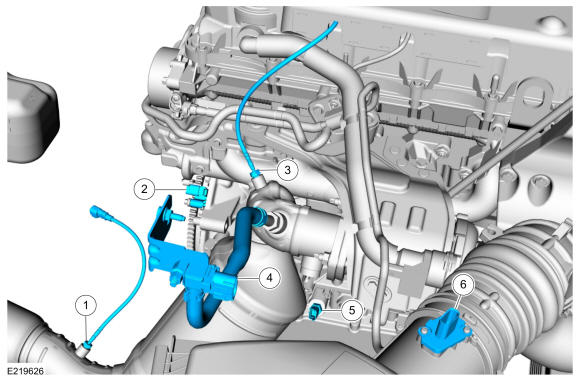

Electronic Engine - Right side
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Exhaust Gas Temperature sensor 12 |
| 2 |
CKP sensor |
| 3 |
Exhaust Gas Temperature sensor 11 |
| 4 |
DPF Differential Pressure sensor |
| 5 |
Engine Oil Level sensor |
| 6 |
MAFT sensor |
