Turbocharger RH: Installation

NOTE: Make sure that the mating faces are clean and free of foreign material.

Lubricate the turbocharger fitting and oil filter assembly O-ring with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install the turbocharger fitting and oil filter assembly.
Torque: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new turbocharger oil tube assembly O-ring seal. Lubricate the new turbocharger oil tube assembly O-ring seal with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the cylinder block bore with clean engine oil.

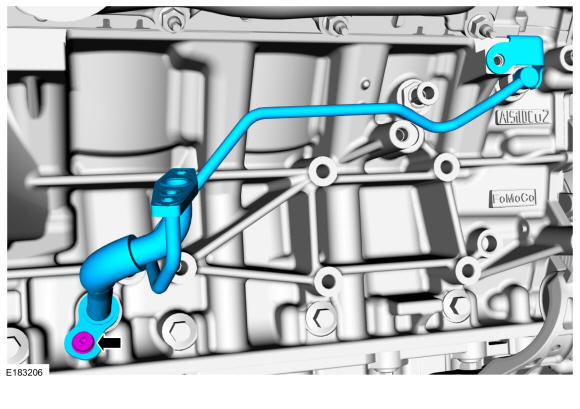

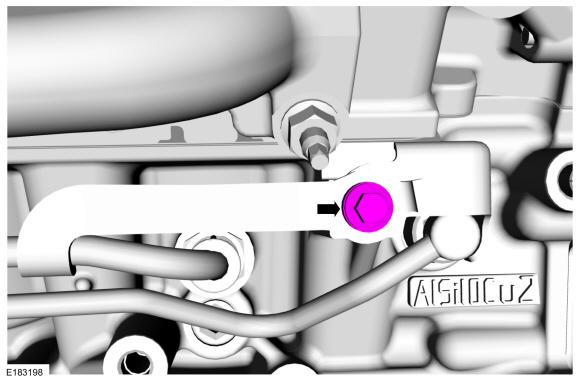

Install the turbocharger oil tube assembly, then install and tighten the turbocharger oil tube assembly lower bolt in the following 2 stages. Refer to: Specifications .

Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 30 deg.

Courtesy of FORD MOTOR COMPANY

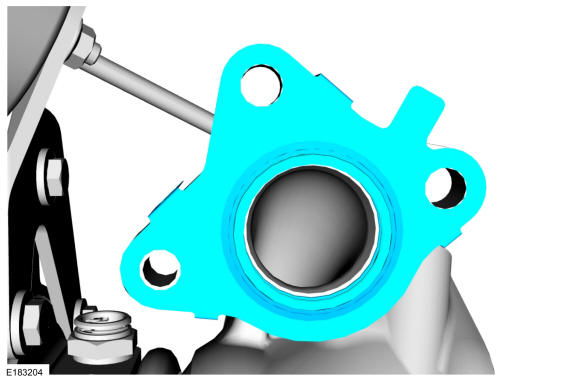

Install the new the turbocharger exhaust flange gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply high temperature nickel anti-seize lubricant to the turbocharger exhaust flange stud bolt threads prior to installation of the turbocharger exhaust flange.

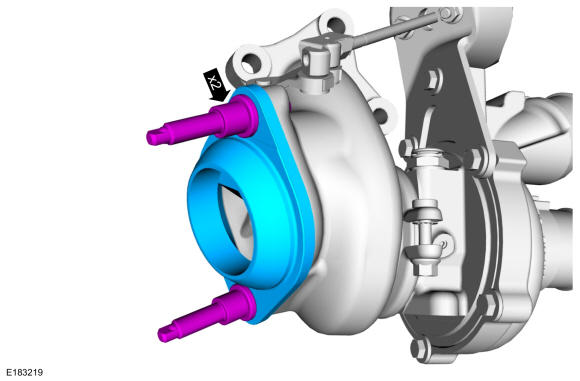

Install the turbocharger exhaust flange and the new turbocharger exhaust flange stud bolts. Tighten the new turbocharger exhaust flange stud bolts.

Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

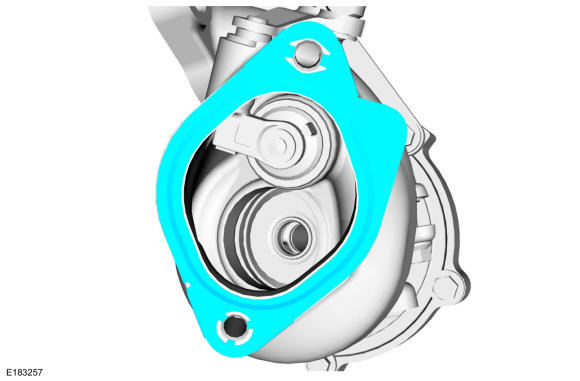

Install the new turbocharger gasket.

Courtesy of FORD MOTOR COMPANY

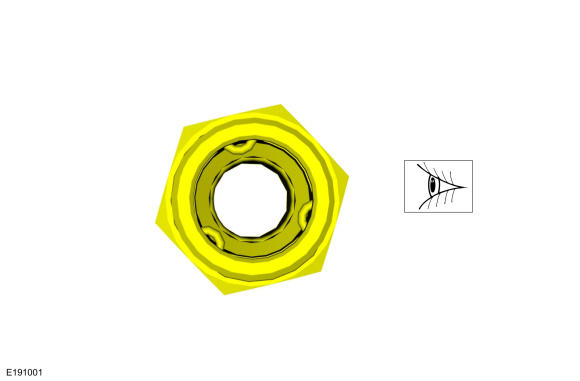

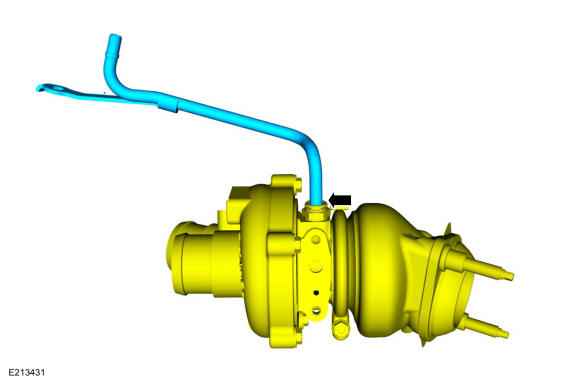

Inspect the turbocharger coolant tube-to-turbocharger fittings and replace as needed.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

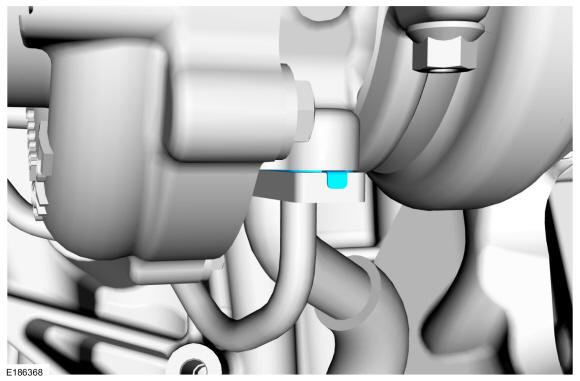

Place the turbocharger in the vehicle. Connect the turbocharger coolant tube to the turbocharger fitting.

Courtesy of FORD MOTOR COMPANY

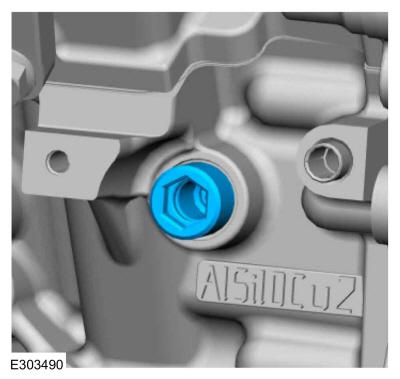

Inspect the turbocharger coolant supply tube-to-engine block fitting and replace as needed.
Torque: 37 lb.ft (50 Nm)

Courtesy of FORD MOTOR COMPANY

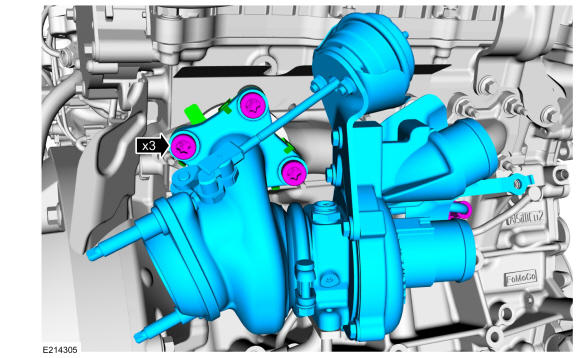

Install the new turbocharger mounting bolts, install the turbocharger coolant supply tube to the block fitting while installing the turbocharger.
Torque: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new upper turbocharger oil tube assembly gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the turbocharger oil tube assembly upper bolts finger tight at the turbocharger.
1. Tighten the outer turbocharger oil tube manifold bolt.
  Torque: 44 lb.in (5 Nm)
2. Tighten the inner turbocharger oil tube bolt in the following 2 stages.
  Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 30 deg.
3. Tighten the outer turbocharger oil tube bolt in the following 2 stages.
  Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 30 deg.
Courtesy of FORD MOTOR COMPANY

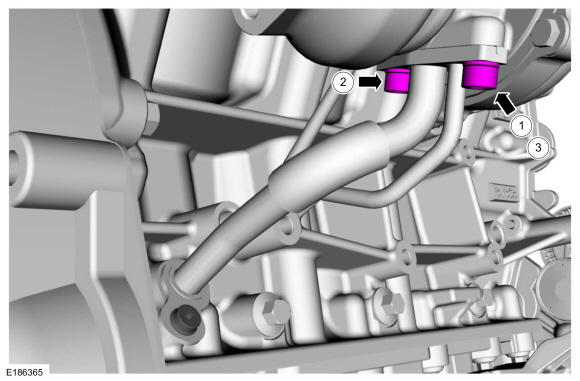

Install the turbocharger coolant supply tube and the turbocharger oil feed tube bolt and tighten the bolt.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 30 deg.

Courtesy of FORD MOTOR COMPANY

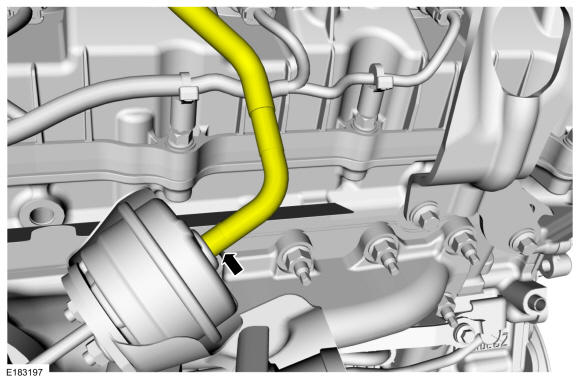

Connect the turbocharger wastegate hose.

Courtesy of FORD MOTOR COMPANY
Inspect the turbocharger coolant return tube fittings and replace as needed.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

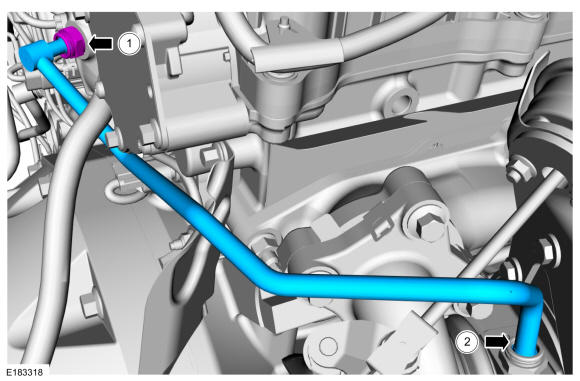

1. Install the turbocharger coolant return tube and connect the turbocharger coolant return tube to the engine.
2. Connect the turbocharger coolant return tube to the turbocharger.
Courtesy of FORD MOTOR COMPANY
NOTE: Position the dual catalytic converter Y-Pipe in vehicle with a new LH catalytic converter flange-to- TC gasket. Install all the fasteners hand tight.

Evenly tighten the new LH catalytic converter flange nuts onto the TC.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Evenly tighten the new RH catalytic converter flange nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

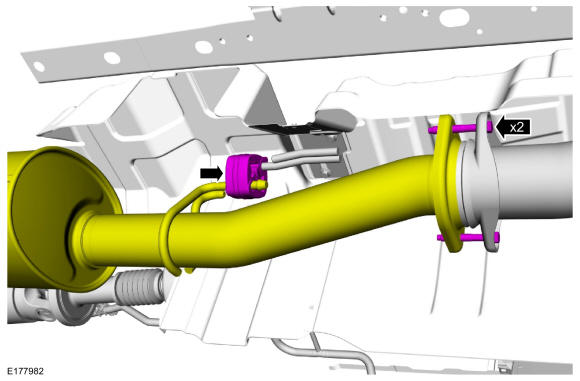

Attach the exhaust hanger and tighten the exhaust flange bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

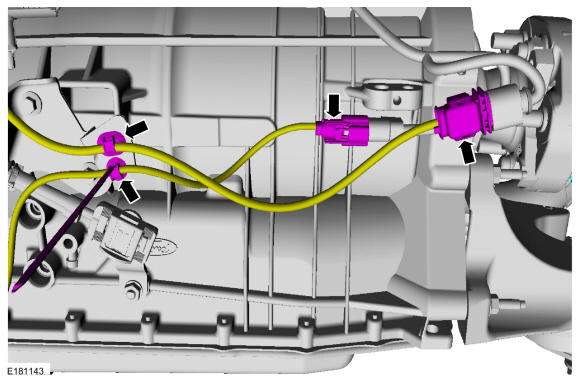

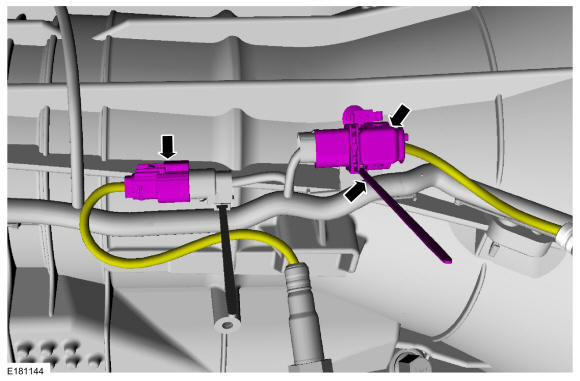

- Connect the RH HO2S and the RH catalyst monitor sensors.
- Connect the wire routing connector.
Courtesy of FORD MOTOR COMPANY
- Connect the LH HO2S and the LH catalyst monitor sensors.
- Connect the wire routing connectors.
Courtesy of FORD MOTOR COMPANY
Install the Air Conditioning (A/C) compressor. Refer to: Air Conditioning (A/C) Compressor - 3.5L EcoBoost (235kW/320PS) .
Install the starter motor. Refer to: Starter Motor .

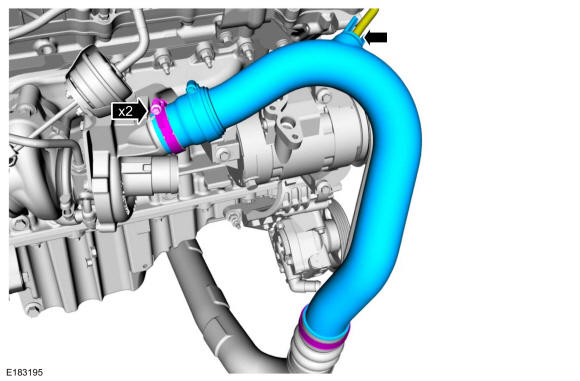

Install the turbocharger outlet tube. Tighten the clamps and connect the hose.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

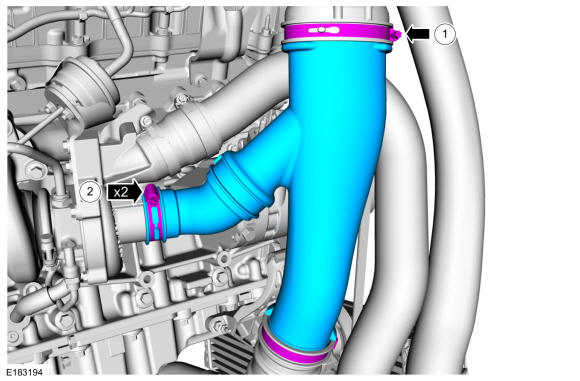

1. Install the turbocharger inlet tube and tighten the clamps.
  Torque: 36 lb.in (4.1 Nm)
2. Tighten the turbocharger inlet tube clamps.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Start and check the exhaust system for leaks.
