Fuel Charging And Controls - Turbocharger - 3.5L ECOBOOST (235KW/320PS)
>>
Description And Operation
>>
Turbocharger - Component Location

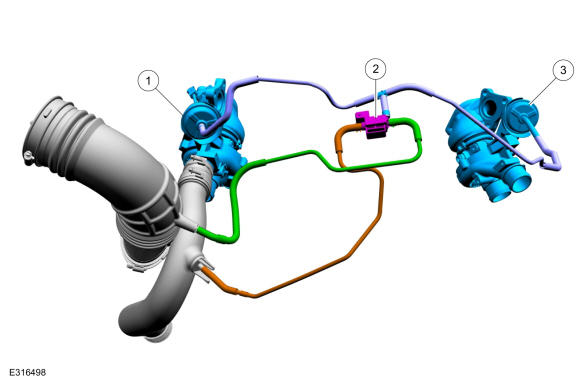

Turbocharger - Component Location
3.5L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Right turbocharger
2
Wastegate control valve solenoid
3
Left turbocharger

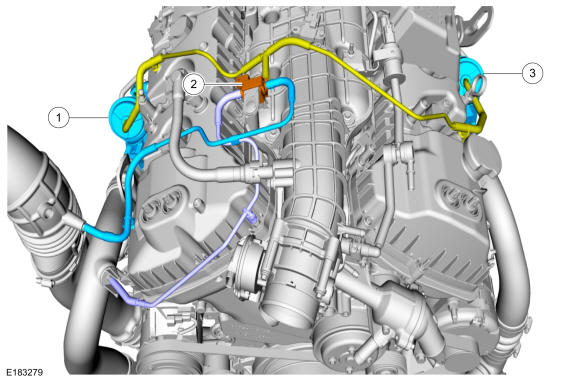

Turbocharger Control
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Right turbocharger
2
Wastegate control valve solenoid
3
Left turbocharger
