Electronic Engine Controls - 3.2L Diesel

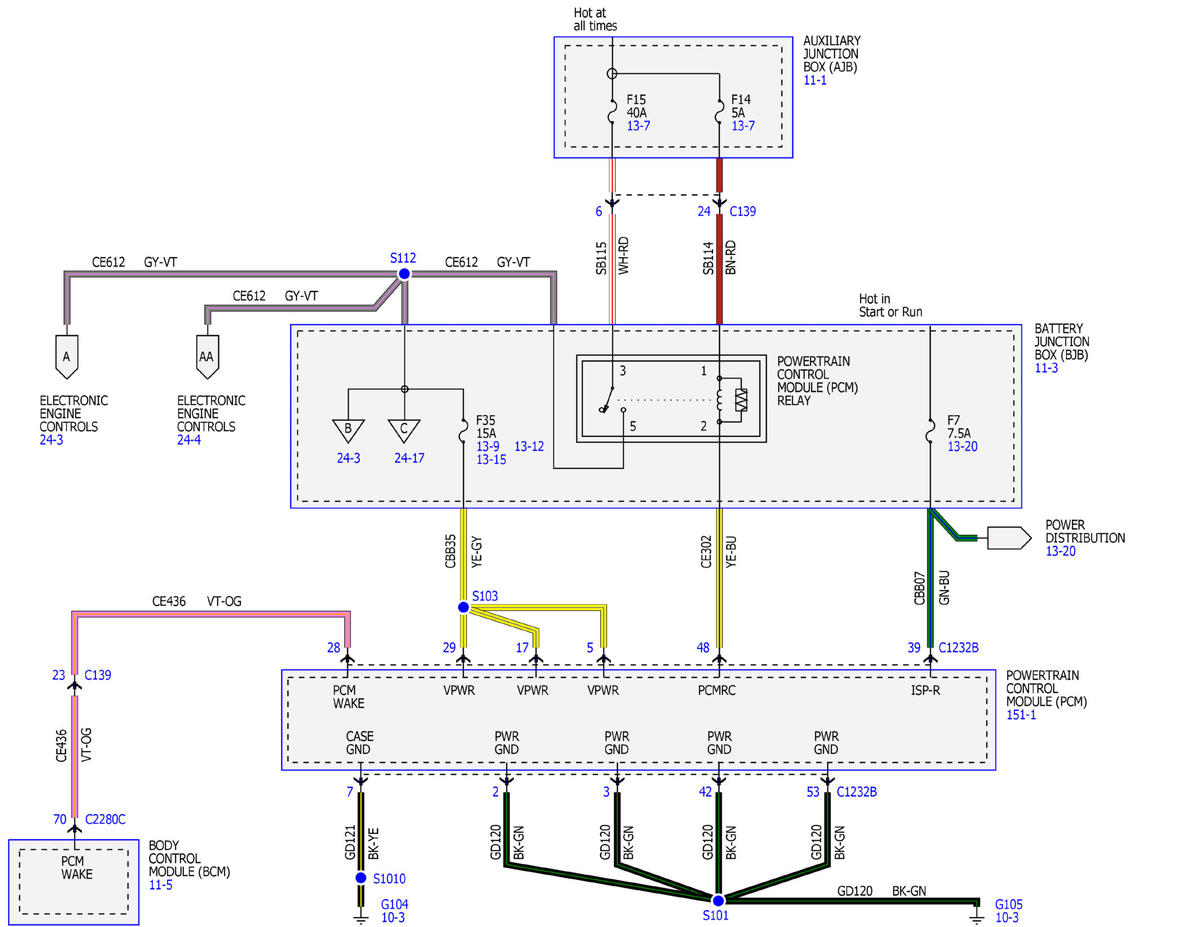

Fig 1: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (1 of 22)

GFDWR21719

Courtesy of FORD MOTOR COMPANY

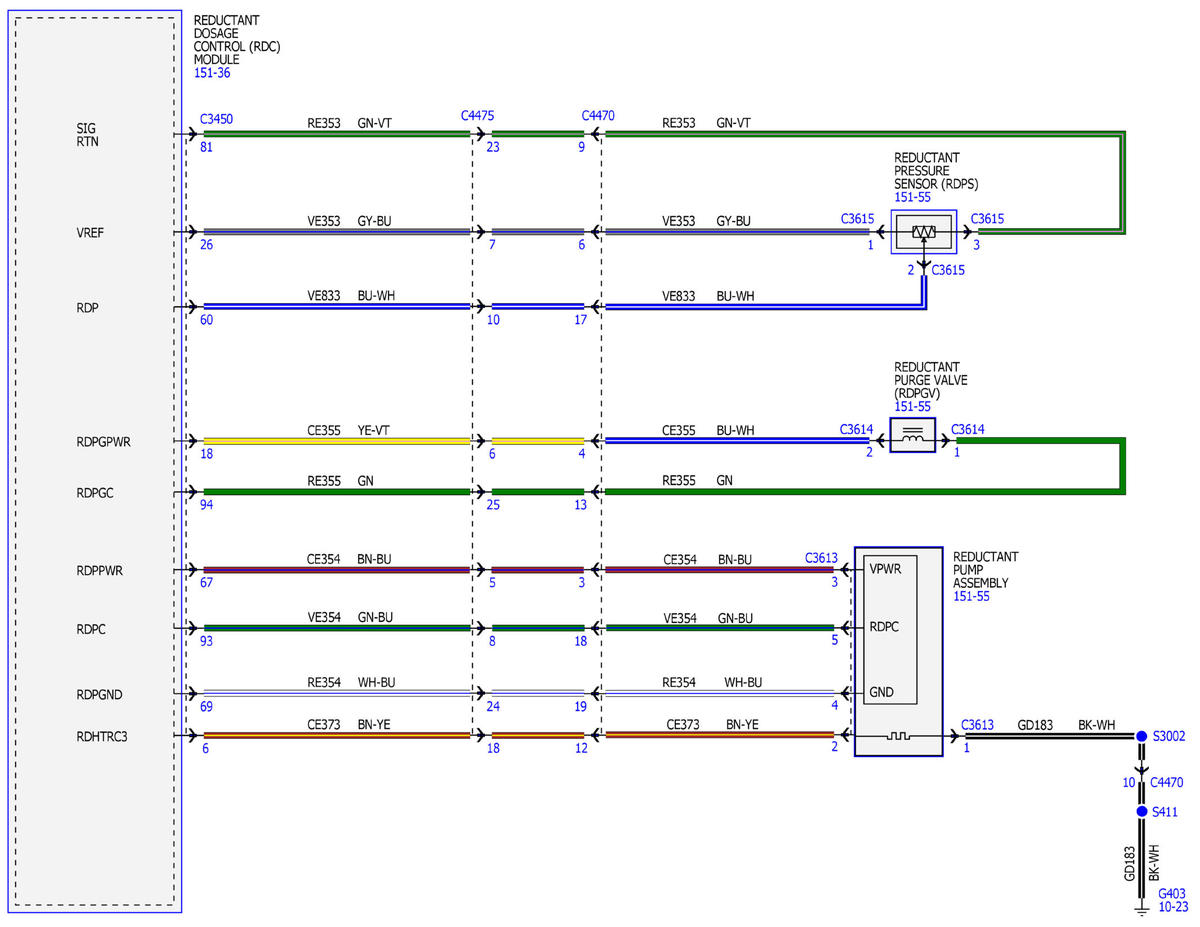

Fig 2: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (2 of 22)

GFDWR21720

Courtesy of FORD MOTOR COMPANY

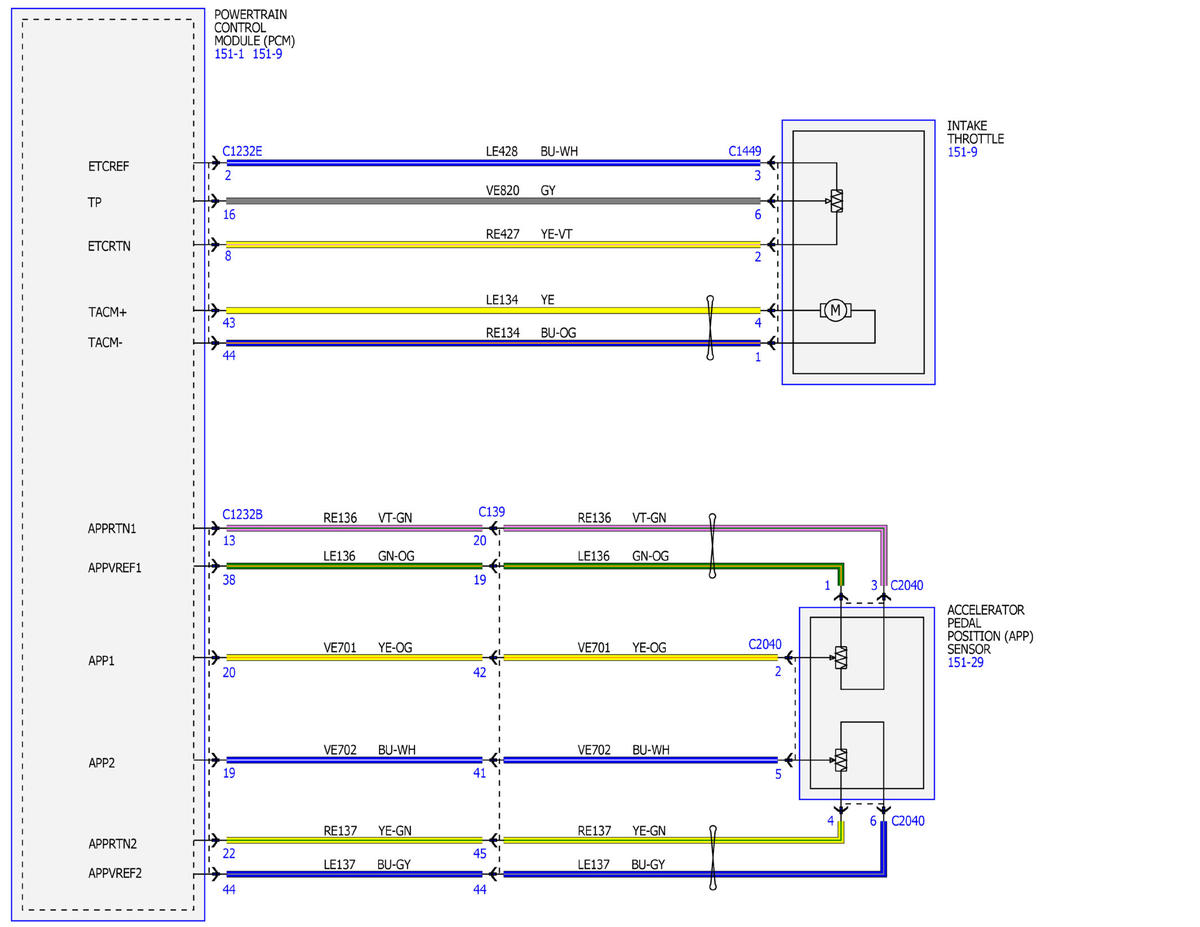

Fig 3: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (3 of 22)

GFDWR21721

Courtesy of FORD MOTOR COMPANY

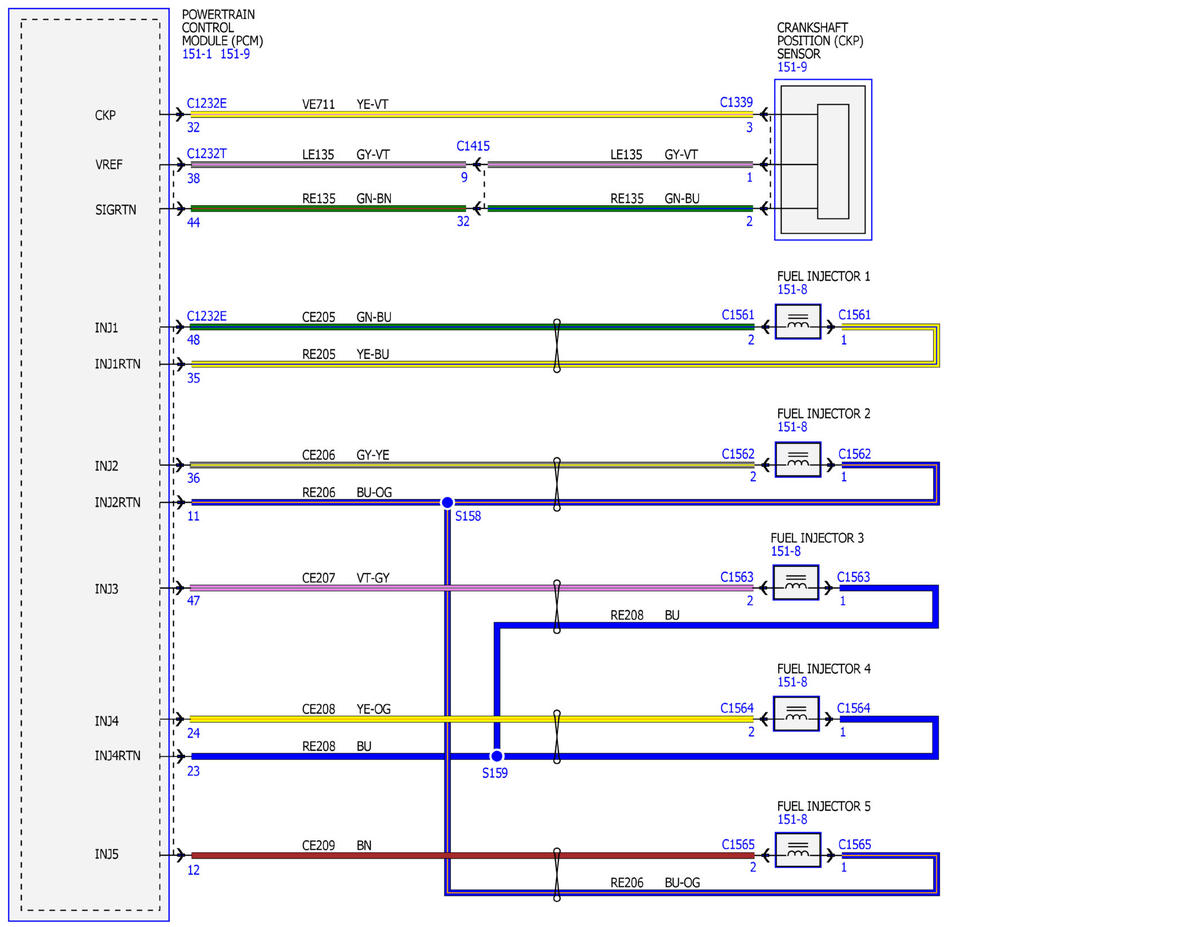

Fig 4: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (4 of 22)

GFDWR21722

Courtesy of FORD MOTOR COMPANY

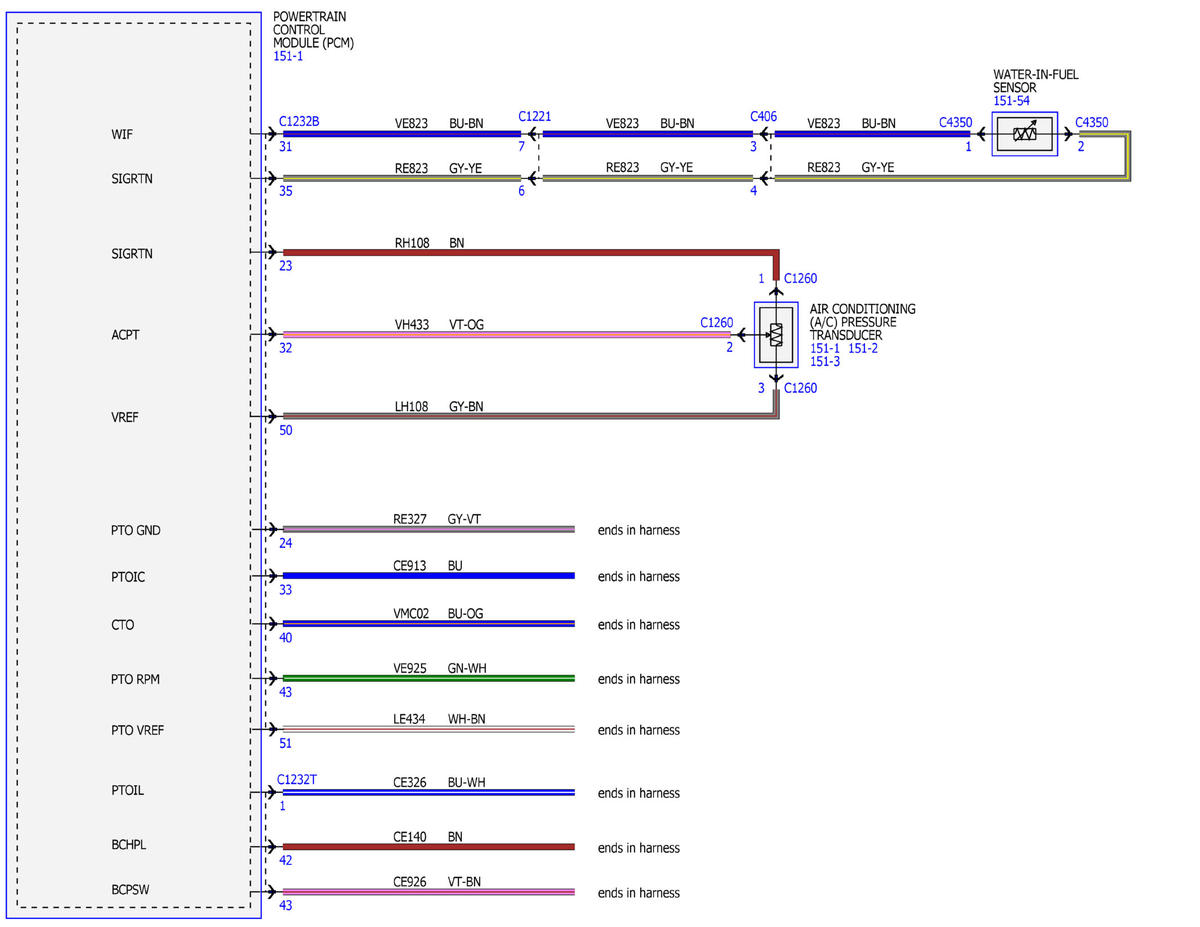

Fig 5: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (5 of 22)

GFDWR21723

Courtesy of FORD MOTOR COMPANY

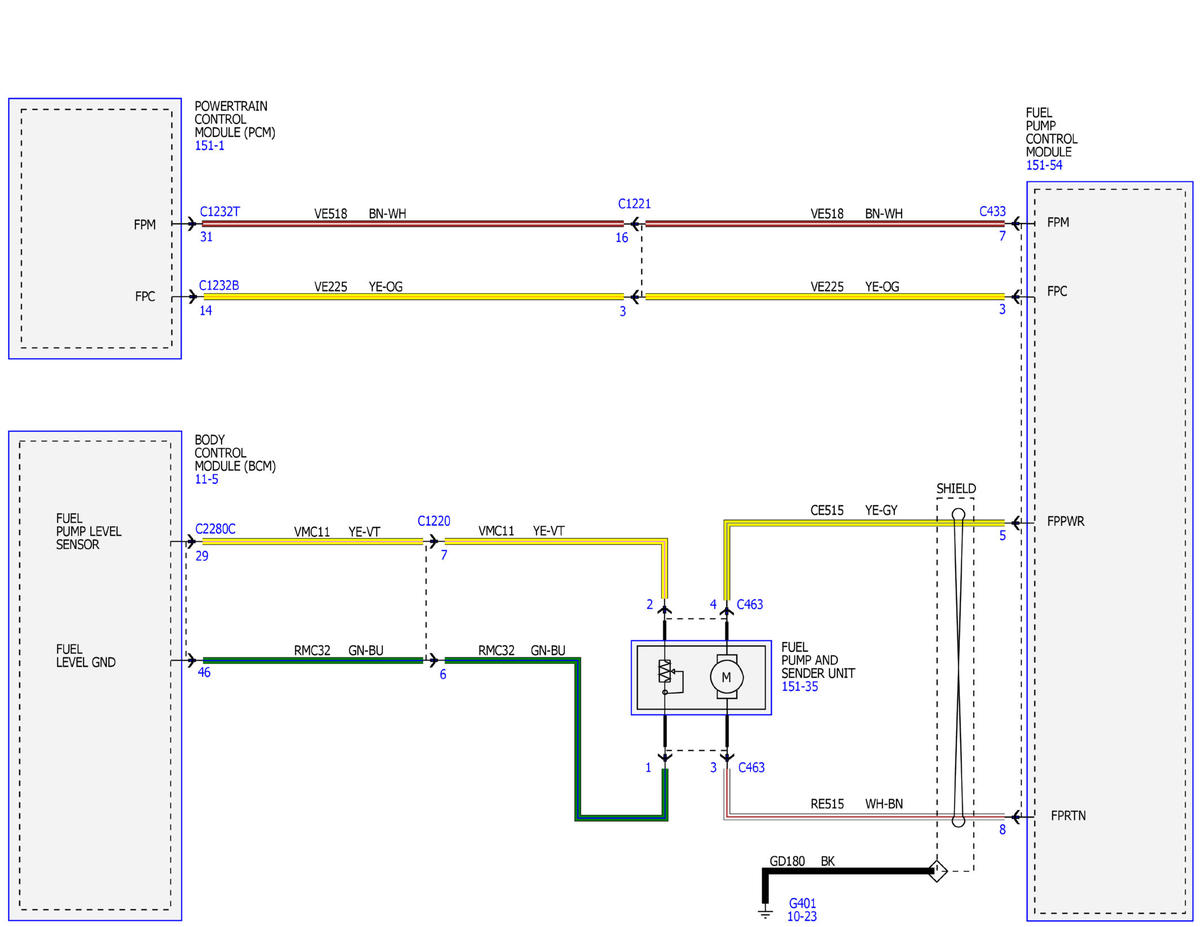

Fig 6: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (6 of 22)

GFDWR21724

Courtesy of FORD MOTOR COMPANY

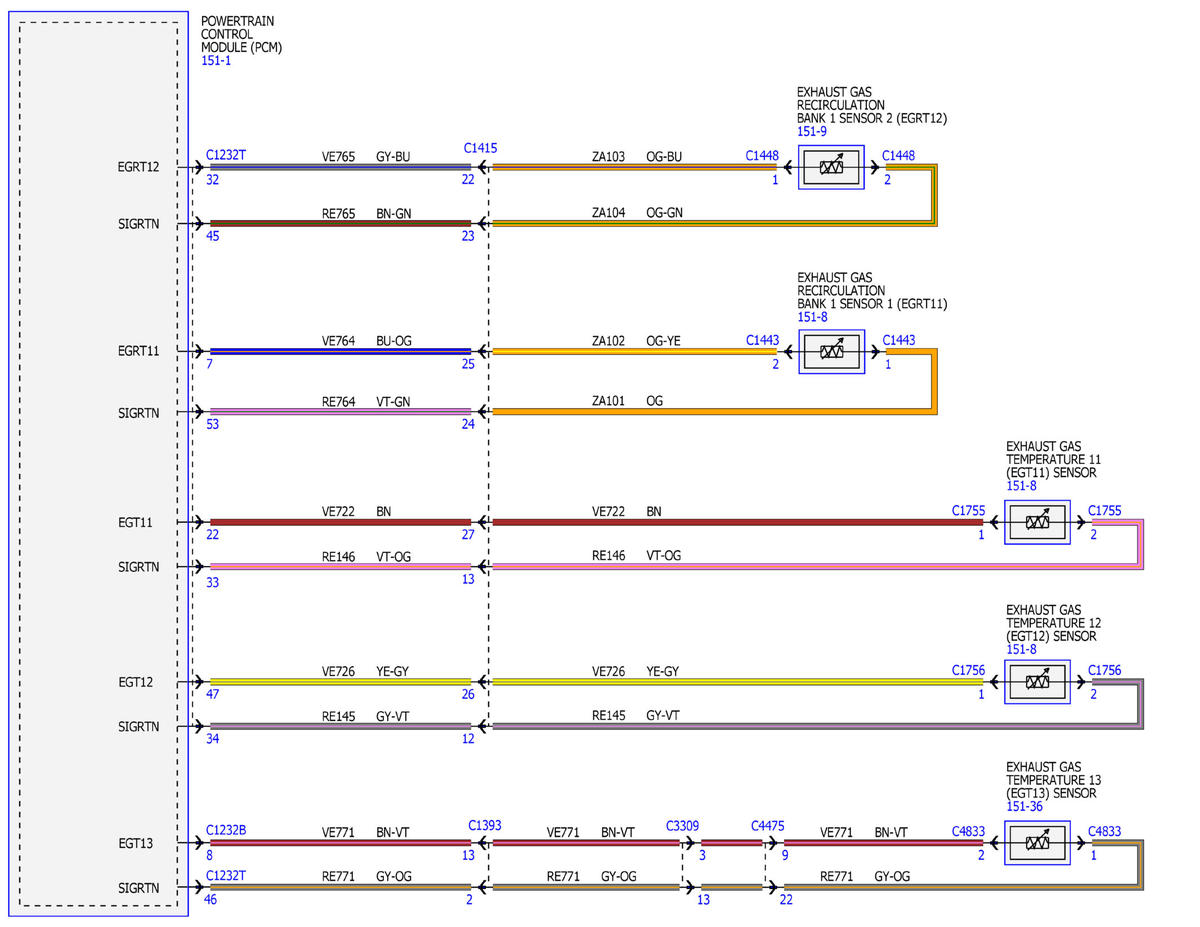

Fig 7: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (7 of 22)

GFDWR21725

Courtesy of FORD MOTOR COMPANY

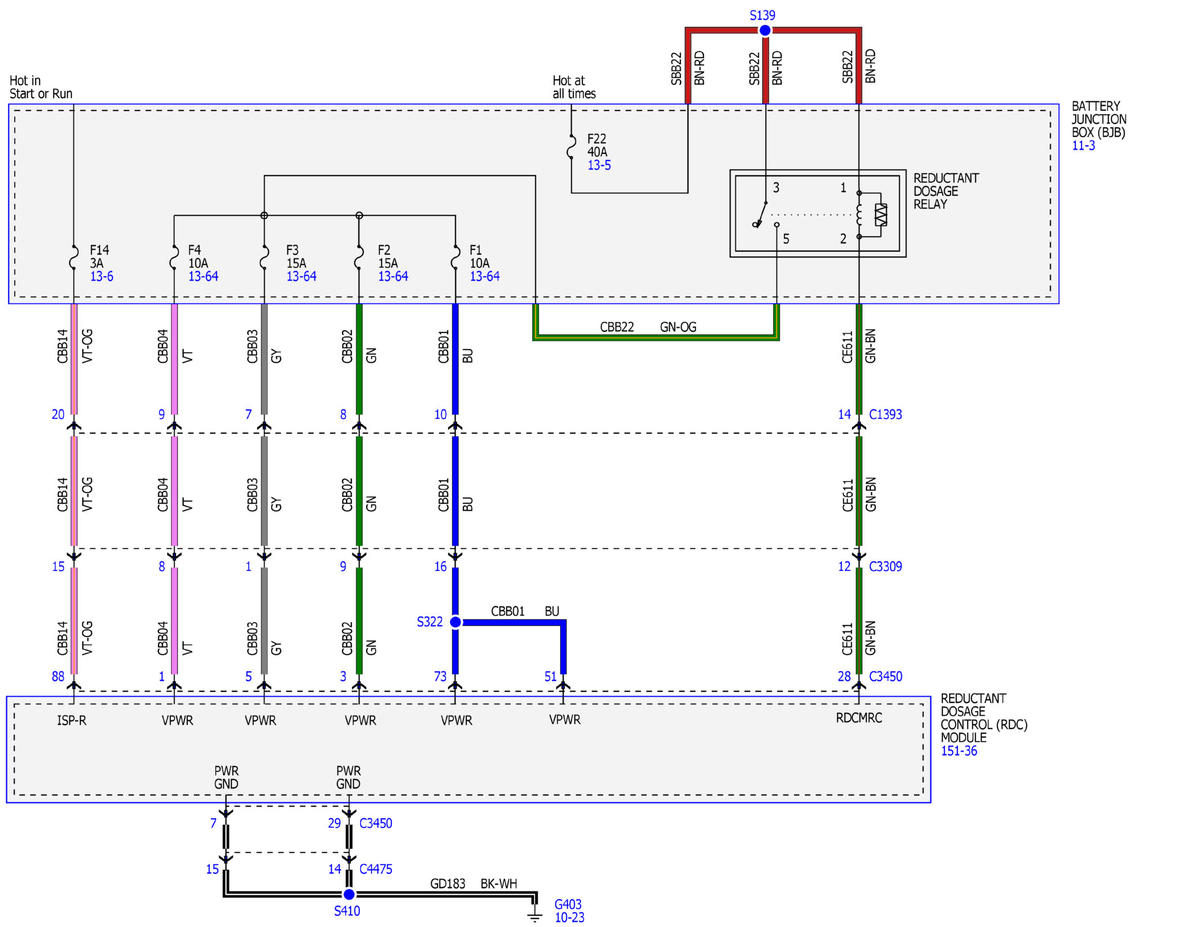

Fig 8: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (8 of 22)

GFDWR21726

Courtesy of FORD MOTOR COMPANY

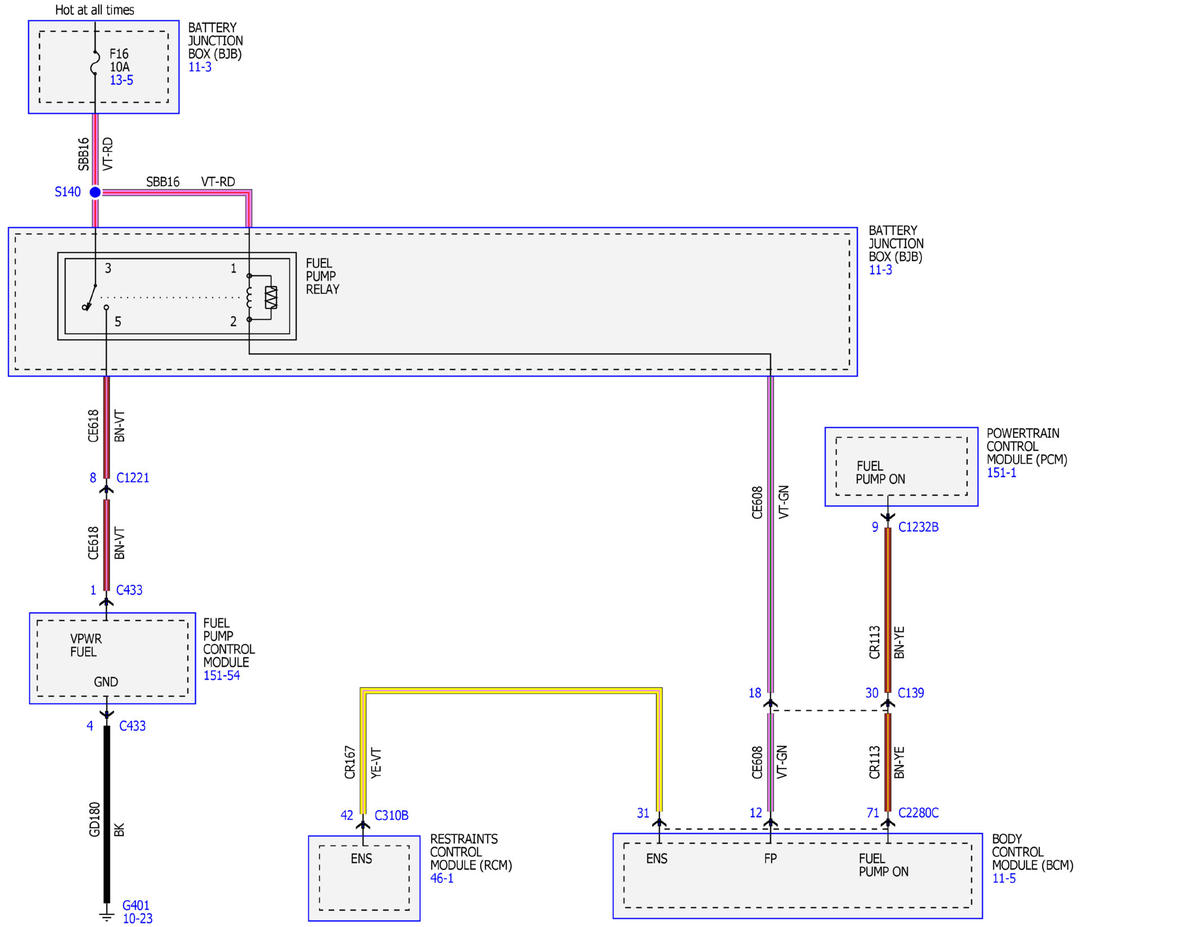

Fig 9: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (9 of 22)

GFDWR21727

Courtesy of FORD MOTOR COMPANY

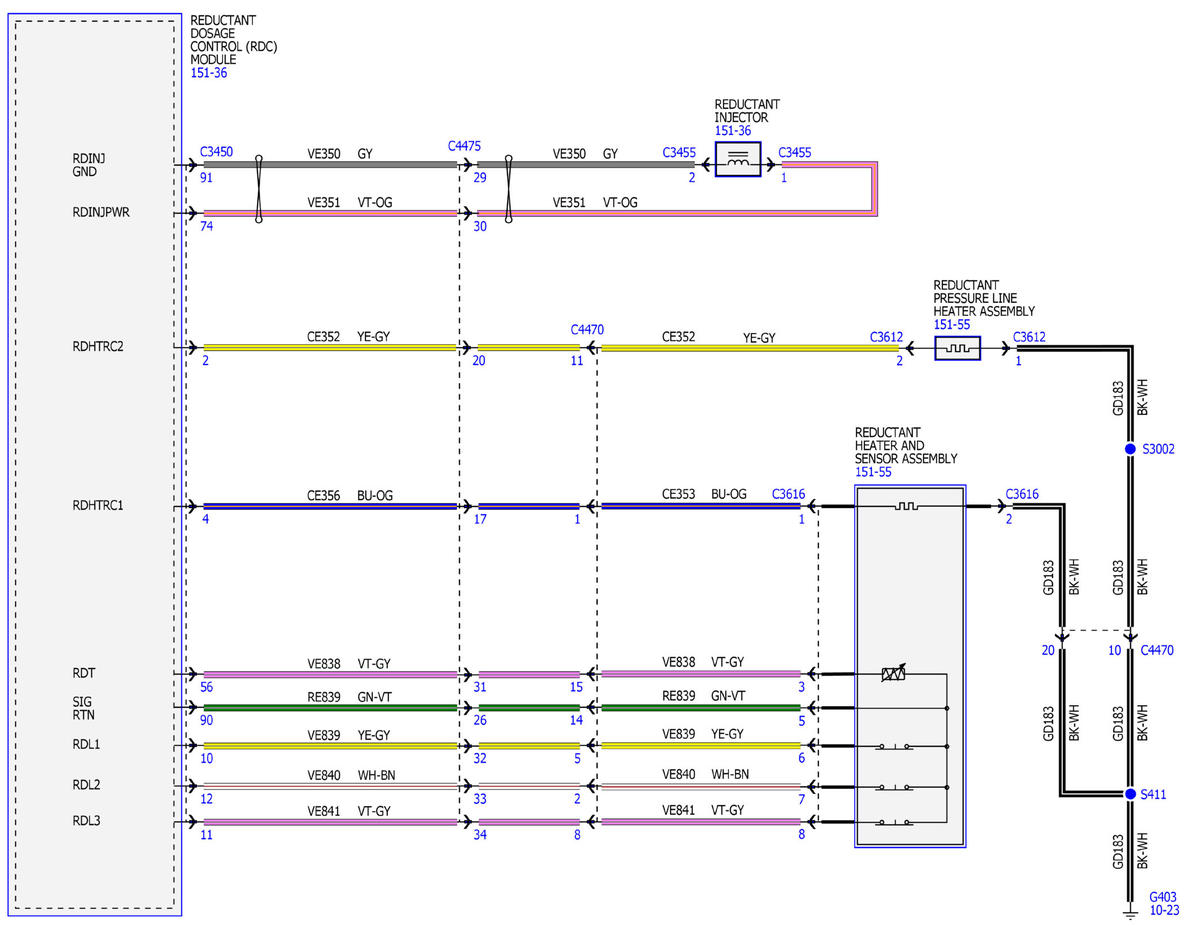

Fig 10: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (10 of 22)

GFDWR21728

Courtesy of FORD MOTOR COMPANY

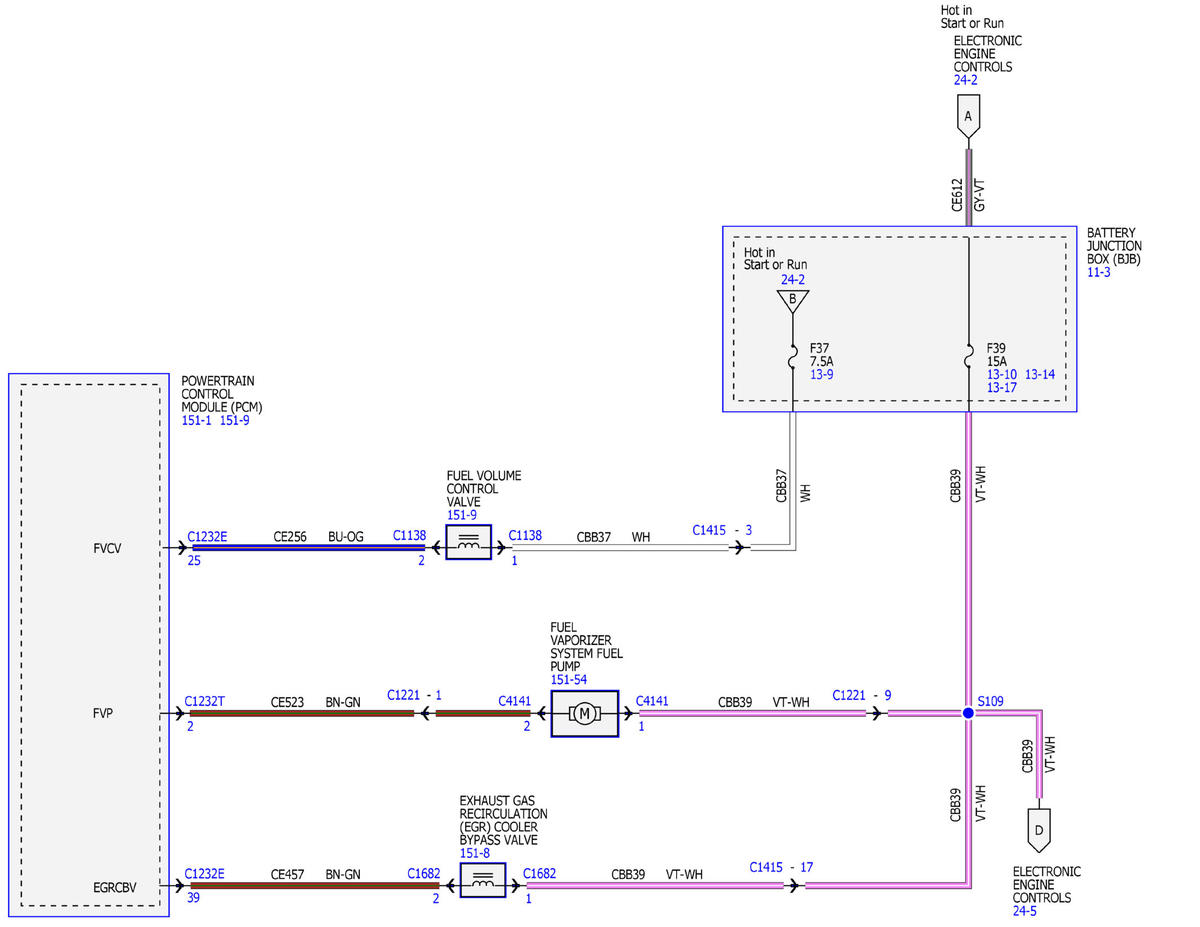

Fig 11: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (11 of 22)

GFDWR21729

Courtesy of FORD MOTOR COMPANY

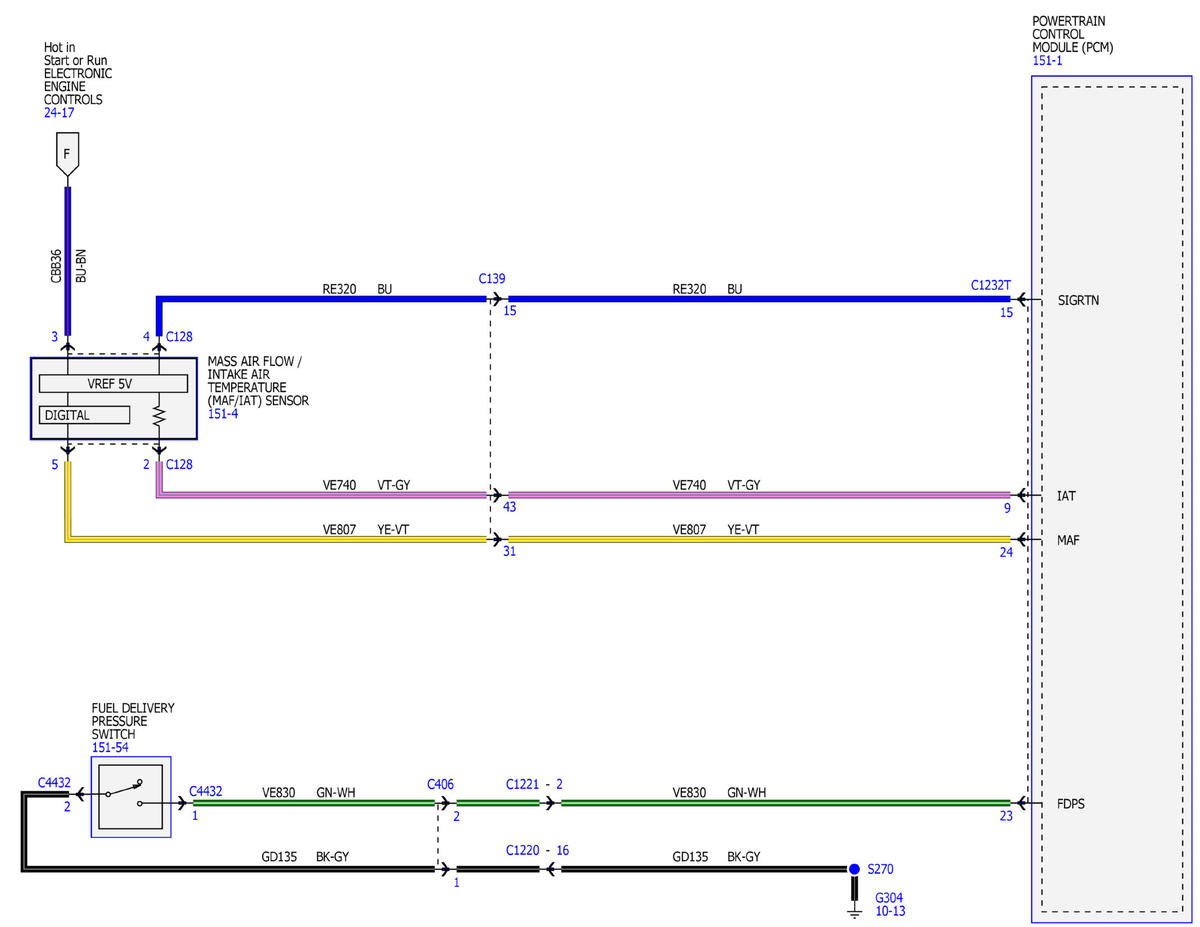

Fig 12: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (12 of 22)

GFDWR21730

Courtesy of FORD MOTOR COMPANY

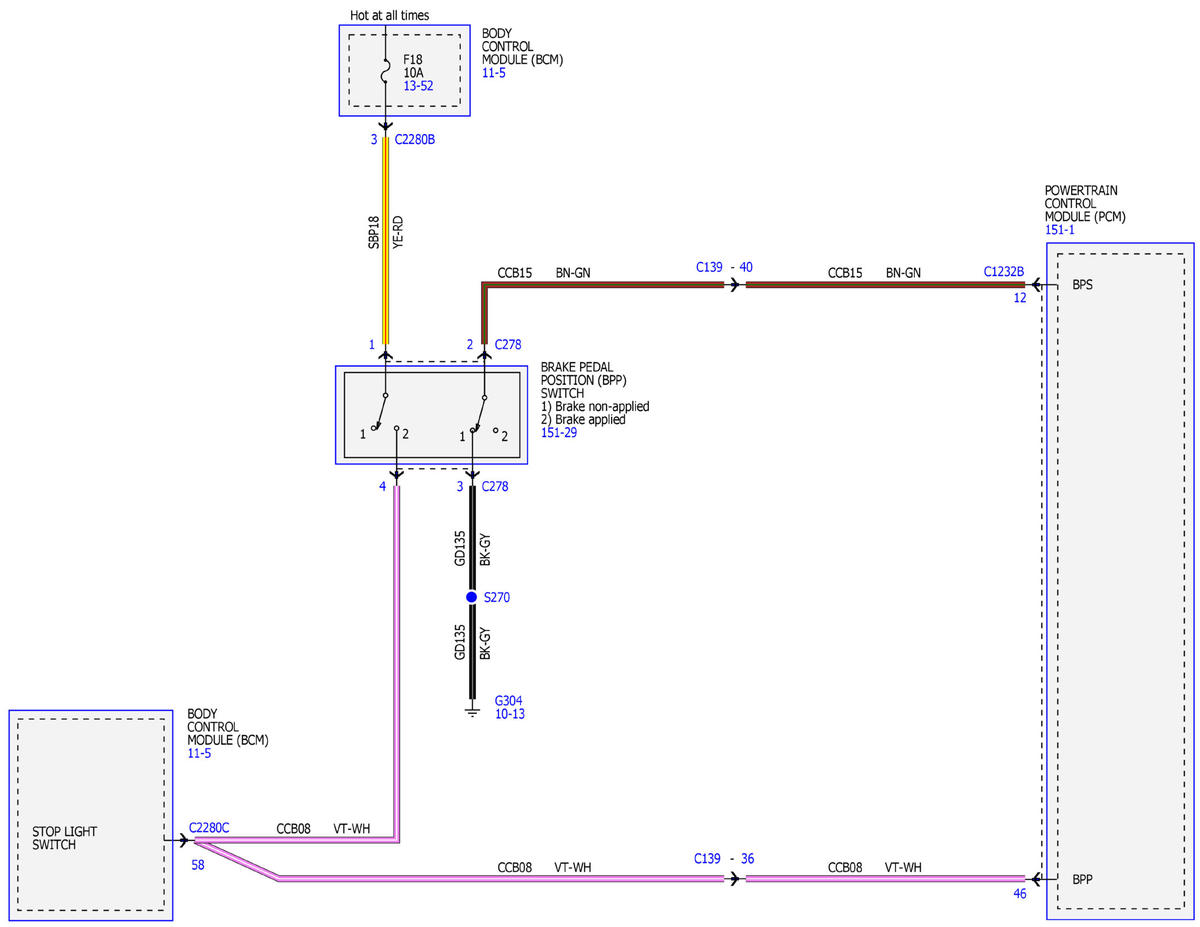

Fig 13: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (13 of 22)

GFDWR21731

Courtesy of FORD MOTOR COMPANY

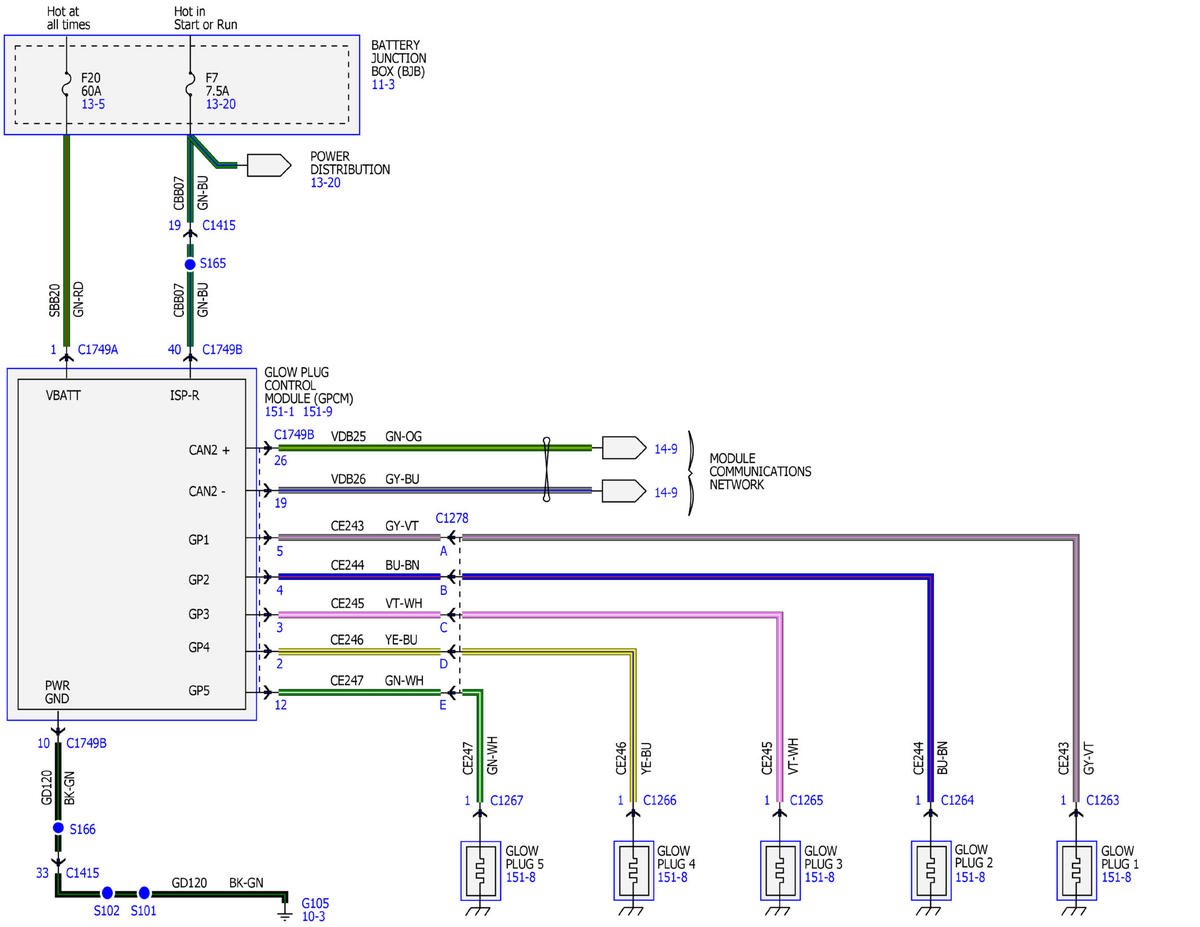

Fig 14: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (14 of 22)

GFDWR21732

Courtesy of FORD MOTOR COMPANY

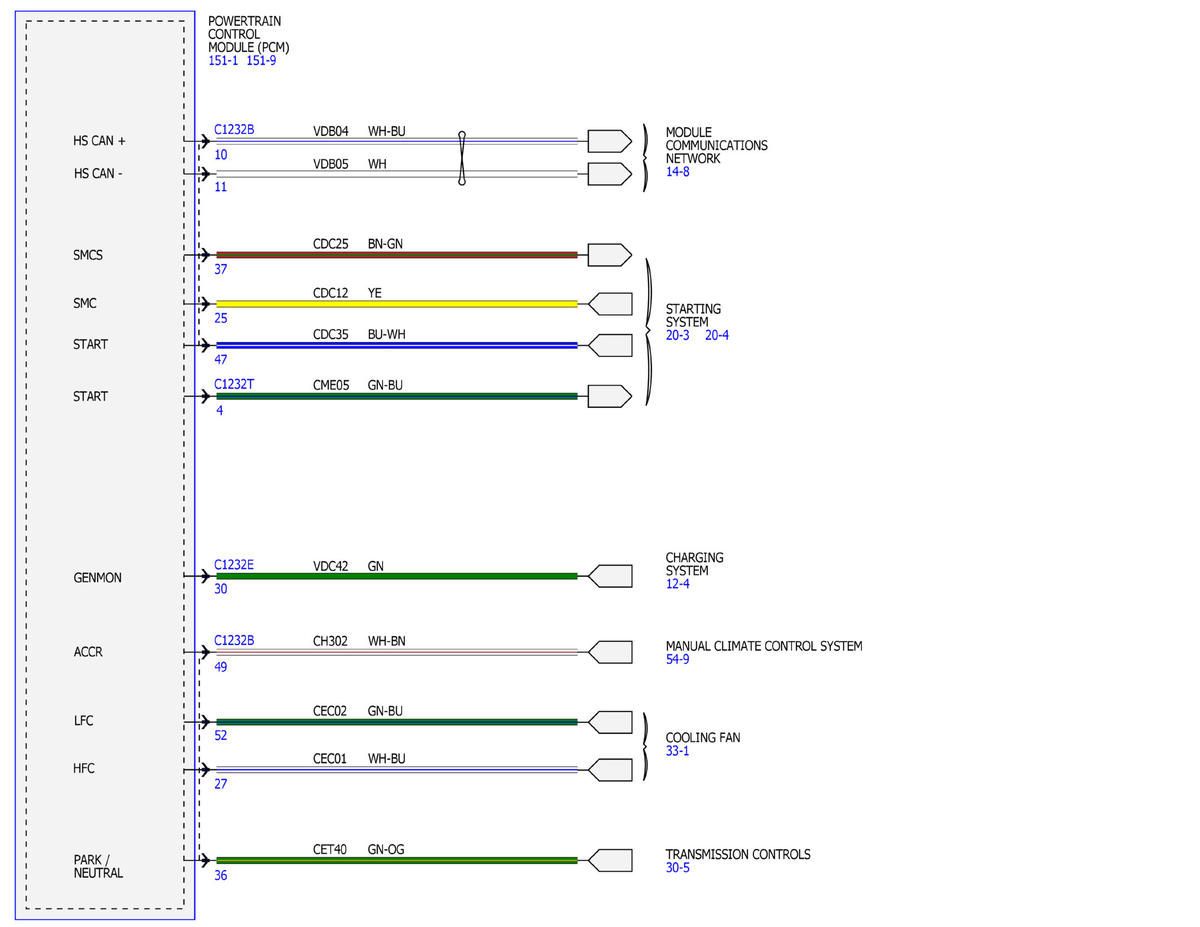

Fig 15: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (15 of 22)

GFDWR21733

Courtesy of FORD MOTOR COMPANY

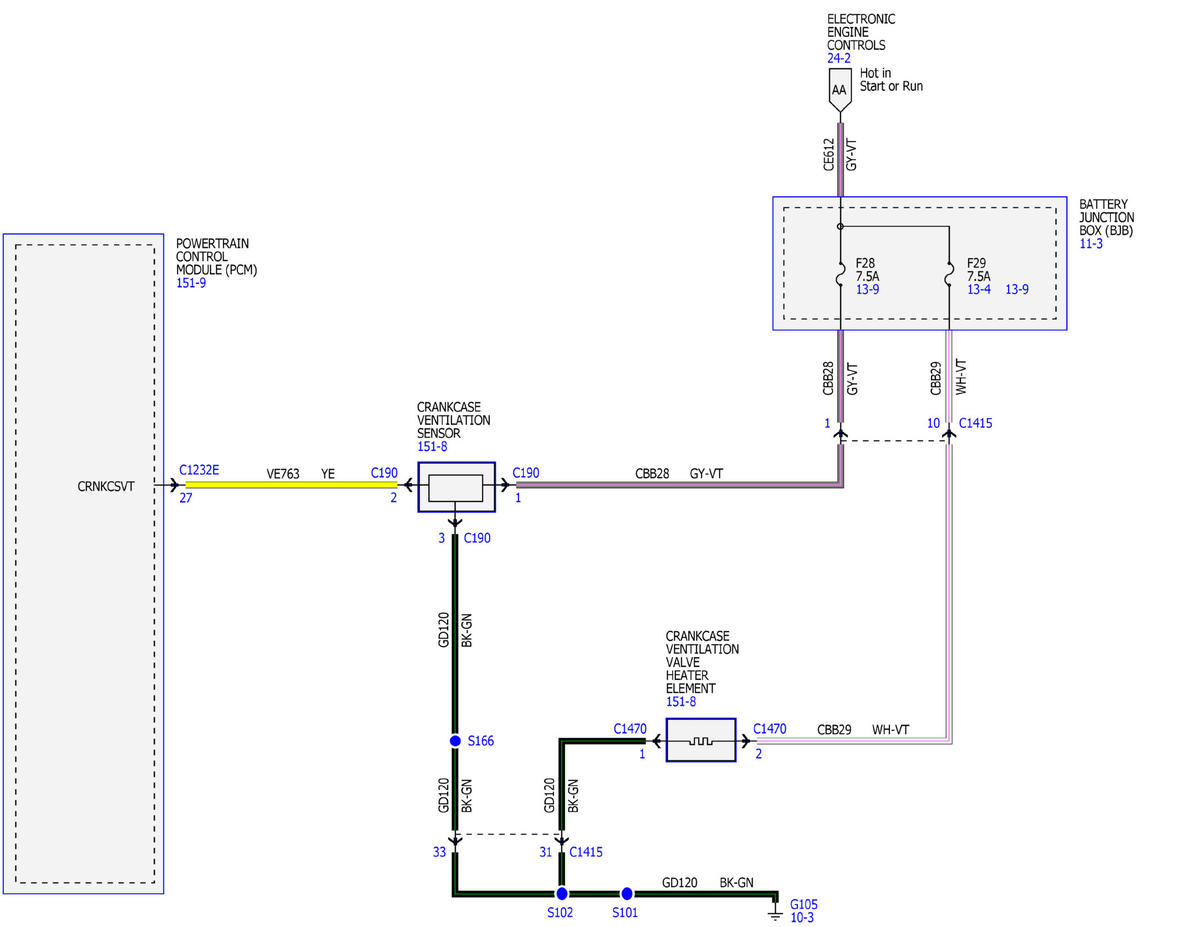

Fig 16: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (16 of 22)

GFDWR21734

Courtesy of FORD MOTOR COMPANY

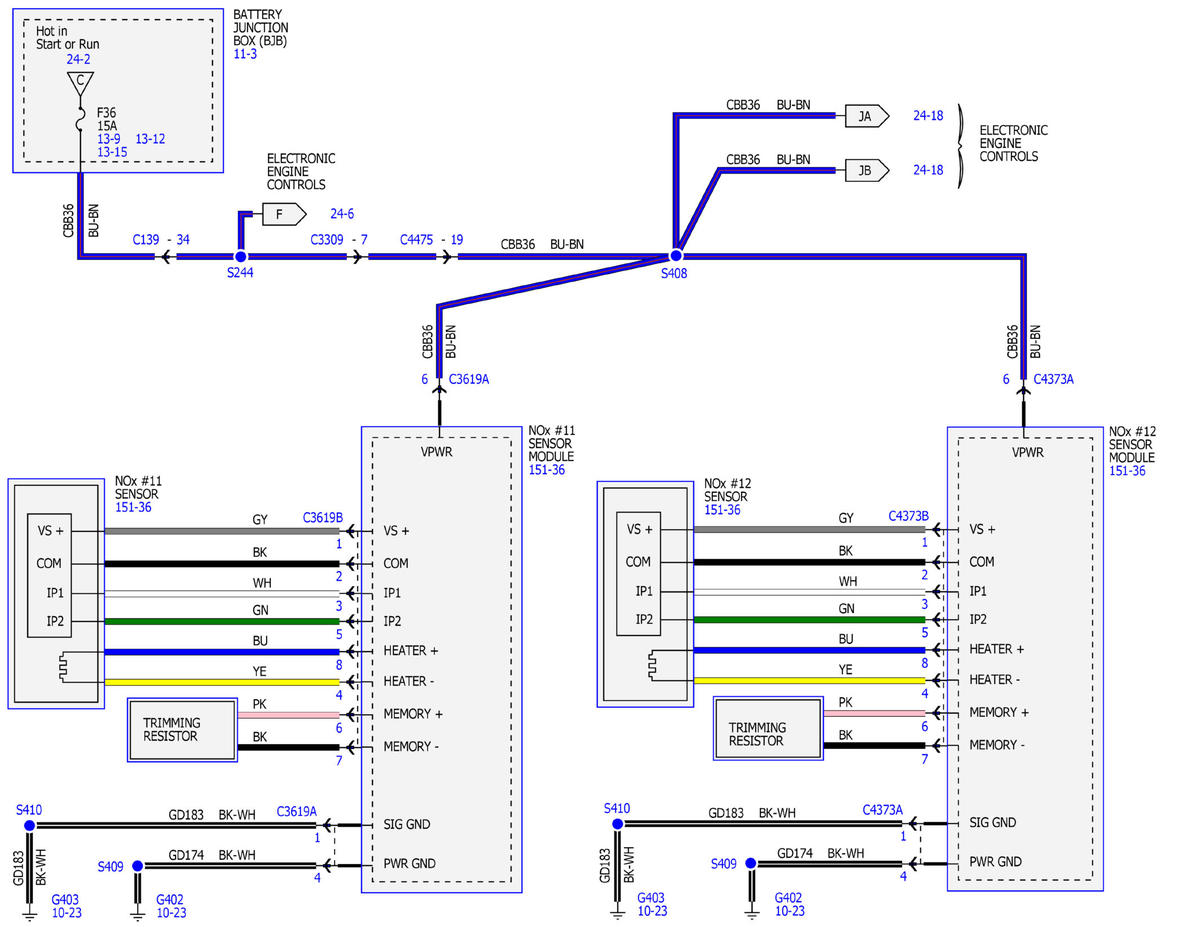

Fig 17: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (17 of 22)

GFDWR21735

Courtesy of FORD MOTOR COMPANY

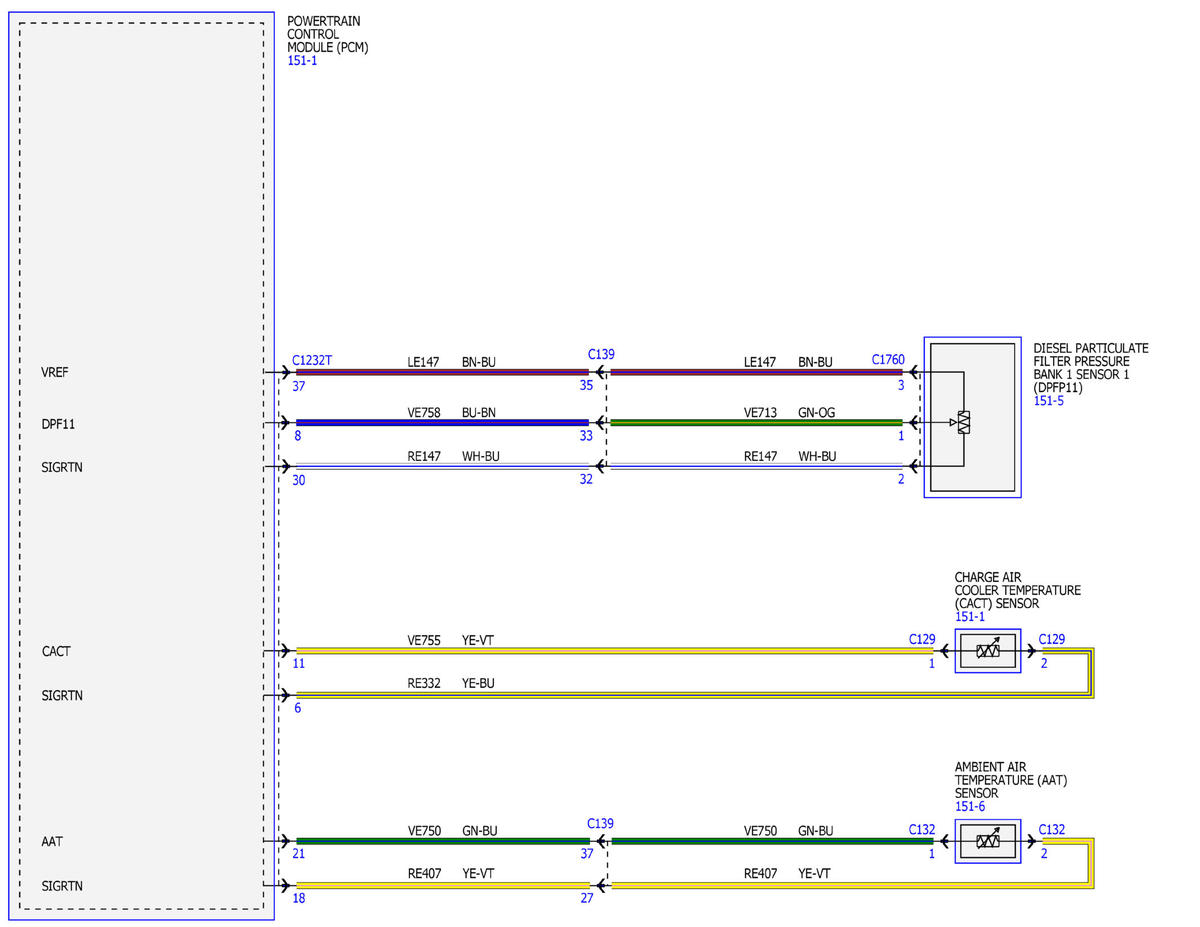

Fig 18: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (18 of 22)

GFDWR21736

Courtesy of FORD MOTOR COMPANY

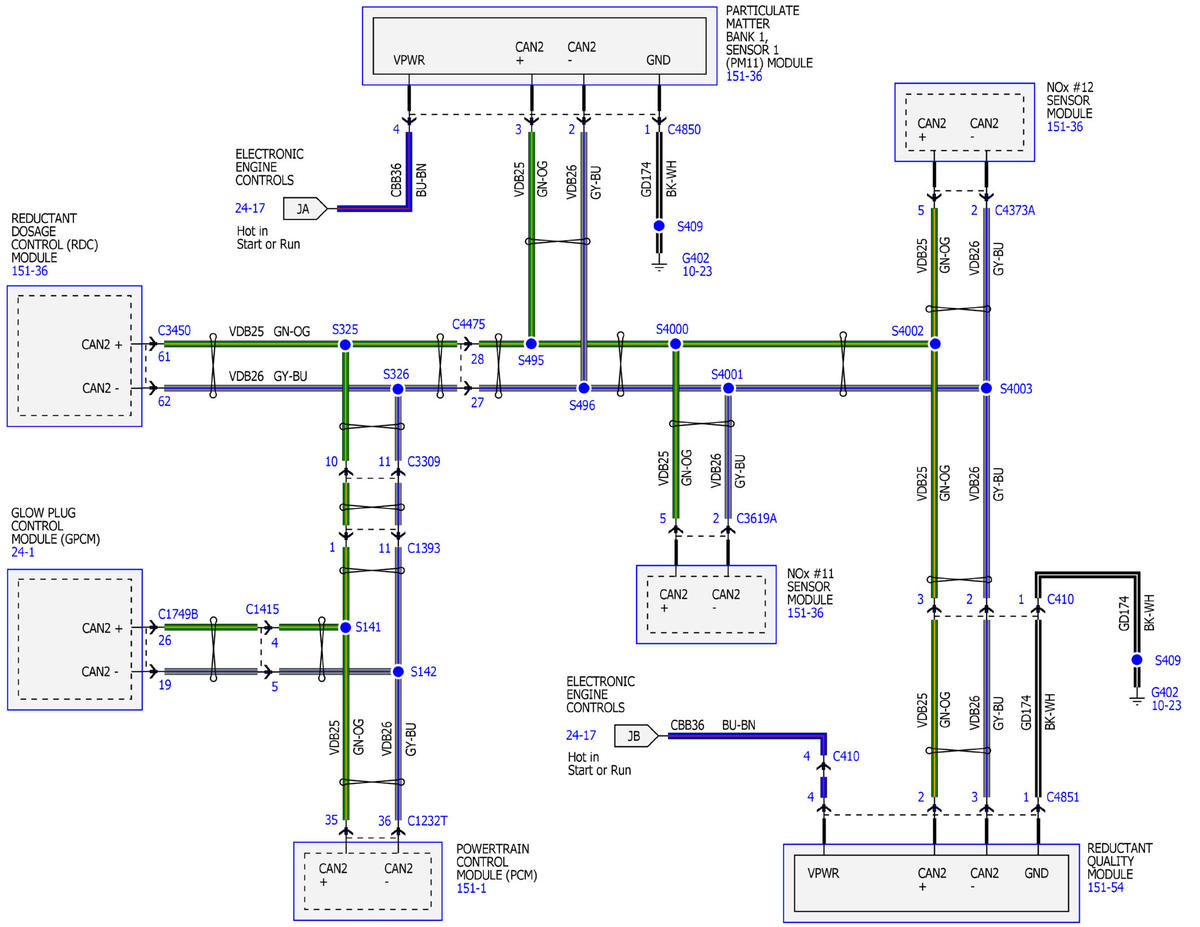

Fig 19: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (19 of 22)

GFDWR21737

Courtesy of FORD MOTOR COMPANY

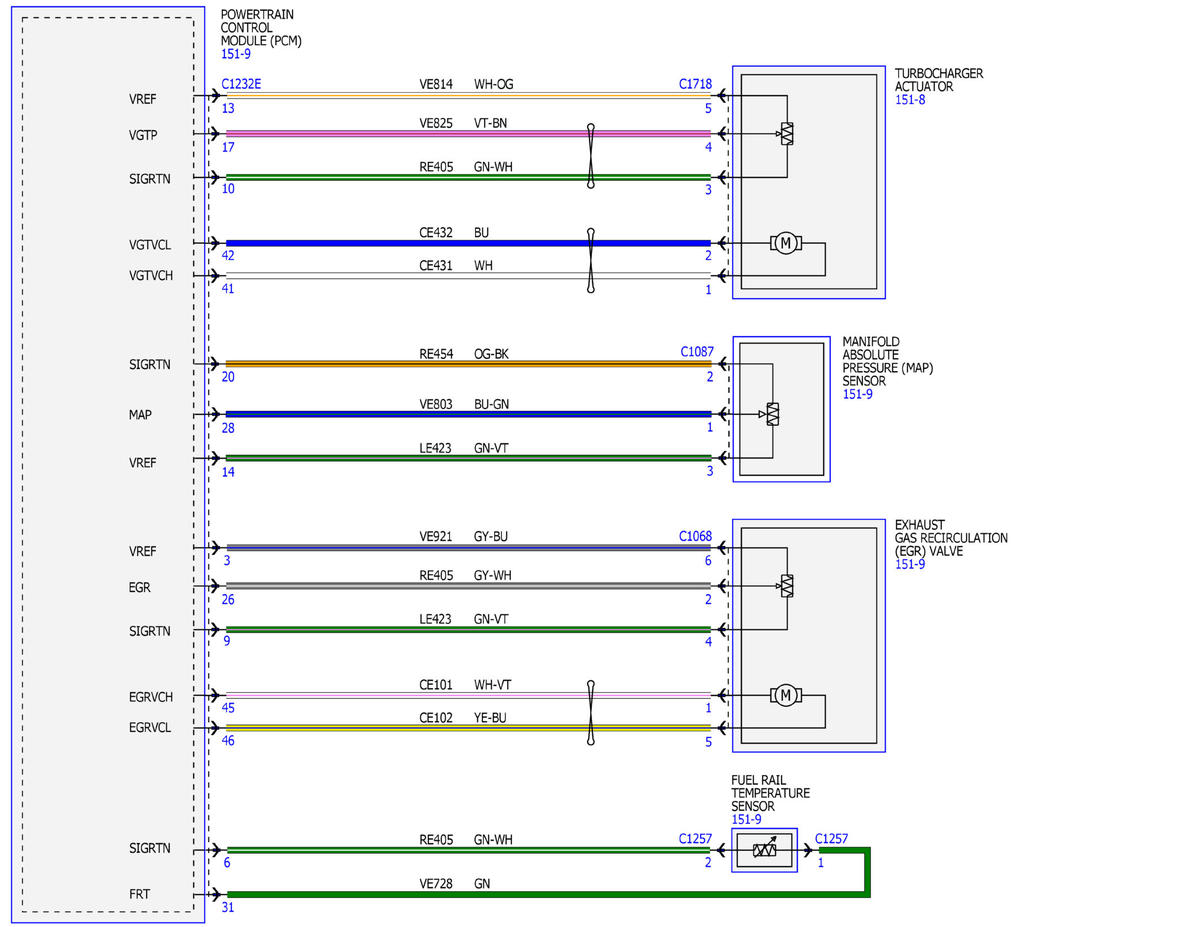

Fig 20: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (20 of 22)

GFDWR21738

Courtesy of FORD MOTOR COMPANY

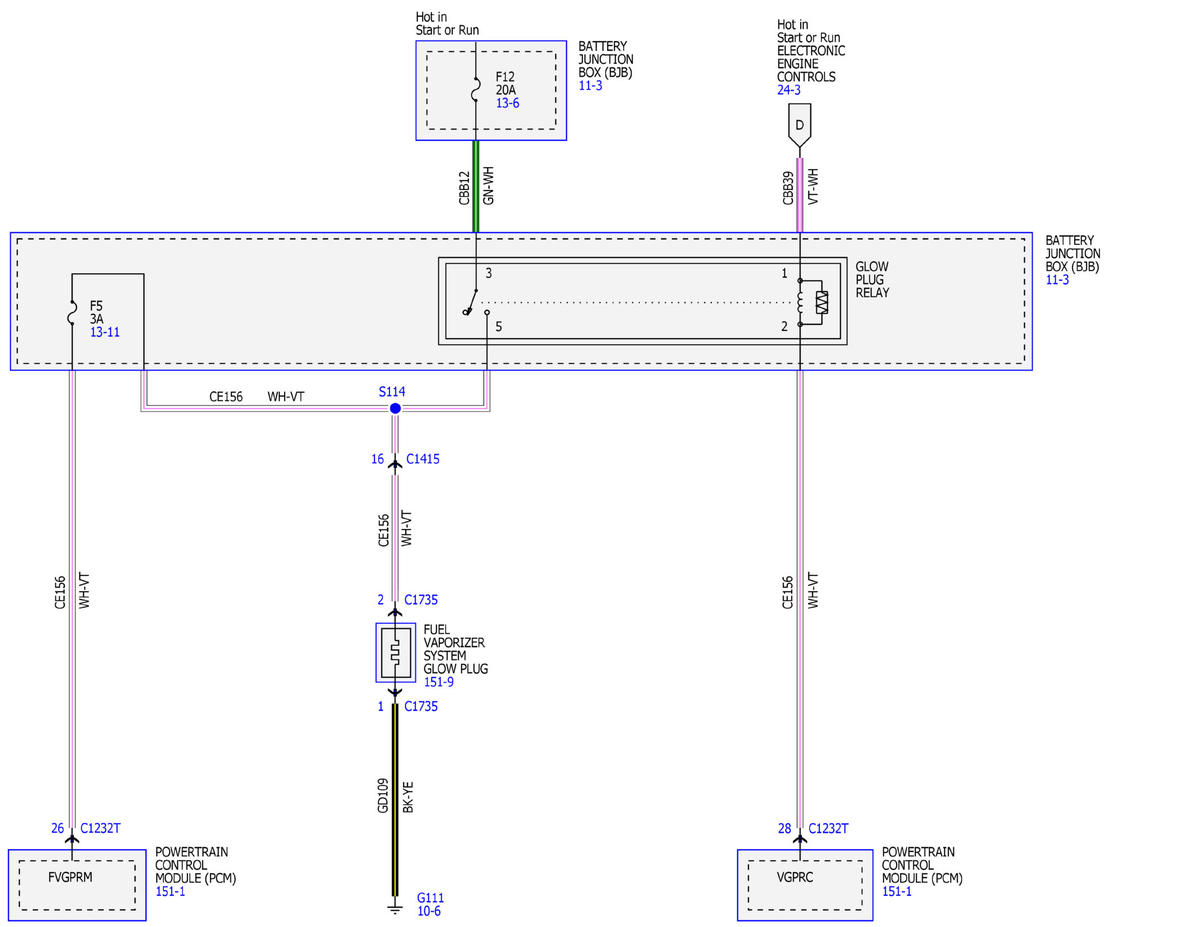

Fig 21: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (21 of 22)

GFDWR21739

Courtesy of FORD MOTOR COMPANY

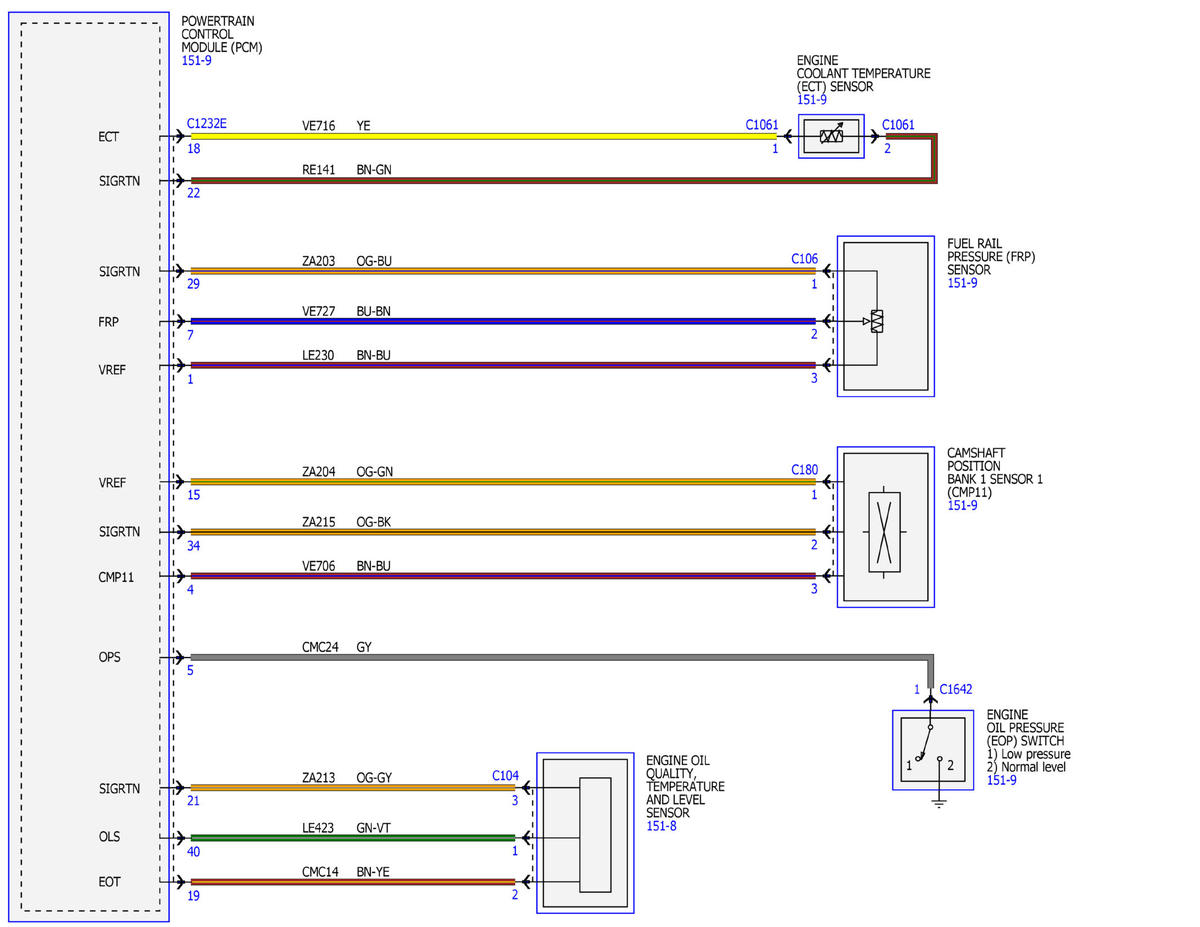

Fig 22: Electronic Engine Controls - 3.2L Diesel Wiring Diagram (22 of 22)

GFDWR21740

Courtesy of FORD MOTOR COMPANY
