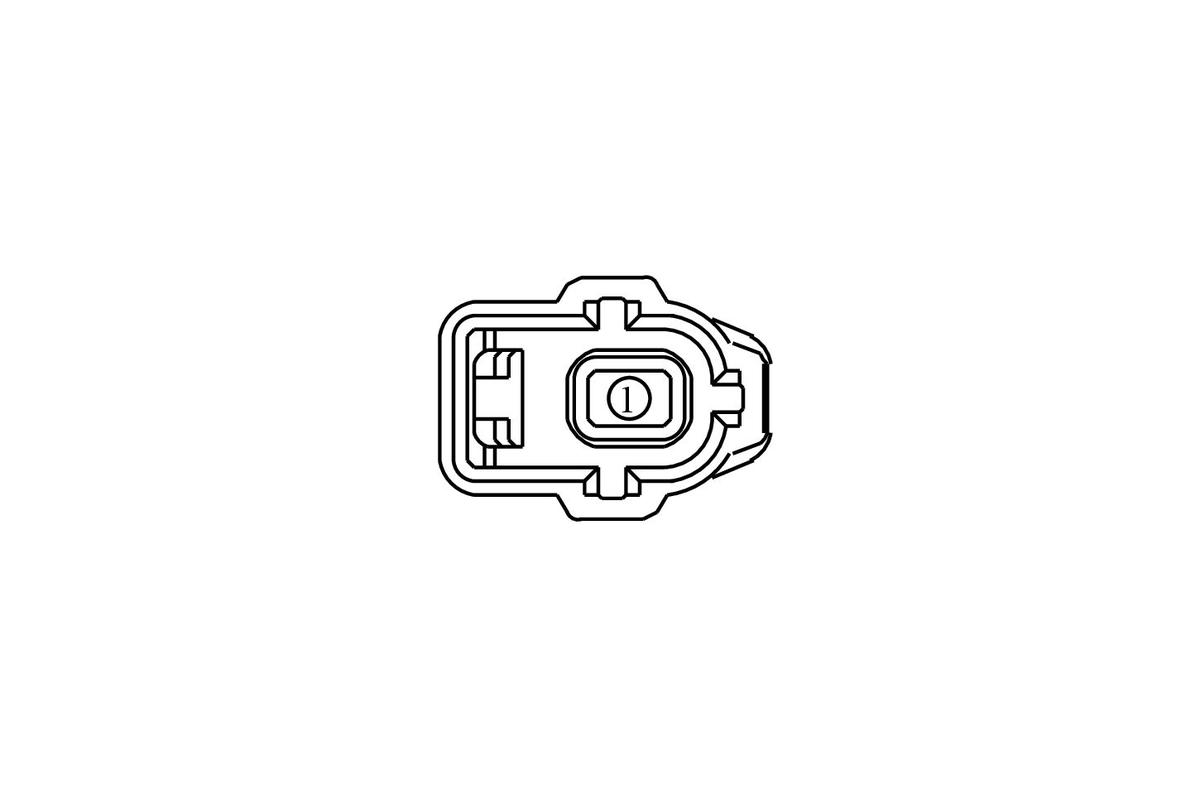

Connector End View (C1642) - ENGINE OIL PRESSURE (EOP) SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1642 | ENGINE OIL PRESSURE (EOP) SWITCH | BK | 12B637 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 98AG-14474-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMC24 (GY) | 18 | SWITCH - OIL PRESSURE (OPS) | 98AG-14474-AA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-439
Service Part Number:
3U2Z-14S411-MHA
Gauge:
14
Pin material:
Tin
Cavities:
1
Vehicle Uses:
- Sensor - Oil Pressure
- Switch - Oil Sending Unit
