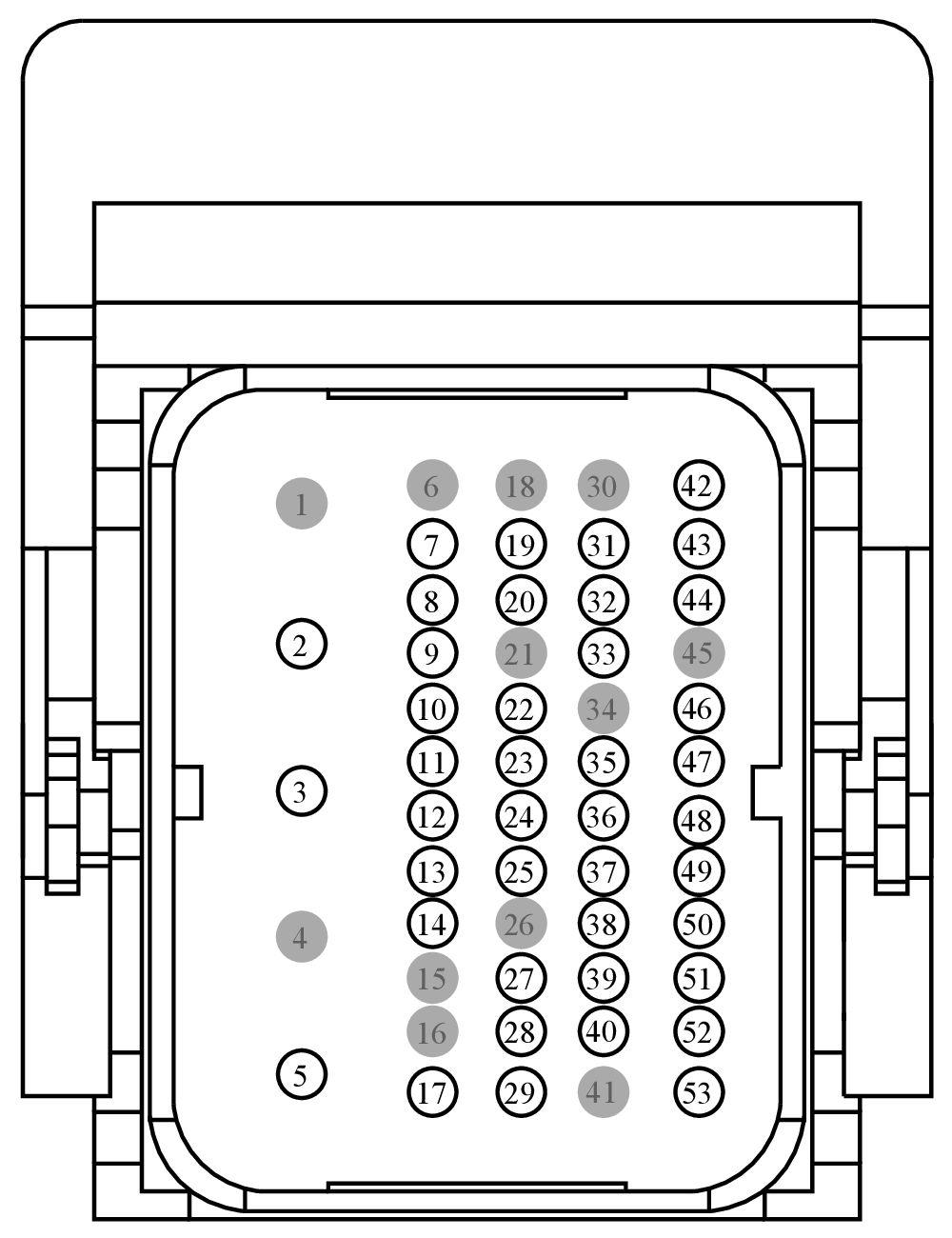

Connector End View (C1232B) - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1232B	POWERTRAIN CONTROL MODULE (PCM)	9K499			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6C1T-14474-DAA	Not Available
97BG-14474-BFA	DU2Z-14474-FA	2.8
8N5N-14474-AA	HU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	GD120 (BK-GN)	14	GROUND - FENDER FRONT LEFT (PWRGND)	97BG-14474-BFA
3	GD120 (BK-GN)	14	GROUND - FENDER FRONT LEFT (PWRGND)	97BG-14474-BFA
4	*	*	Not Used	N/A
5	CBB35 (YE-GY)	14	FUSE - 35 OR CIRCUIT BREAKER (VPWR)	97BG-14474-BFA
6	*	*	Not Used	N/A
7	GD121 (BK-YE)	18	GROUND - FENDER FRONT LEFT (PWRGND)	8N5N-14474-AA
8	VE771 (BN-VT)	20	SENSOR - EXHAUST GAS TEMPERATURE 13 (EGT13)	8N5N-14474-AA
9	CR113 (BN-YE)	20	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS	8N5N-14474-AA
10	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	8N5N-14474-AA
11	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	8N5N-14474-AA
12	CCB15 (BN-GN)	20	SWITCH - BRAKE ON/OFF (BOO) NORMAL CLOSED (BPS)	8N5N-14474-AA
13	RE136 (VT-GN)	18	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1)	8N5N-14474-AA
14	VE225 (YE-OG)	20	FUEL PUMP COMMAND (FPC)	8N5N-14474-AA
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CBB35 (YE-GY)	14	FUSE - 35 OR CIRCUIT BREAKER (VPWR)	6C1T-14474-DAA
18	*	*	Not Used	N/A
19	VE702 (BU-WH)	18	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)	8N5N-14474-AA
20	VE701 (YE-OG)	18	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)	8N5N-14474-AA
21	*	*	Not Used	N/A
22	RE137 (YE-GN)	18	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2)	8N5N-14474-AA
23	RH108 (BN)	18	CTRL MOD. - SENSOR REFRIGERANT PRESSURE (SIGRTN)	8N5N-14474-AA
24	RE327 (GY-VT)	20	CTRL MOD. - POWERTRAIN # POWER TAKE OFF RETURN (PTO_GND)	8N5N-14474-AA
25	CDC12 (YE)	18	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)	8N5N-14474-AA
26	*	*	Not Used	N/A
27	CEC01 (WH-BU)	18	CTRL MOD. - COOLING FAN CONTROL HIGH (HFC)	8N5N-14474-AA
28	CE436 (VT-OG)	20	CTRL MOD. -WAKE UP PCM	8N5N-14474-AA
29	CBB35 (YE-GY)	14	FUSE - 35 OR CIRCUIT BREAKER (VPWR)	6C1T-14474-DAA
30	*	*	Not Used	N/A
31	VE823 (BU-BN)	20	SENSOR - WATER IN FUEL (WIF)	8N5N-14474-AA
32	VH433 (VT-OG)	18	TRANSDUCER - A/C PRESSURE (ACPT)	8N5N-14474-AA
33	CE913 (BU)	20	SWITCH - POWER TAKE OFF IDLE CONTROL 1 (PTOIC)	8N5N-14474-AA
34	*	*	Not Used	N/A
35	RE823 (GY-YE)	20	SIGNAL RETURN (SIGRTN)	8N5N-14474-AA
36	CET40 (GN-OG)	20	SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN)	8N5N-14474-AA
37	CDC25 (BN-GN)	18	RELAY - STARTER (SMCS)	8N5N-14474-AA
38	LE136 (GN-OG)	18	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1)	8N5N-14474-AA
39	CBB07 (GN-BU)	18	FUSE - 7 OR CIRCUIT BREAKER (ISP-R)	8N5N-14474-AA
40	VMC02 (BU-OG)	20	CTRL MOD. - POWERTRAIN # CLEAN TACHOMETER OUTPUT (CTO)	8N5N-14474-AA
41	*	*	Not Used	N/A
42	GD120 (BK-GN)	14	GROUND - FENDER FRONT LEFT (PWRGND)	6C1T-14474-DAA
43	VE925 (GN-WH)	20	SWITCH - POWER TAKE OFF RPM ADJUST (PTO_RPM)	8N5N-14474-AA
44	LE137 (BU-GY)	18	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2)	8N5N-14474-AA
45	*	*	Not Used	N/A
46	CCB08 (VT-WH)	20	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN (BPP)	8N5N-14474-AA
47	CDC35 (BU-WH)	18	SWITCH - IGNITION # START	8N5N-14474-AA
48	CE302 (YE-BU)	20	CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC)	8N5N-14474-AA
49	CH302 (WH-BN)	18	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)	8N5N-14474-AA
50	LH108 (GY-BN)	18	CTRL MOD. - SENSOR REFRIGERANT PRESSURE (VREF)	8N5N-14474-AA
51	LE434 (WH-BN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE POWER TAKE OFF (PTO_VREF)	8N5N-14474-AA
52	CEC02 (GN-BU)	18	CTRL MOD. - COOLING FAN CONTROL LOW (LFC)	8N5N-14474-AA
53	GD120 (BK-GN)	14	GROUND - FENDER FRONT LEFT (PWRGND)	6C1T-14474-DAA
