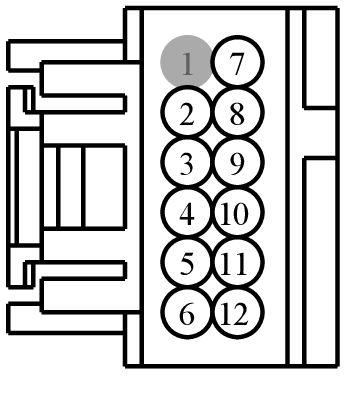

Connector End View (C2810) - SELECTOR LEVER ASSEMBLY
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2810 | SELECTOR LEVER ASSEMBLY | GY | 14K024 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | CB131 (BU-OG) | 20 | FUSE - 31 OR CIRCUIT BREAKER | 9U5T-14474-MA | ||||
| 3 | CET34 (BN-GN) | 20 | SWITCH - TOW MODE CONTROL (TOWS) | 9U5T-14474-MA | ||||
| 4 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | 9U5T-14474-MA | ||||
| 5 | CET43 (GY) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST-U) | 9U5T-14474-MA | ||||
| 6 | CET42 (GN-VT) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST-D) | 9U5T-14474-MA | ||||
| 7 | CLN17 (BN) | 20 | SWITCH - IP/SWITCH ILLUMINATION | 9U5T-14474-MA | ||||
| 8 | GD184 (BK-GY) | 20 | GROUND - CROSS CAR BEAM # 4TH POINT | 9U5T-14474-MA | ||||
| 9 | CET22 (GY-BN) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE OUTPUT PARK (TRO-P) | 9U5T-14474-MA | ||||
| 10 | CDC41 (WH-BN) | 20 | SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) | 9U5T-14474-MA | ||||
| 11 | GD115 (BK-GY) | 20 | GROUND - CROSS CAR BEAM # 2ND POINT | 9U5T-14474-MA | ||||
| 12 | CET53 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK | 9U5T-14474-MA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-949
Service Part Number:
3U2Z-14S411-BMAB
Gauge:
18
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Control - Navigation Display
- Module - Driver Door
- Module - Front Interface
- Monitor - Video/DVD
- Switch - Gear Shift Select/Neutral Safety
