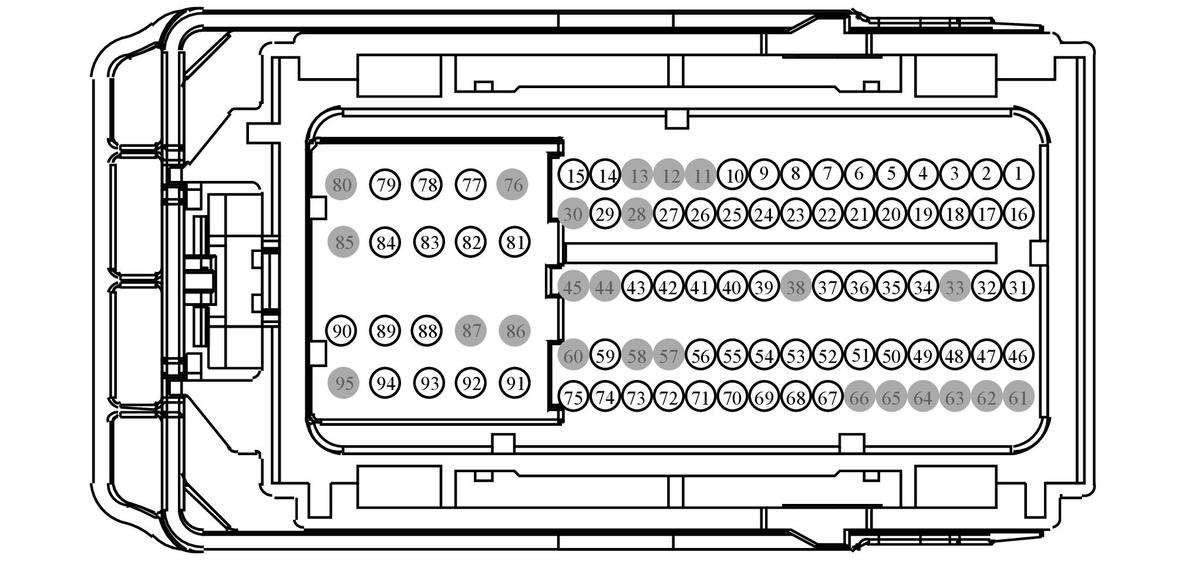

Connector End View (C175E) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175E POWERTRAIN CONTROL MODULE (PCM) 12C508 part# N/A Not Available
GFDWR20988Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE205 (GN-BU) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ1) NA
2 CE208 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ4) NA
3 CE206 (GY-YE) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2) NA
4 CE422 (WH-OG) 20 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 2 (VCT12) NA
5 CE421 (VT) 20 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 1 (VCT11) NA
6 CE443 (BN-VT) 20 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 2 (VCT22) NA
7 CE442 (YE-GY) 20 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 1 (VCT21) NA
8 LE134 (YE) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) NA
9 VE819 (GN-VT) 20 SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) NA
10 VE818 (BN) 20 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) NA
11 * * Not Used N/A
12 * * Not Used N/A
13 * * Not Used N/A
14 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (TCC) NA
15 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (LPC) NA
16 CE209 (BN) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ5) NA
17 LE111 (VT-GN) 18 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) NA
18 CBK01 (BU) 18 RELAY - FUEL PUMP # 2 (VPWR) NA
19 CET22 (GY-BN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE OUTPUT PARK (TRO-P) NA
20 LE449 (VT-GN) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11) NA
21 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UO2SGREF21) NA
22 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) NA
23 RE134 (BU-OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) NA
24 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) NA
25 RET33 (WH-VT) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) - NA
26 RET04 (YE-OG) 20 CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) NA
27 VE740 (VT-GY) 18 SENSOR - INTAKE AIR TEMPERATURE (IAT) NA
28 * * Not Used N/A
29 RE405 (GN-WH) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) NA
30 * * Not Used N/A
31 CE207 (VT-GY) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3) NA
32 VE803 (BU-GN) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) NA
33 * * Not Used N/A
34 LE458 (BU-WH) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF) NA
35 LE450 (WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) NA
36 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SPC21) NA
37 VET32 (VT) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TRP) NA
38 * * Not Used N/A
39 DE135 (BK) 18 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) D NA
40 RE429 (GY-OG) 20 CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (SIGRTN) NA
41 VE707 (GN-VT) 20 SENSOR - CAMSHAFT POSITION BANK 2 SOLENOID 1 (CMP21) NA
42 VE738 (YE-BU) 18 SENSOR - CAMSHAFT POSITION BANK 2 EX (CMP21) NA
43 CET21 (GN-WH) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE OUTPUT NEUTRAL (TRO-N) NA
44 * * Not Used N/A
45 * * Not Used N/A
46 CE210 (GN-WH) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ6) NA
47 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) NA
48 CMC24 (GY) 18 SWITCH - OIL PRESSURE (OPS) NA
49 RE454 (YE-GN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) NA
50 VE827 (WH-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) NA
51 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 2ND OR UNIQUE (UO2S21) NA
52 RE323 (WH-BN) 18 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-) NA
53 VE801 (VT-OG) 18 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) NA
54 RE429 (GY-OG) 20 CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (SIGRTN) NA
55 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 SOLENOID 1 (CMP11) NA
56 VE736 (WH-GN) 18 SENSOR - CAMSHAFT POSITION BANK 1 EX (CMP11) NA
57 * * Not Used N/A
58 * * Not Used N/A
59 CET21 (GN-WH) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE OUTPUT NEUTRAL (TRO-N) N/A
60 * * Not Used N/A
61 * * Not Used N/A
62 * * Not Used N/A
63 * * Not Used N/A
64 * * Not Used N/A
65 * * Not Used N/A
66 * * Not Used N/A
67 RE324 (BN-GN) 18 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2-) NA
68 VE802 (BN-BU) 18 SENSOR - KNOCK 2ND (KS2+) NA
69 RE135 (GN-BN) 18 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP-) NA
70 VE711 (YE-VT) 18 SENSOR - CRANKSHAFT POSITION (CKP) NA
71 CE113 (WH-BN) 20 CTRL MOD. - POWERTRAIN # EVAPORATIVE EMISSION (EVAP) PURGE VALVE (EVAPCP) NA
72 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSD) NA
73 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSC) NA
74 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSB) NA
75 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSA) NA
76 * * Not Used N/A
77 CET16 (WH-BU) 18 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL (SSE) NA
78 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) NA
79 CE236 (GY-VT) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (UO2SHTR11) NA
80 * * Not Used N/A
81 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) NA
82 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) NA
83 CE234 (BU-WH) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) NA
84 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND OR UNIQUE (UO2SHTR21) NA
85 * * Not Used N/A
86 * * Not Used N/A
87 * * Not Used N/A
88 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3E) NA
89 CE306 (GN-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4B) NA
90 CE307 (WH-BN) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP5D) NA
91 CET25 (BU-GN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) NA
92 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2C) NA
93 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) NA
94 CE308 (VT-BN) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP6F) NA
95 * * Not Used N/A
