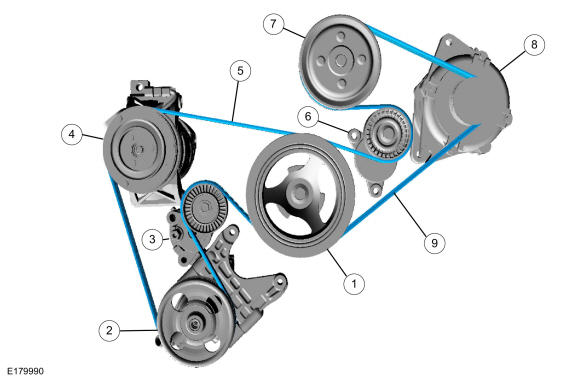

Accessory Drive - Component Location
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
| Item |
Description |
| 1 |
Crankshaft belt pulley |
| 2 |
Power steering pump pulley |
| 3 |
Air conditioning (A/C) compressor belt tensioner |
| 4 |
Pulley - A/C compressor |
| 5 |
Air conditioning (A/C) compressor belt |
| 6 |
Accessory drive belt tensioner |
| 7 |
Coolant pump pulley |
| 8 |
Generator |
| 9 |
Accessory drive belt |
