Fuel Lines: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. With vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
    1. Release the fuel lines routing retainers.
    2. Disconnect the quick release couplings and position fuel lines aside. Refer to: Quick Release Coupling .

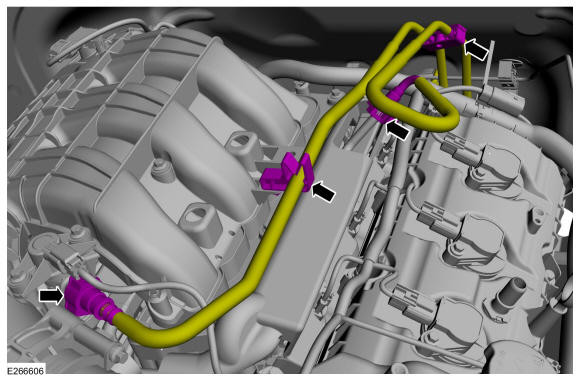

    GFD311078Courtesy of FORD MOTOR COMPANY
  4. Disconnect the quick release coupling.

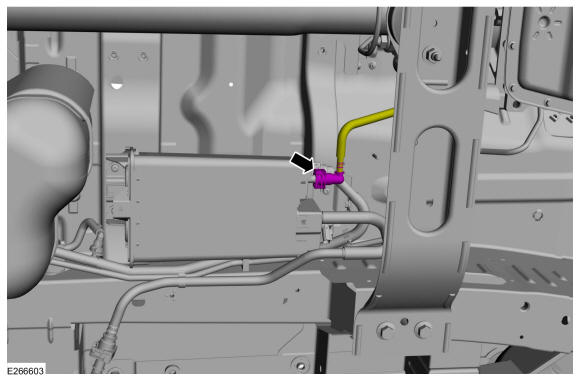

    GFD311079Courtesy of FORD MOTOR COMPANY
    • NOTE: Vehicle body removed for art clarity.
      NOTE: The fuel feed line should be removed from the bottom of the vehicle.

      Disconnect the quick release coupling. Refer to: Quick Release Coupling .

    • Release the retainers and remove the fuel lines.

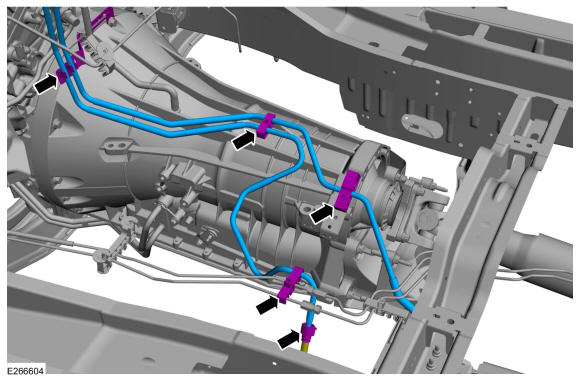

GFD311080Courtesy of FORD MOTOR COMPANY
