Fuel Level Sender: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .

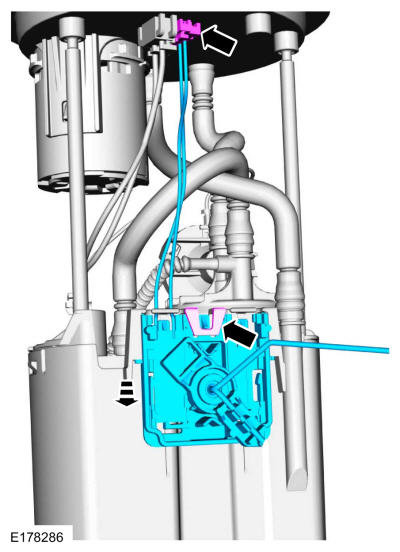

  2. Disconnect the fuel level sender electrical connector, release the retainer and remove the fuel level sender.
GFD311058Courtesy of FORD MOTOR COMPANY
