Ignition Coil-On-Plug: Installation

WARNING: This page is about a different variant/trim than selected.

Both sides

Replace any ignition coil-on-plug rubber boots with cracks, rips or tears.

Courtesy of FORD MOTOR COMPANY

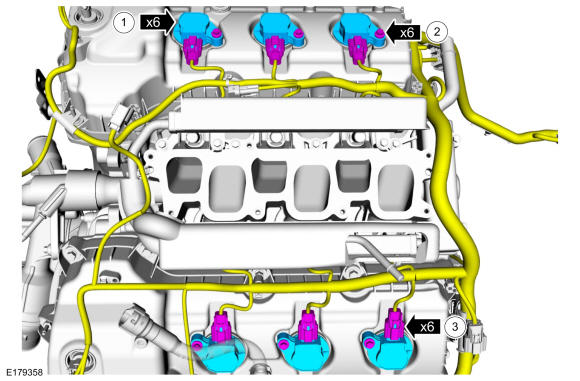

1. Install the ignition coil-on-plugs.
2. Install the ignition coil-on-plug mounting bolts.
  Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 50°
3. Connect the ignition coil-on-plug electrical connectors.
Courtesy of FORD MOTOR COMPANY

RH (right-hand) side
Install the upper intake manifold. Refer to: Upper Intake Manifold .
