Starter Motor: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .

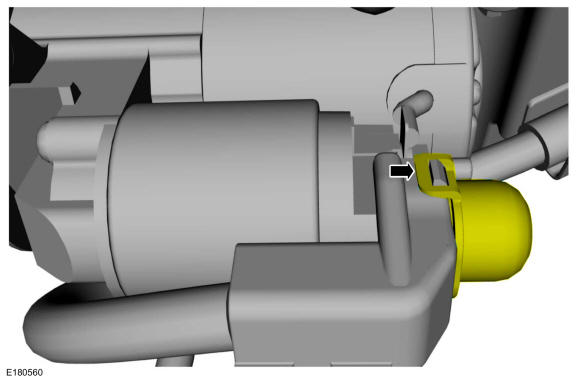

- Open the starter solenoid terminal cover.

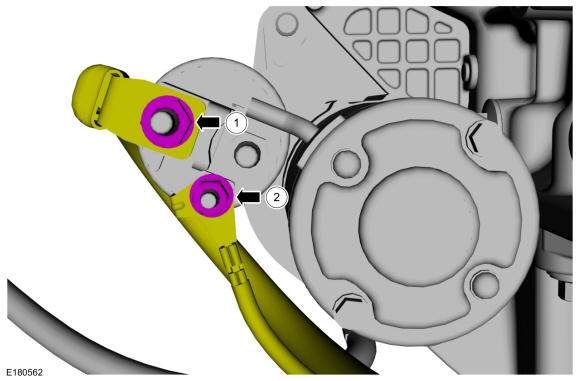

- Remove the starter solenoid terminal nuts and position the wires aside.

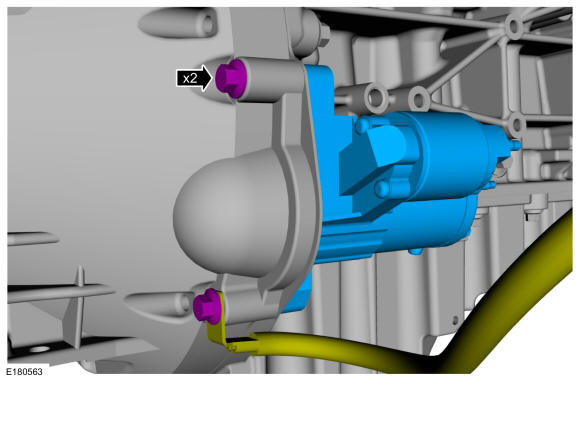

- Remove the starter motor mounting bolts, position the ground wire aside and remove the starter motor.
- Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
