Starter Motor: Installation

WARNING: This page is about a different variant/trim than selected.

Install the starter motor, the ground wire and the starter motor mounting bolts.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the starter motor solenoid wiring and the starter motor solenoid wiring nut.
  Torque: 106 lb.in (12 Nm)
2. Install the starter motor solenoid wiring and the starter motor solenoid wiring nut.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

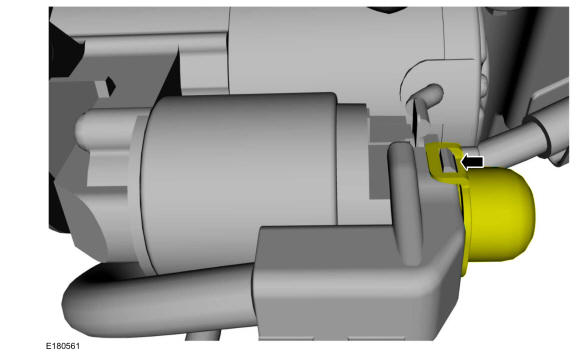

Close the starter solenoid terminal cover.

Courtesy of FORD MOTOR COMPANY
Reconnect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
