Fuel Charging and Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

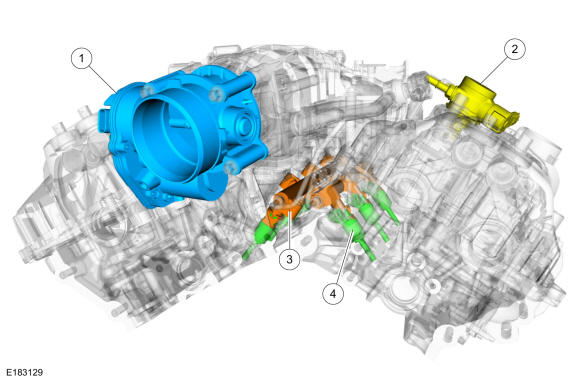

3.5L EcoBoost
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Throttle Body (TB) |
| 2 |
High-Pressure Fuel Pump |
| 3 |
Fuel rail |
| 4 |
Fuel injector |

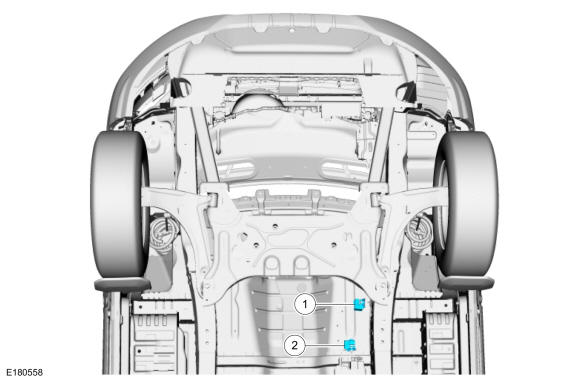

FPDM
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Diesel engine FPDM |
| 2 |
Gas engine FPDM |
