Removal And Installation: Radiator: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the cooling module. Refer to: Cooling Module .
  2. Remove the lower support.

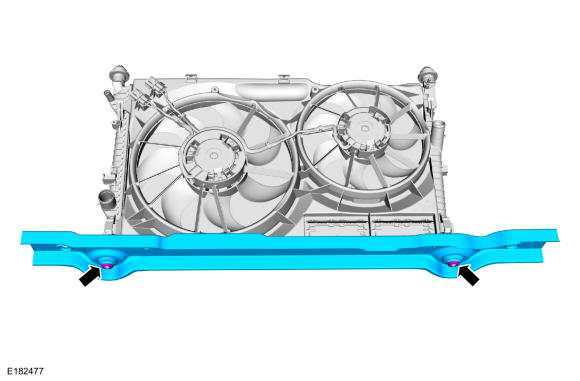

    GFD309737Courtesy of FORD MOTOR COMPANY
  3. Remove the cooling fan and shroud assembly.

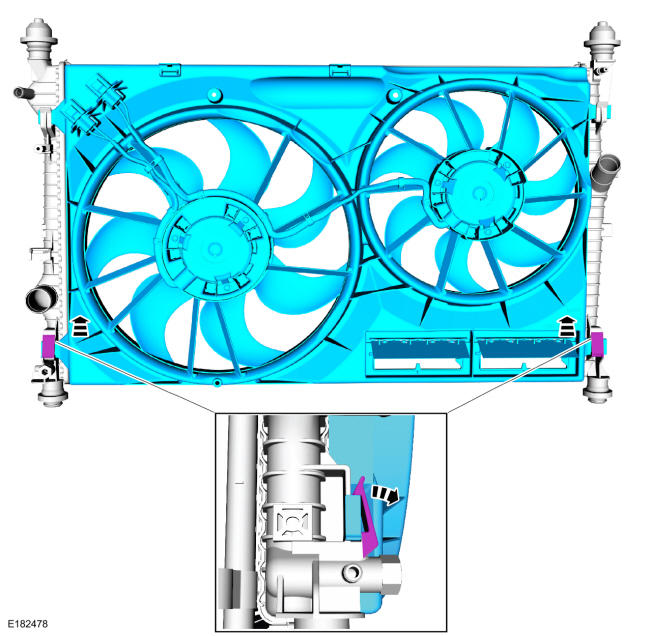

    GFD309738Courtesy of FORD MOTOR COMPANY
  4. Remove the A/C condenser.

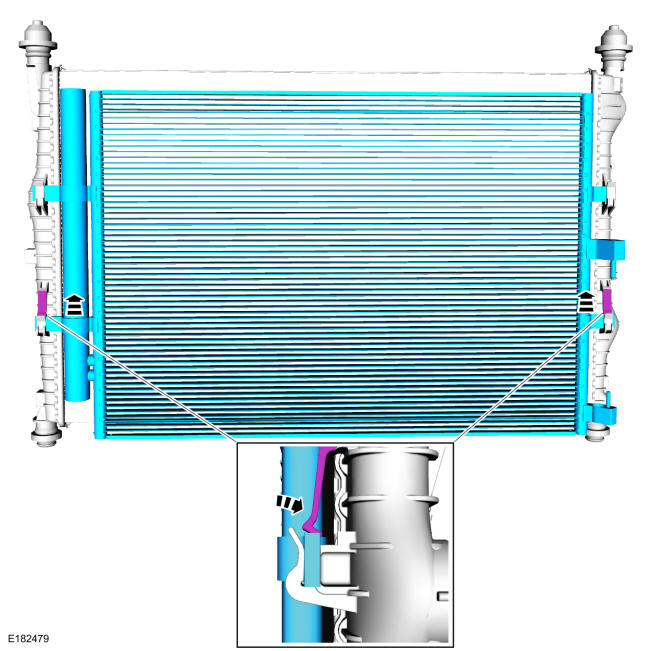

GFD309739Courtesy of FORD MOTOR COMPANY
