Cooling Module: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the CAC. Refer to: Charge Air Cooler (CAC) .

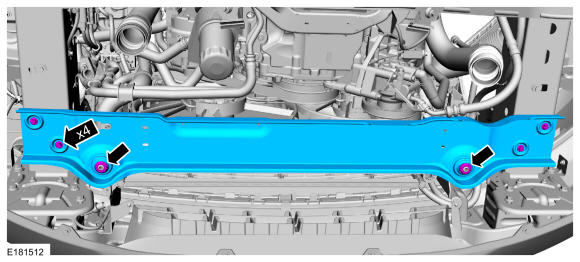

Position the lower module support and install the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
Remove and discard the lower load path bar retainers and remove the lower load path bars.
Torque: 1: 41 lb.ft (55 Nm) 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

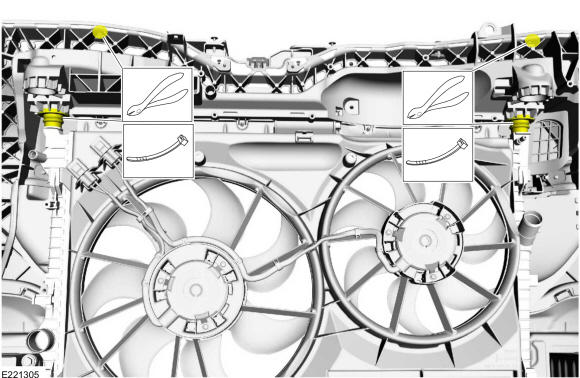

Remove the cable ties from the cooling module.

Courtesy of FORD MOTOR COMPANY
- Disconnect the wiring harness electrical connector and detach the retainer.
- Remove the bolts.
  Torque: 71 lb.in (8 Nm)
- Loosen the clamps and remove the CAC tubes.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

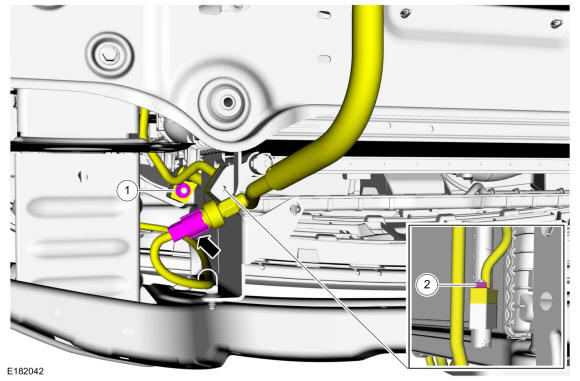

Disconnect the electrical connector and remove the A/C lines from the condenser. A crowfoot wrench may be needed to access the lower A/C line nut.
Torque: 1: 133 lb.in (15 Nm) 2: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

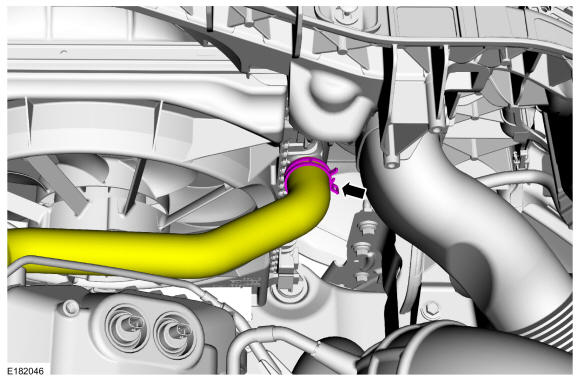

Disconnect the lower radiator hose.

Courtesy of FORD MOTOR COMPANY
Disconnect the cooling fan motor and shroud electrical connectors.

Courtesy of FORD MOTOR COMPANY

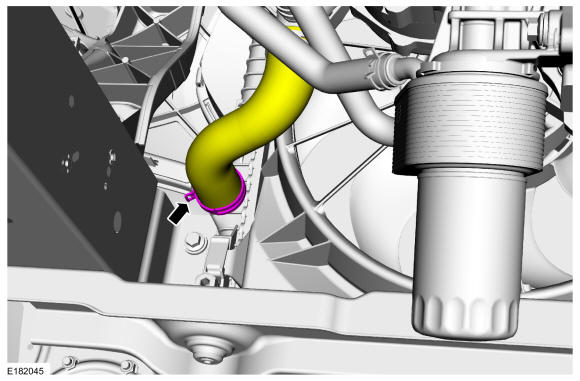

Disconnect the transmission cooler hose.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position the transmission cooler upward to release it from the lower retainer.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Throttle body and CAC tube not shown for clarity.

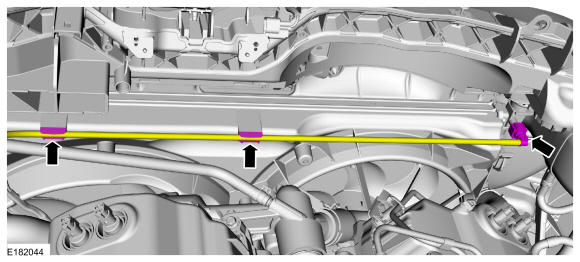

Remove the coolant hose and vapor tube connections from the cooling fan shroud.

Courtesy of FORD MOTOR COMPANY
Remove the degas bottle coolant tube from the radiator and disconnect it from the cooling fan shroud.

Courtesy of FORD MOTOR COMPANY

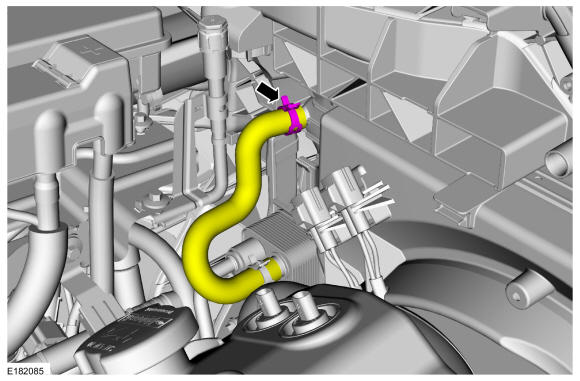

Disconnect the upper radiator hose.

Courtesy of FORD MOTOR COMPANY

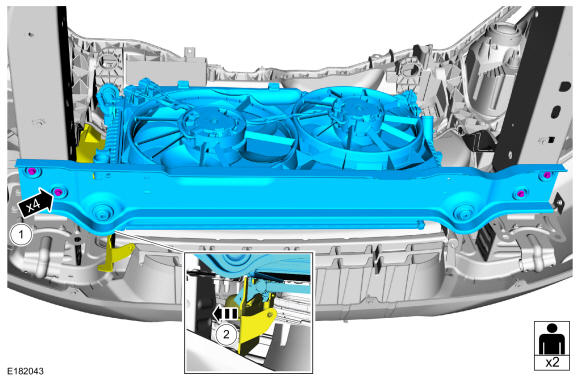

1. Remove the bolts.
  Torque: 18 lb.ft (25 Nm)
2. Position the air deflector from under the A/C condenser prior to lowering the cooling module.
  Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
