Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.

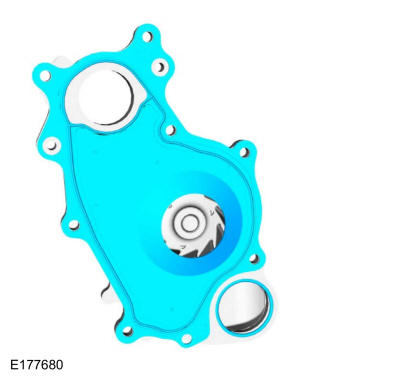

- Install a new coolant pump gasket and O-ring seal.
- Install the coolant pump and the bolts.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.
- Position the coolant pump pulley and install the bolts finger-tight.
- Install the thermostat housing. Refer to: Thermostat Housing .
- Remove the plastic from the A/C compressor belt.
- Install the accessory drive belt. Refer to: Accessory Drive Belt .
- Tighten the coolant pump pulley bolts.
Torque: 18 lb.ft (24 Nm)
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
