Coolant Inlet Pipe: Installation
WARNING: This page is about a different variant/trim than selected.
-
- Install new O-ring seals and lubricate them with clean engine coolant.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

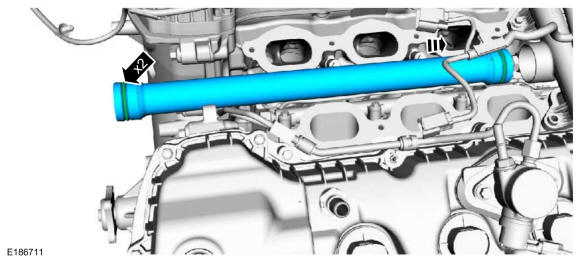

- Install the coolant pipe.
- Install new O-ring seals and lubricate them with clean engine coolant.
- Install the thermostat housing. Refer to: Thermostat Housing .
- Install the intake manifold. Refer to: Intake Manifold .
