Block Heater: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

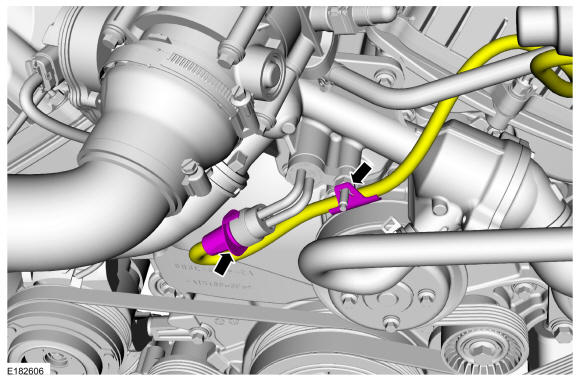

Disconnect the block heater electrical connector and harness clip.

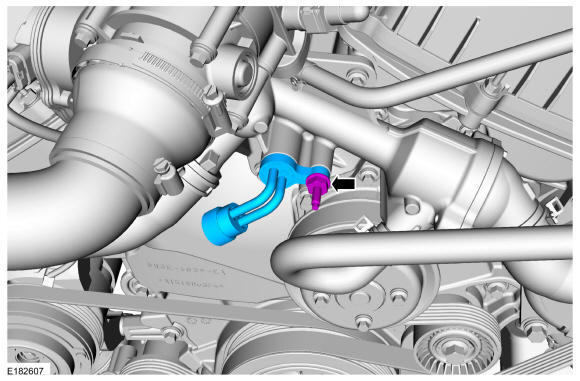

- Remove the stud bolt and the block heater.
Torque: 53 lb.in (6 Nm)
