Without rear heat
WARNING: This page is about a different variant/trim than selected.

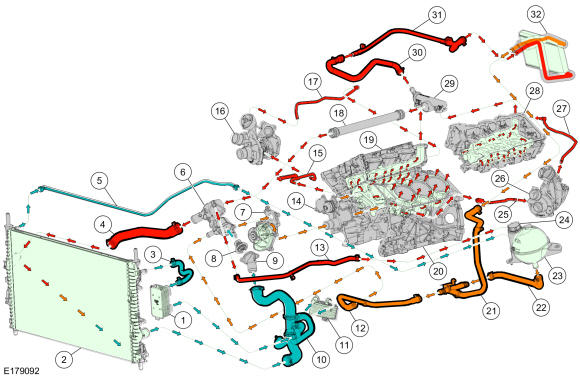

| Item | Description |
|---|---|
| 1 | Transmission oil cooler |
| 2 | Radiator |
| 3 | Transmission oil cooler inlet hose |
| 4 | Upper radiator hose |
| 5 | Radiator air aspirator hose |
| 6 | Thermostat housing |
| 7 | Coolant pump |
| 8 | Thermostat |
| 9 | Coolant outlet connection |
| 10 | Lower radiator hose |
| 11 | Oil cooler |
| 12 | Heater outlet hose |
| 13 | Air aspirator hose |
| 14 | Cylinder block coolant pump cover |
| 15 | Turbocharger inlet tube RH |
| 16 | Turbocharger |
| 17 | Turbocharger outlet tube RH |
| 18 | Coolant inlet tube |
| 19 | Cylinder head RH |
| 20 | Cylinder block |
| 21 | Heater outlet hose |
| 22 | Degas bottle hose |
| 23 | Degas bottle |
| 24 | Pressure relief cap |
| 25 | Turbocharger inlet tube LH |
| 26 | Turbocharger |
| 27 | Turbocharger outlet tube LH |
| 28 | Cylinder head LH |
| 29 | Engine coolant crossover |
| 30 | Heater hose inlet |
| 31 | Heater hose |
| 32 | Heater core |
