Removal And Installation: Radiator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling module. Refer to: Cooling Module .

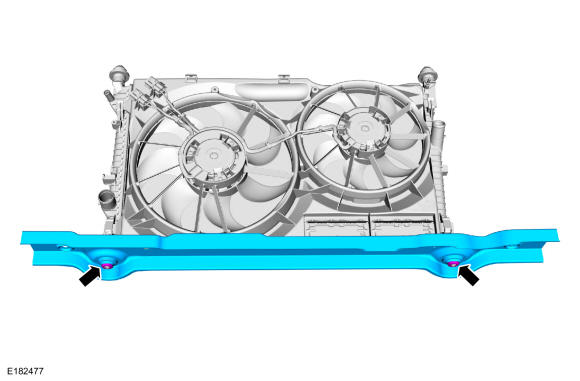

- Remove the lower support.

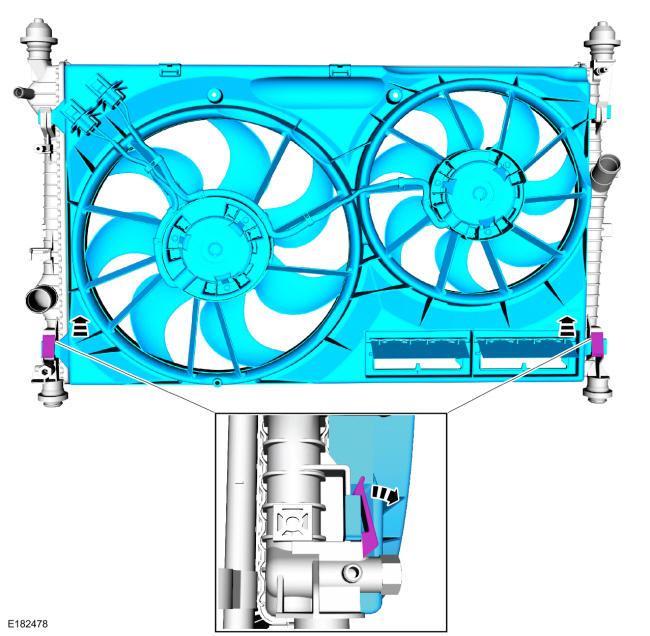

- Remove the cooling fan and shroud assembly.

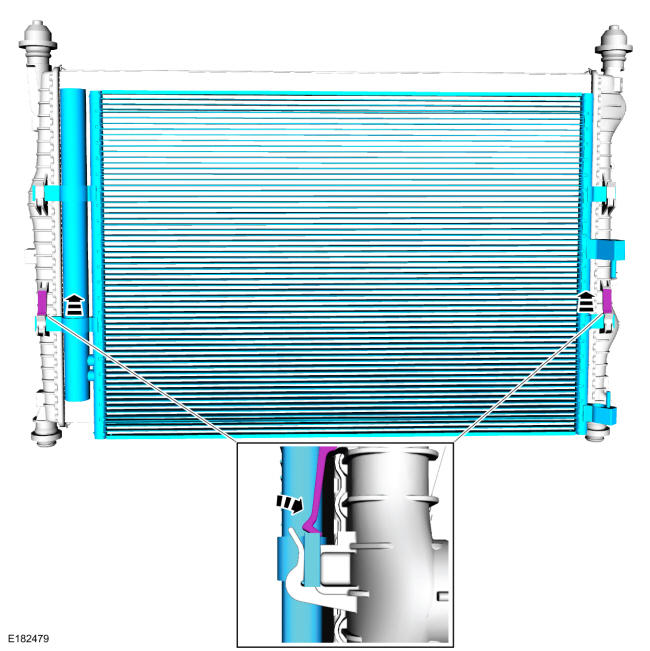

- Remove the A/C condenser.
-
NOTE: This step is only necessary when installing a new component.
Remove the radiator isolators.
