Cooling Module: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

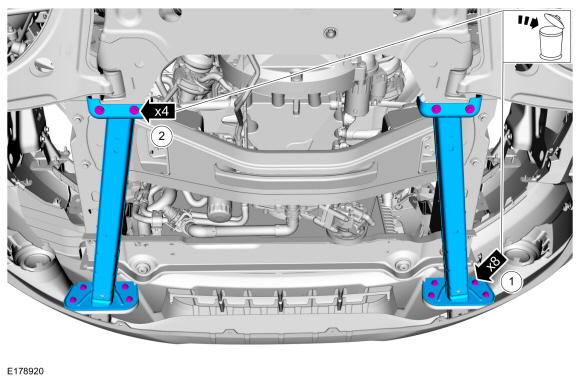

Remove and discard the lower load path bar retainers and remove the lower load path bars.
Torque: 1: 41 lb.ft (55 Nm) 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position the transmission cooler hose bracket aside.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

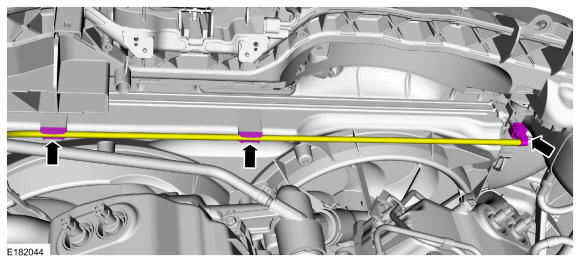

Remove the push pins and position the A/C lines aside.

Courtesy of FORD MOTOR COMPANY

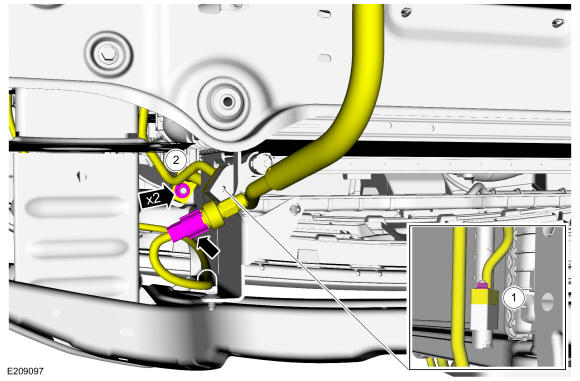

Disconnect the electrical connector and remove the A/C lines from the condenser. A crowsfoot wrench may be needed to access the lower A/C line nut.
Torque: 1: 71 lb.in (8 Nm) 2: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

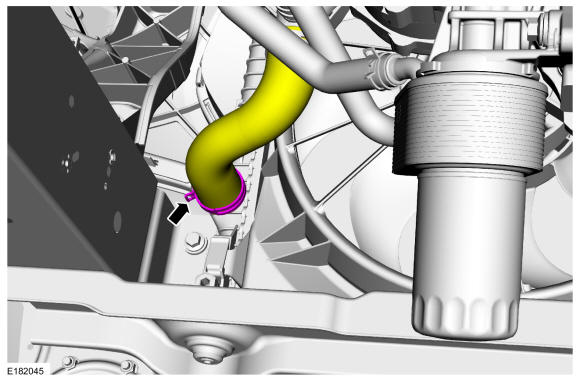

Disconnect the lower radiator hose.

Courtesy of FORD MOTOR COMPANY
Disconnect the cooling fan motor and shroud electrical connectors.

Courtesy of FORD MOTOR COMPANY
Disconnect the transmission cooler hose.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position the transmission cooler upward to release it from the lower retainer
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

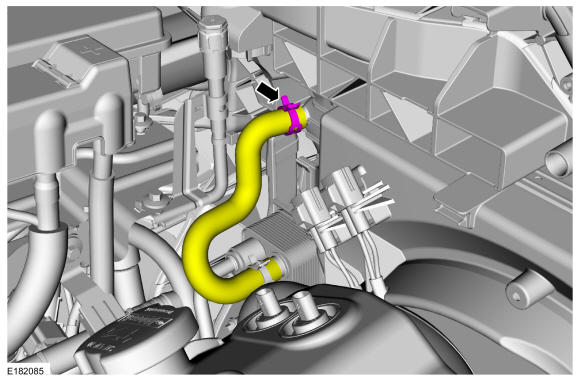

Remove the coolant hose connection from the cooling fan shroud.

Courtesy of FORD MOTOR COMPANY
Remove the degas bottle coolant tube and unclip it from the cooling fan shroud.

Courtesy of FORD MOTOR COMPANY

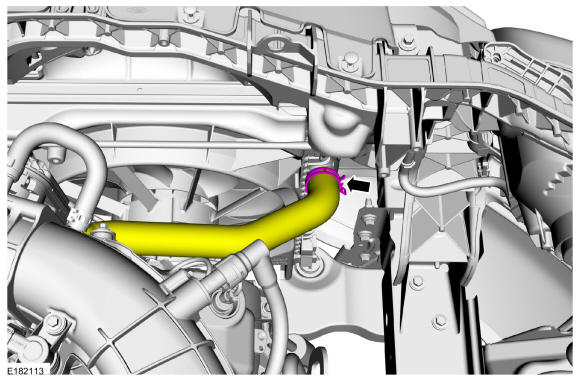

Disconnect the upper radiator hose.

Courtesy of FORD MOTOR COMPANY

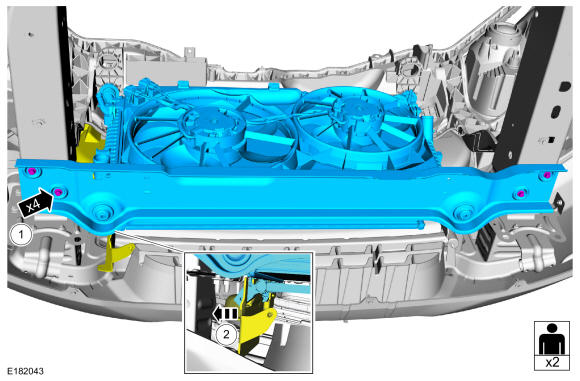

1. Remove the bolts
  Torque: 18 lb.ft (25 Nm)
2. Position the air deflector from under the A/C condenser prior to lowering the cooling module.
  Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
