Upper Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

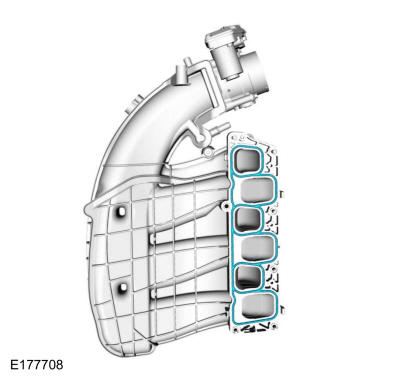

Install the new upper intake manifold gaskets.

Courtesy of FORD MOTOR COMPANY
Install the upper intake manifold and the bolts.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.

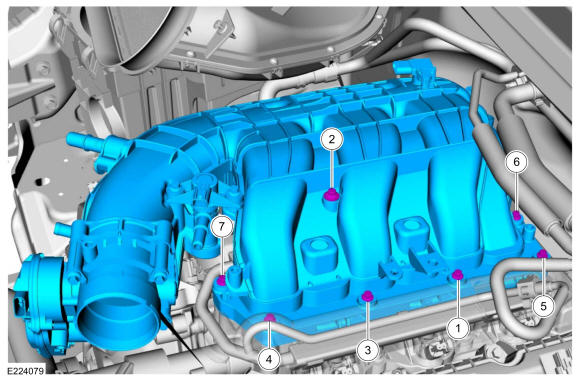

Fig 1: Upper Intake Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Connect the MAPT sensor electrical connector and wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
- Install the upper intake manifold support bolt.
  Torque: 89 lb.in (10 Nm)
- Connect the EVAP purge valve quick release coupling and tube retainer. Refer to: Quick Release Coupling .
- Connect the wiring electrical connectors and the wiring harness retainers.
- Connect the PCV tube to the upper intake manifold.
Courtesy of FORD MOTOR COMPANY
1. Position the vacuum tubes and install the bolt.
  Torque: 97 lb.in (11 Nm)
2. Attach the vacuum hose retainer to the crankcase vent tube.
3. Attach the vacuum hose retainer to the throttle body.
4. Connect the vacuum hose to the upper intake manifold. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
