Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

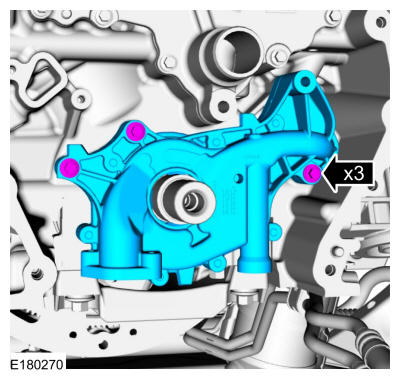

  2. Install the oil pump and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD309176Courtesy of FORD MOTOR COMPANY
  3. Install a new oil pump screen and pickup tube O-ring seal.
    GFD309177Courtesy of FORD MOTOR COMPANY

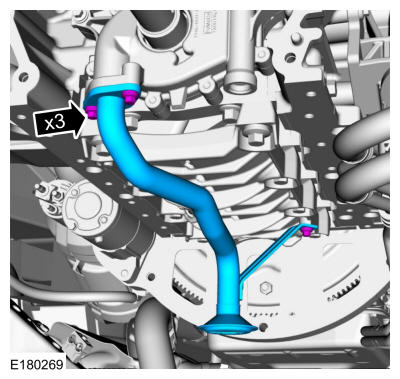

  4. Install the oil pump screen and pickup tube and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD309174Courtesy of FORD MOTOR COMPANY
  5. NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

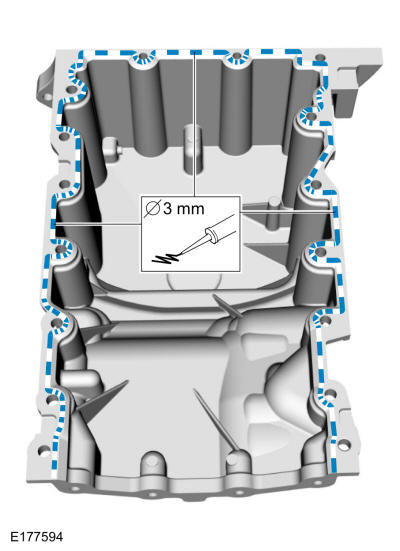

    Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD309178Courtesy of FORD MOTOR COMPANY

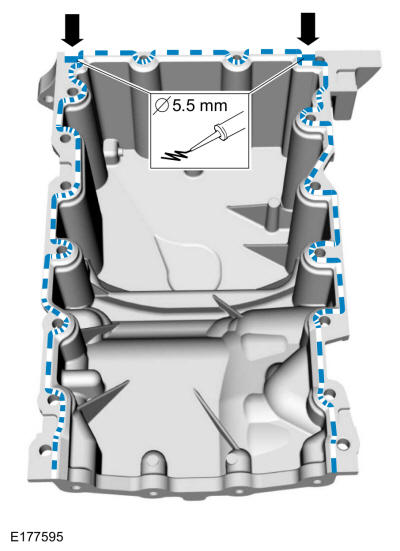

  6. Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD309179Courtesy of FORD MOTOR COMPANY

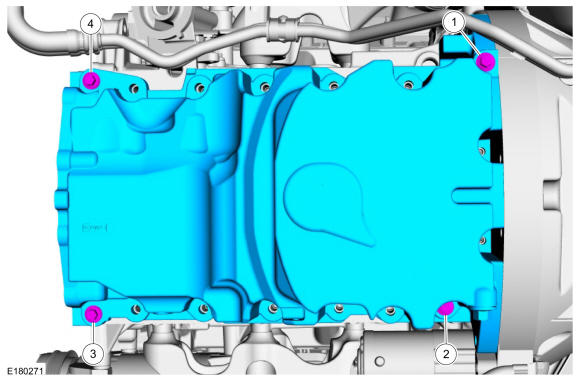

  7. NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.
    NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

    Install the bolts finger tight.

    GFD309180Courtesy of FORD MOTOR COMPANY
  8. NOTE: Do not torque at this time.

    Install the oil pan bolt.

    GFD309128Courtesy of FORD MOTOR COMPANY
  9. NOTE: Do not torque at this time.

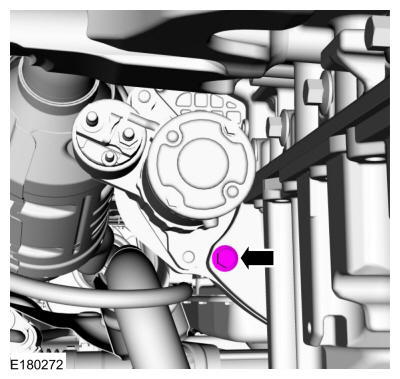

    Install the oil pan bolt.

    GFD309181Courtesy of FORD MOTOR COMPANY

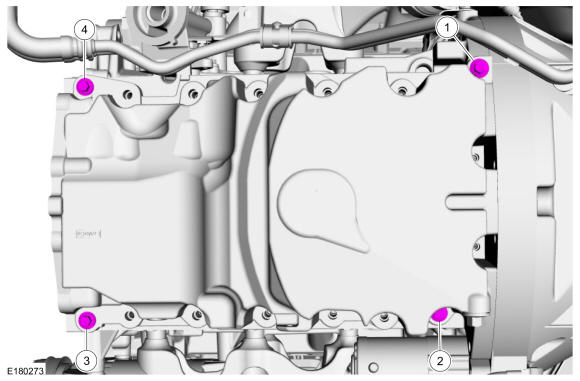

  10. Tighten the oil pan bolts in sequence.

    Torque: 27 lb.in (3 Nm)

    GFD309182Courtesy of FORD MOTOR COMPANY

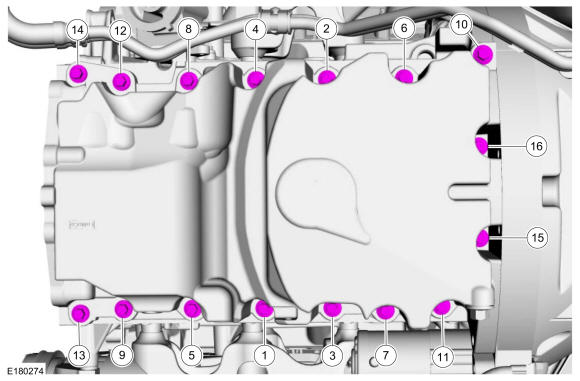

  11. Install the remaining oil pan bolts and tighten in sequence.

    Torque: Stage 1: Tighten bolts 1 through 14 to: 18 lb.ft (24 Nm) Stage 2: Tighten bolt 10 an additional: 90 deg. Stage 3: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

    GFD309183Courtesy of FORD MOTOR COMPANY
  12. Tighten the oil pan bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD309128Courtesy of FORD MOTOR COMPANY
  13. Tighten the oil pan bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD309181Courtesy of FORD MOTOR COMPANY
  14. With the aid of an assistant, install the engine crossmember and the bolts.

    Torque: 46 lb.ft (63 Nm)

    GFD309136Courtesy of FORD MOTOR COMPANY
  15. NOTE: RH shown, LH similar.

    Install the RH and LH engine mount bolts to the bottom of the engine crossmember.

    GFD309137Courtesy of FORD MOTOR COMPANY

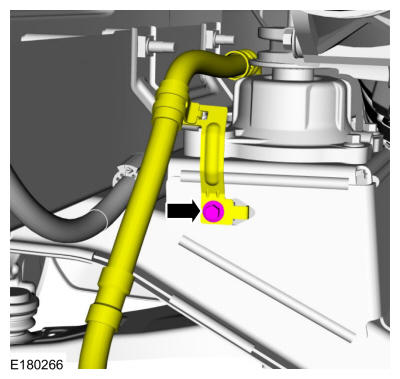

  16. Install the power steering hose bolt to the engine crossmember.

    Torque: 106 lb.in (12 Nm)

    GFD309169Courtesy of FORD MOTOR COMPANY

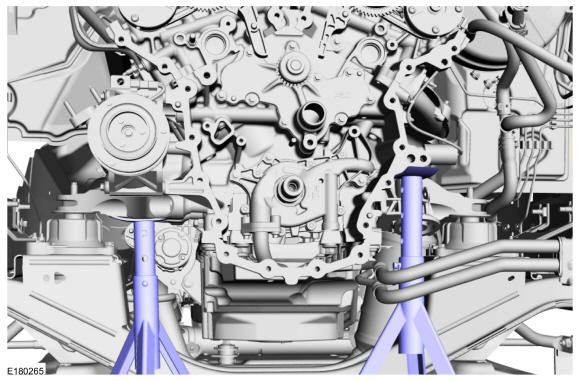

  17. Remove the stands. Use the General Equipment: Vehicle/Axle Stands
    GFD309168Courtesy of FORD MOTOR COMPANY
  18. Install the bolt for the transmission cooler tubes.

    Torque: 106 lb.in (12 Nm)

    GFD309167Courtesy of FORD MOTOR COMPANY

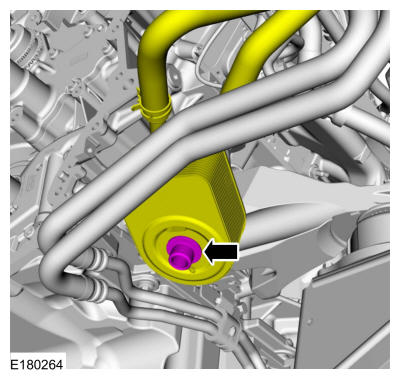

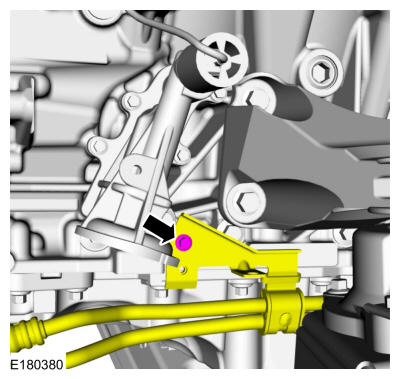

  19. NOTE: Make sure the oil cooler-to-oil filter adapter is aligned.

    Install the oil cooler and the retainer.

    Torque: 43 lb.ft (58 Nm)

    GFD309166Courtesy of FORD MOTOR COMPANY

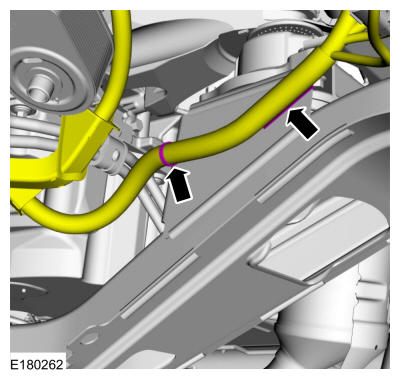

  20. Attach the wiring harness retainers to the engine crossmember.
    GFD309165Courtesy of FORD MOTOR COMPANY

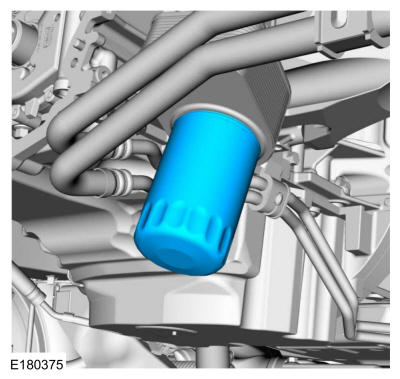

  21. NOTE: Do not lubricate the engine oil filter gasket.

    Install a new oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

    GFD309184Courtesy of FORD MOTOR COMPANY

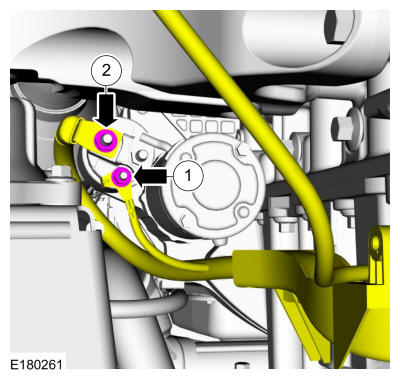

    1. Position the starter motor wiring harness and install the starter solenoid S- terminal nut.

      Torque: 44 lb.in (5 Nm)

    2. Install the starter solenoid B+ terminal nut.

      Torque: 106 lb.in (12 Nm)

    GFD309161Courtesy of FORD MOTOR COMPANY
  22. Remove the starter motor solenoid terminal cover.
    GFD309160Courtesy of FORD MOTOR COMPANY

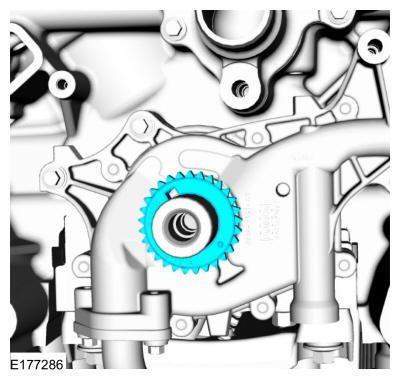

  23. Install the crankshaft sprocket with the timing dot mark out.
    GFD309185Courtesy of FORD MOTOR COMPANY
  24. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

    Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.

    GFD309186Courtesy of FORD MOTOR COMPANY
  25. Install the lower LH timing chain guide and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD309158Courtesy of FORD MOTOR COMPANY
  26. Install the timing chain tensioner arm.
    GFD309157Courtesy of FORD MOTOR COMPANY
    1. Position the tensioner in a soft-jawed vise.
    2. Using pliers, squeeze the ends of the ratchet wire clip together.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.
    GFD309187Courtesy of FORD MOTOR COMPANY
  27. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

    1. Install the timing chain tensioner and the bolts.

      Torque: 89 lb.in (10 Nm)

    2. Remove the lockpin.

    GFD309188Courtesy of FORD MOTOR COMPANY
    • As a post-check, verify correct alignment of all timing marks.

    • There are 48 links in between the RH intake VVT unit colored link (1) and the LH intake VVT unit colored link (2).

    • There are 35 links in between LH intake VVT unit colored link (2) and the crankshaft sprocket links (3).

    GFD309189Courtesy of FORD MOTOR COMPANY

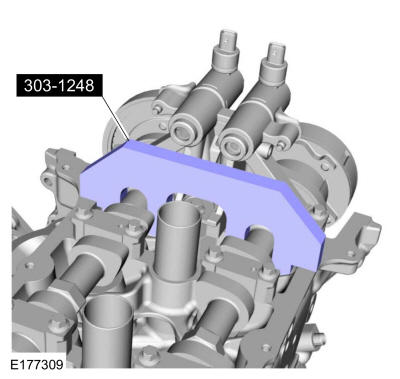

  28. Remove Special Service Tool: 303-1248 Camshaft holding tools.
    GFD309152Courtesy of FORD MOTOR COMPANY
  29. Install the RH oil tube and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    GFD308933Courtesy of FORD MOTOR COMPANY
  30. Remove Special Service Tool: 303-1248 Camshaft holding tools.
    GFD309151Courtesy of FORD MOTOR COMPANY
  31. Install the LH oil tube and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    GFD308941Courtesy of FORD MOTOR COMPANY
  32. Install the engine front cover. Refer to: Engine Front Cover .

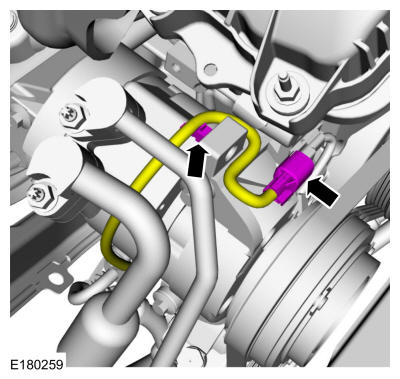

  33. Connect the A/C compressor electrical connector and wiring harness retainer.
    GFD309149Courtesy of FORD MOTOR COMPANY
  34. NOTE: RH shown, LH similar.

    Install the new RH and LH engine mount nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD309143Courtesy of FORD MOTOR COMPANY
  35. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

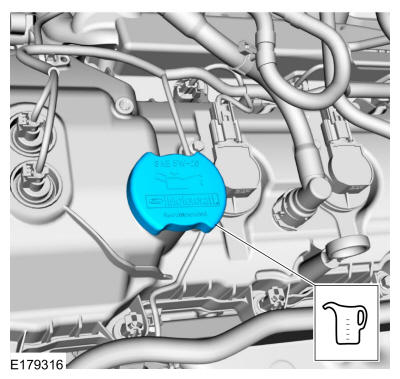

  36. Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

GFD309190Courtesy of FORD MOTOR COMPANY
