Oil Pressure Switch: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE:

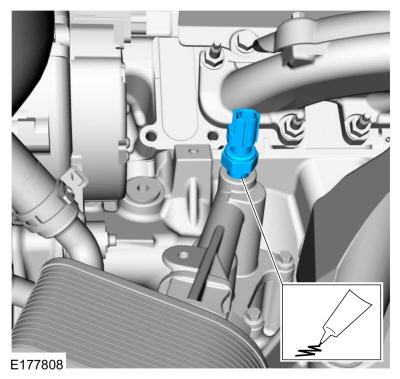

If the oil pressure switch is to be reused, apply thread sealant.
Install the oil pressure switch.
Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)
Torque: 159 lb.in (18 Nm)
 Courtesy of FORD MOTOR COMPANY
|

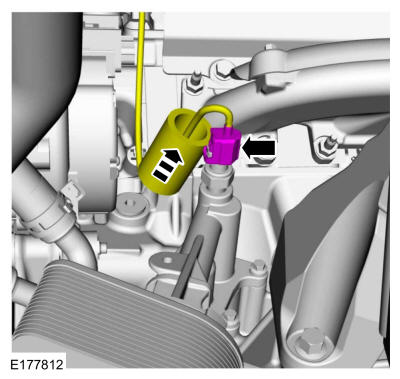

- Connect the oil pressure switch electrical connector and slide the insulator on.
 Courtesy of FORD MOTOR COMPANY
|
