Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

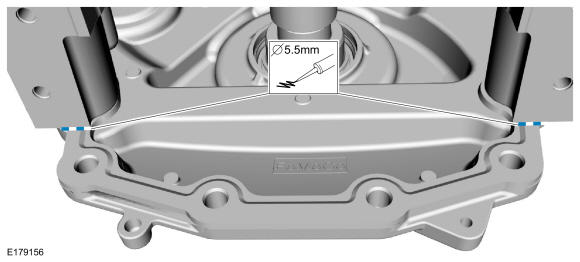

Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft engine front cover-to-cylinder block joint areas.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

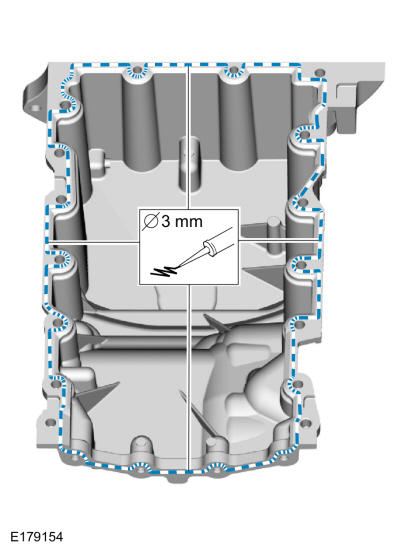

Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

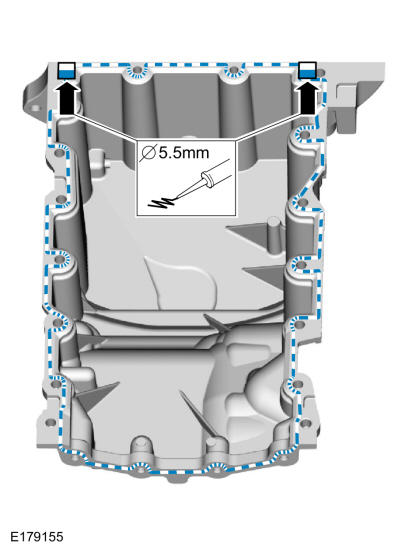

Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.

NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

Install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not torque at this time.

Draw the transmission and engine together using the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not torque at this time.

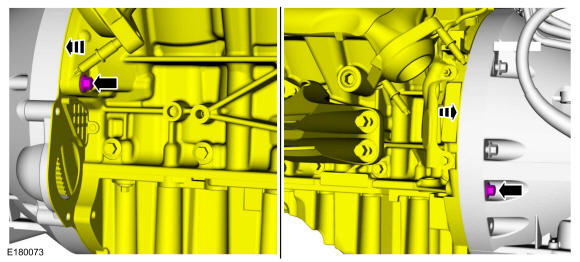

Install the oil pan bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not torque at this time.

Install the oil pan bolt.

Courtesy of FORD MOTOR COMPANY

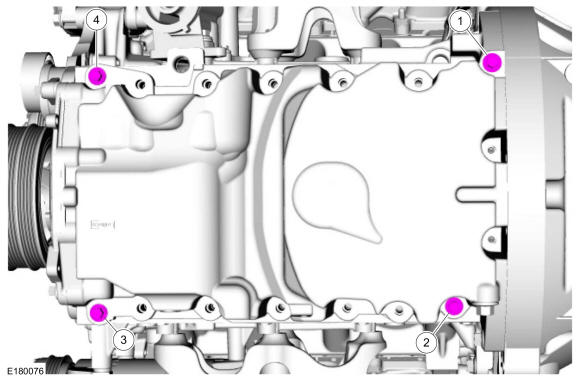

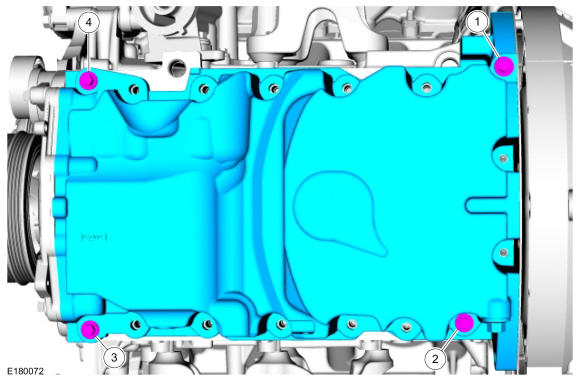

Tighten the oil pan bolts in sequence.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: It will be necessary to obtain a W503297 (10mm Hex) M8 x 1.25 x 35 bolt and washer to replace the power steering pump bracket bolt during the oil pan tightening process.

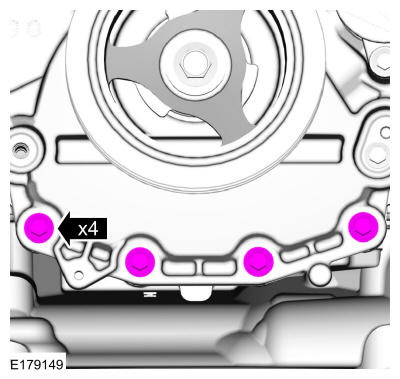

Install the engine front cover bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the remaining oil pan bolts and tighten in sequence.
Torque: Stage 1: Tighten bolts 1 through 14 to: 18 lb.ft (24 Nm) Stage 2: Tighten bolt 10 an additional: 90 deg. Stage 3: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

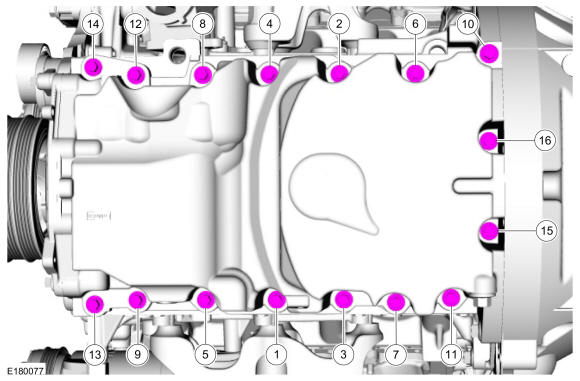

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: After the tightening sequence is completed, the W503297 (10mm Hex) M8 x 1.25 x 35 bolt and washer will be removed to accommodate installation of the power steering pump assembly bolt.

Tighten the engine front cover bolts.

Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

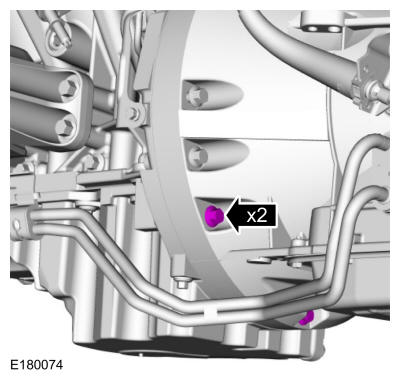

Tighten the oil pan and bellhousing bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

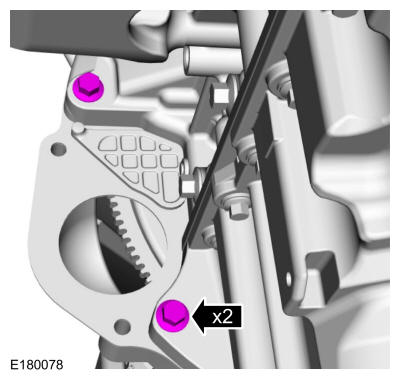

Tighten the oil pan and bellhousing bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

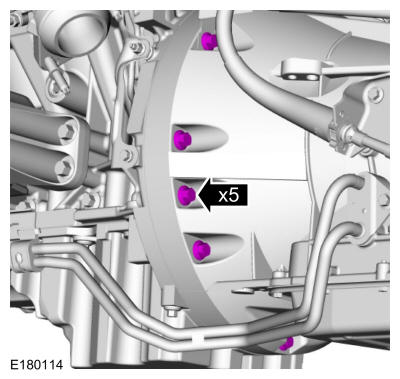

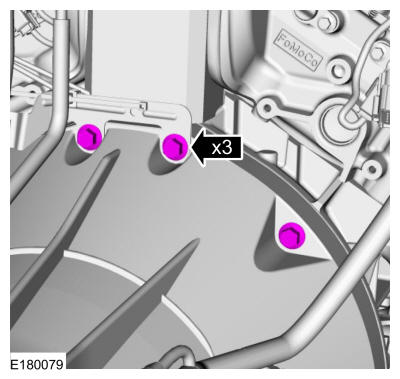

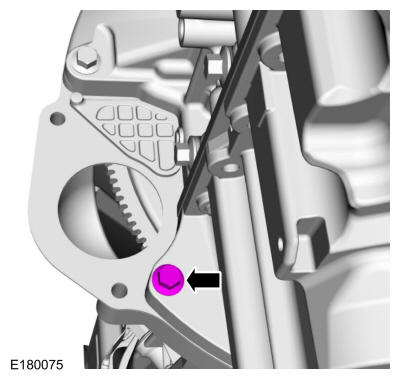

Tighten the bellhousing bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

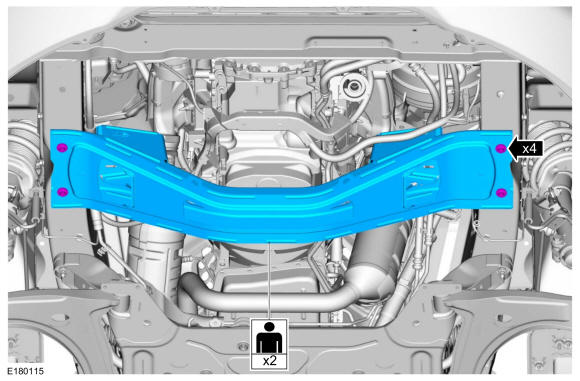

With the aid of an assistant, install the engine crossmember and the bolts.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

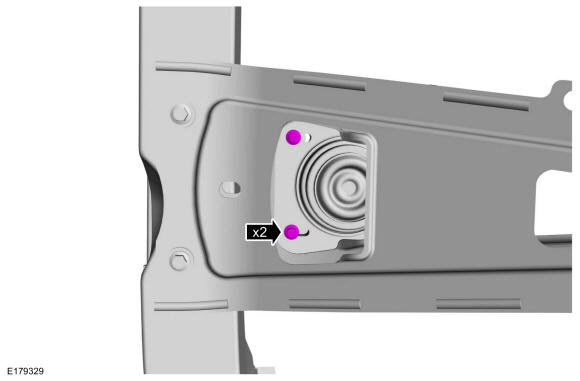

Install the RH and LH engine mount bolts to the bottom of the engine crossmember.

Courtesy of FORD MOTOR COMPANY

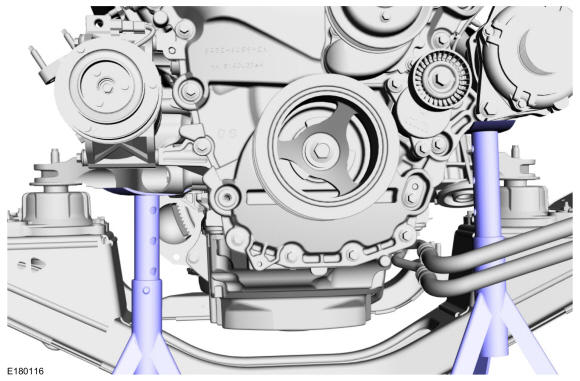

Remove the stands. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

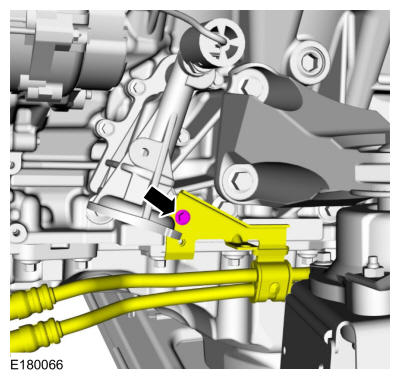

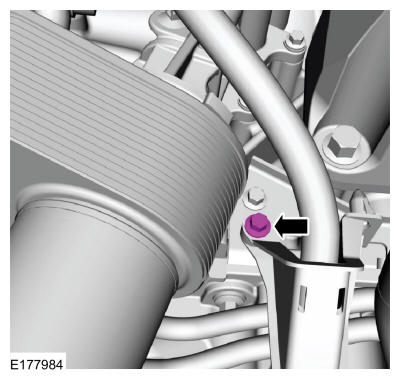

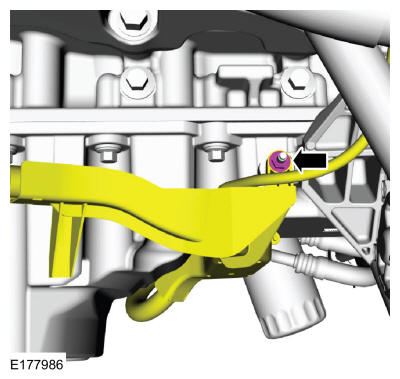

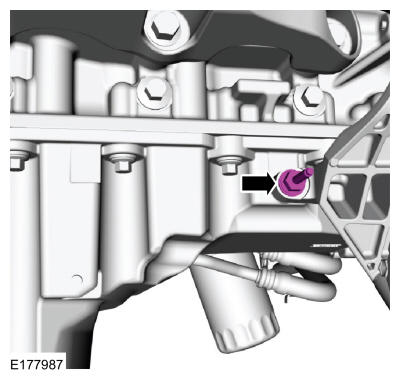

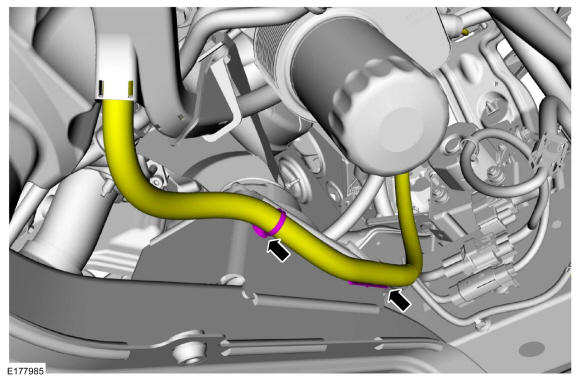

Install the bolt for the transmission cooler tubes.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

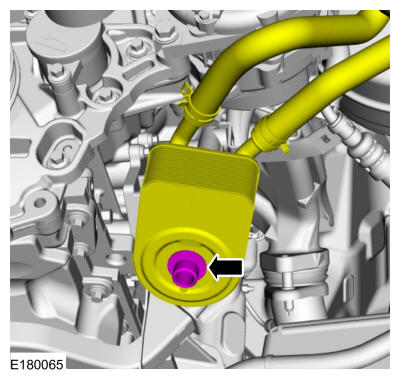

Install the oil cooler and the retainer.
Torque: 43 lb.ft (58 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the engine oil filter gasket.

Install a new oil filter.

Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY

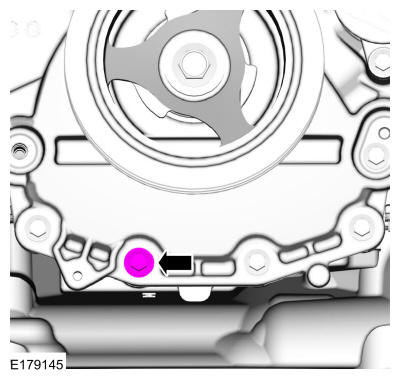

Remove the engine front cover bolt.

Courtesy of FORD MOTOR COMPANY

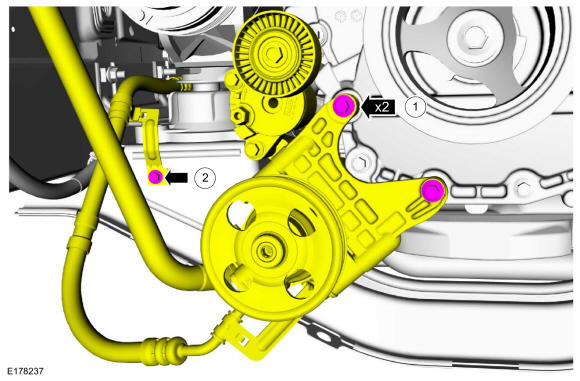

1. NOTE: Do not tighten the bolts at this time.

  Position the power steering pump assembly and install the bolts by hand.
2. Install the power steering hose bracket and bolt.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

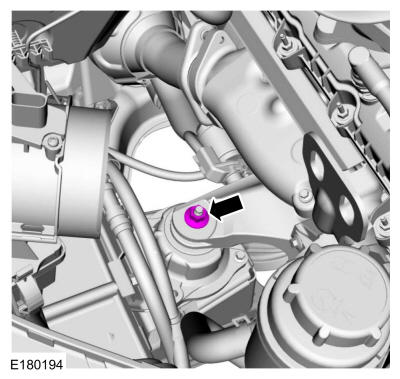

Install the power steering pump bracket stud bolt.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

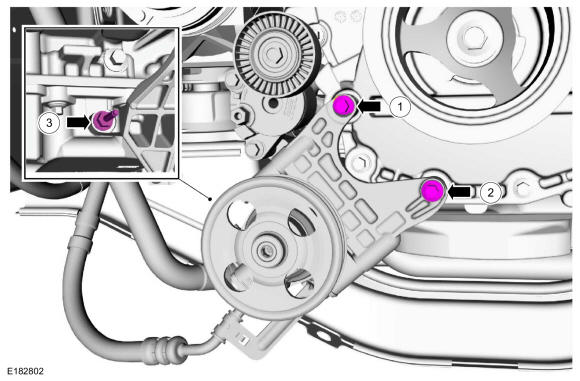

1. Tighten the bolt.
  Torque: 26 lb.ft (35 Nm)
2. Tighten the bolt.
  Torque: 26 lb.ft (35 Nm)
3. Tighten the stud bolt.
  Torque: 19 lb.ft (26 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wiring harness conduit and nut.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wiring harness conduit bolt.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

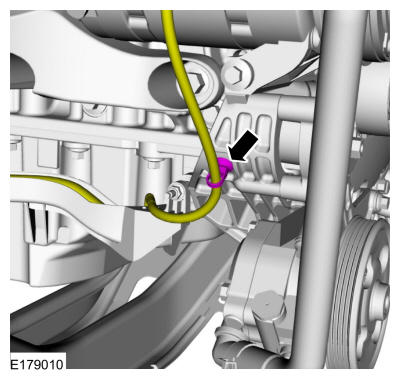

Attach the wiring harness retainer to the accessory drive belt tensioner.

Courtesy of FORD MOTOR COMPANY

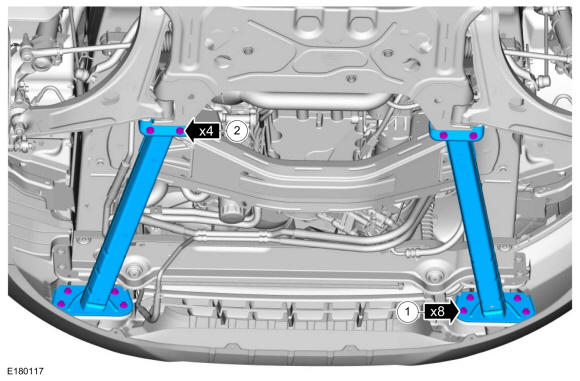

Install the lower load path bars and bolts.
Torque: 1: 41 lb.ft (55 Nm) 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Starter Motor .
2. Refer to: Air Conditioning (A/C) Compressor Belt .
NOTE: RH shown, LH similar.

Install the new RH and LH engine mount nuts.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

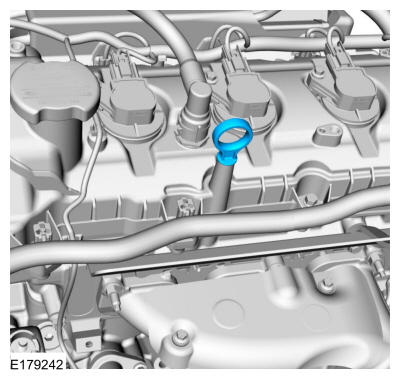

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

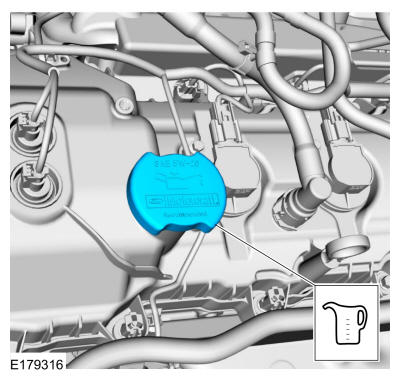

Fill the engine with clean engine oil. Refer to: Specifications .
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
