Oil Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

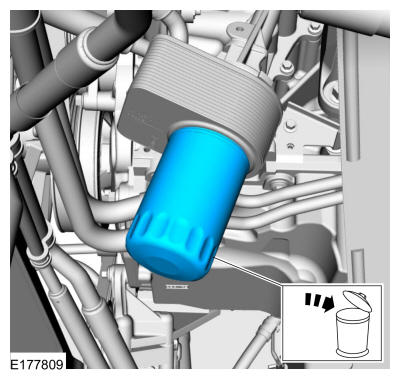

- Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
-

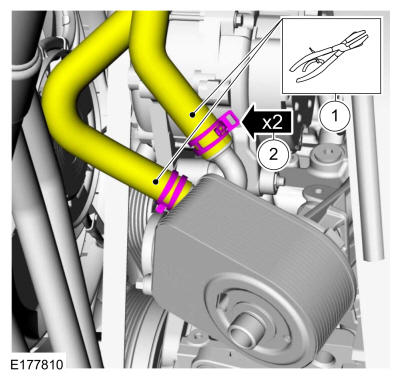

- Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
- Using the hose clamp remover, remove the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: If metal or foreign material is present in the oil cooler, mechanical concerns exist. To diagnose the mechanical concerns refer to Engine .
Remove the bolt and the oil cooler.
