Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

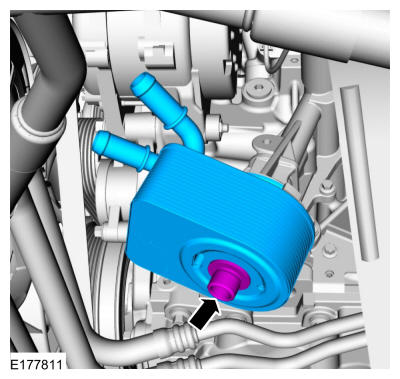

NOTE: Make sure the oil cooler-to-oil filter adapter is aligned.

Install the oil cooler and the bolt.

Torque: 43 lb.ft (58 Nm)

Courtesy of FORD MOTOR COMPANY

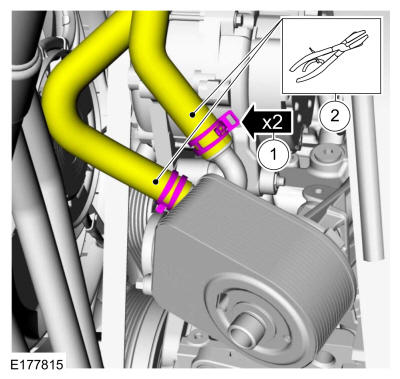

1. Using the hose clamp installer, install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
2. Remove the hose locking pliers.
Courtesy of FORD MOTOR COMPANY

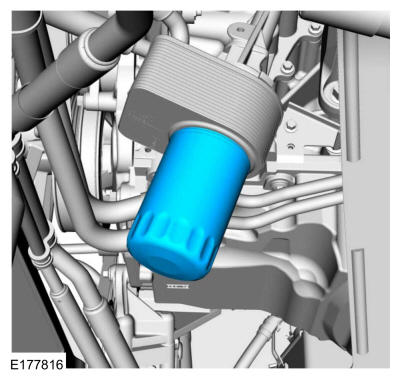

NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.

Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
Inspect and adjust the coolant level in the degas bottle.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
Inspect and adjust the engine oil level.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
