Lower Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

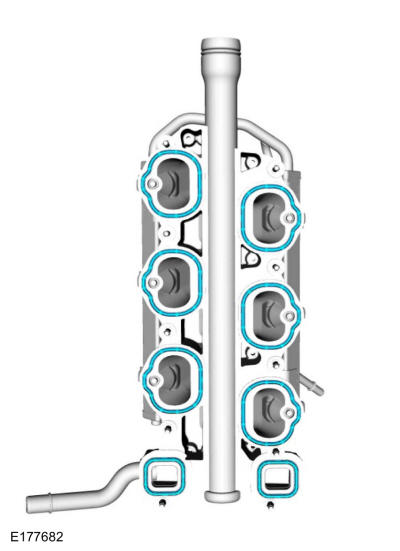

Install the new lower intake manifold gaskets.

Courtesy of FORD MOTOR COMPANY
Install the lower intake manifold and the bolts.
Torque: 89 lb.in (10 Nm)

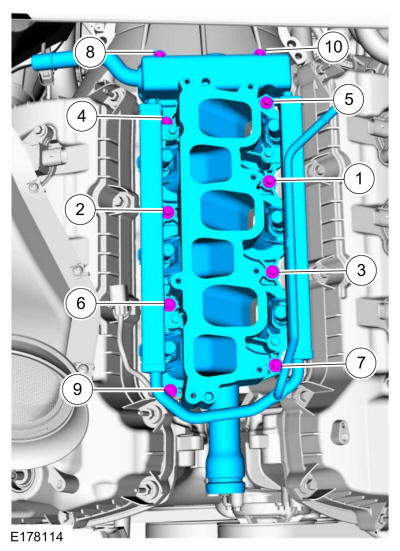

Fig 1: Lower Intake Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY

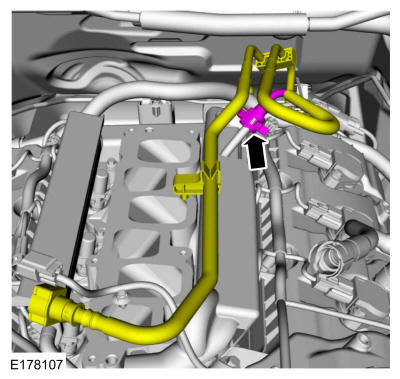

- Connect the coolant tube to the lower intake manifold.
- Connect the fuel injector electrical connectors.
Courtesy of FORD MOTOR COMPANY

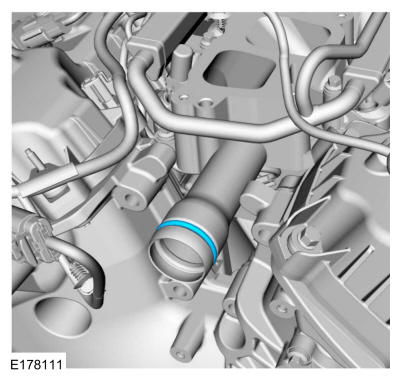

Install a new thermostat housing O-ring seal.

Courtesy of FORD MOTOR COMPANY

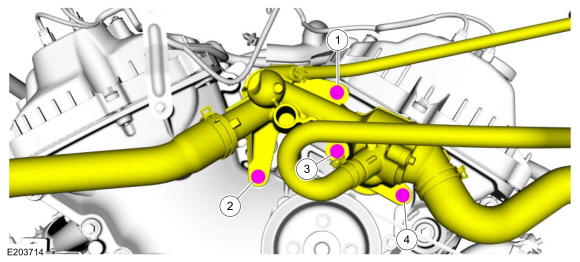

Install the thermostat housing and the bolts.
Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Remove the waterproof plastic from the accessory drive belts.

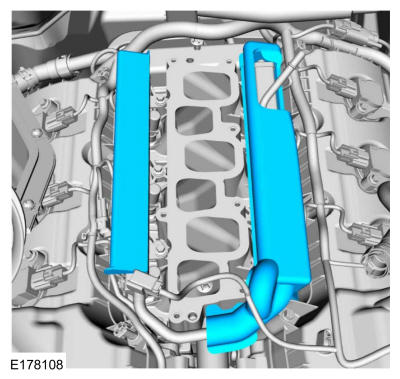

Install the fuel rail sound insulators.

Courtesy of FORD MOTOR COMPANY

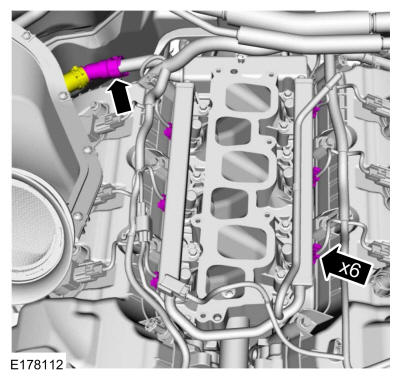

Connect the fuel tube quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Install the upper intake manifold. Refer to: Upper Intake Manifold .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
