Removal And Installation: Flexplate: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.

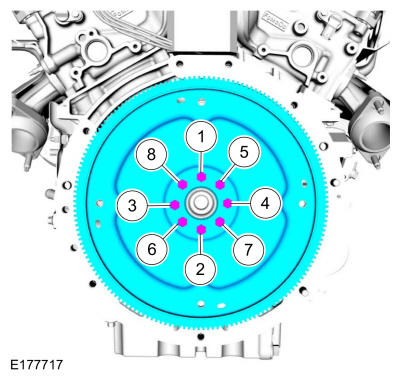

Install the flexplate and the bolts and tighten in sequence shown.
Torque: 59 lb.ft (80 Nm)
- Install the transmission. Refer to: Transmission - 3.7L Duratec (199kW/270PS) .
- After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
