Exhaust Manifold RH: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the LH HO2S catalyst monitor sensor and the wiring harness retainers.
- Disconnect the RH HO2S and catalyst monitor sensor.
-
NOTE: Clean the catalytic converter-to-muffler sealing surfaces.
Remove the exhaust flange bolts and detach the exhaust hanger.

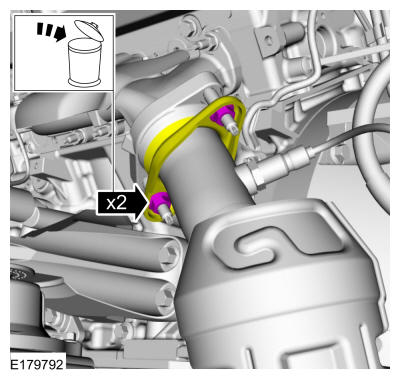

- Remove and discard the LH catalytic converter flange nuts.
-
NOTE: Clean the catalytic converter-to-exhaust manifold sealing surfaces.

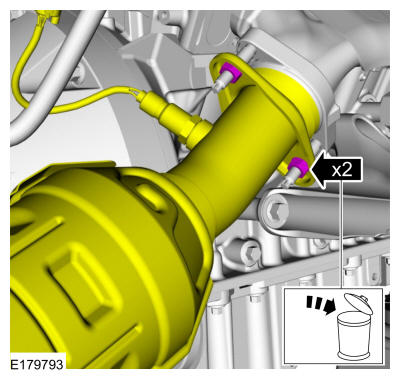

Remove and discard the RH catalytic converter flange nuts and position rearward.
- Remove the bolts and the exhaust manifold heat shield.
-

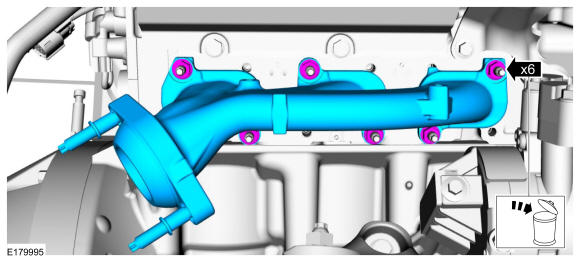

- Remove the nuts and the exhaust manifold.
- Discard the nuts.
-

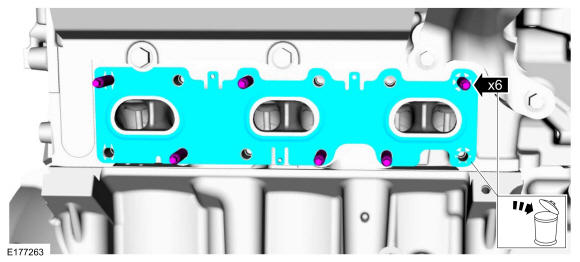

- Remove and discard the exhaust manifold gasket.
- Remove and discard the exhaust manifold studs.
- Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
