Exhaust Manifold LH: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

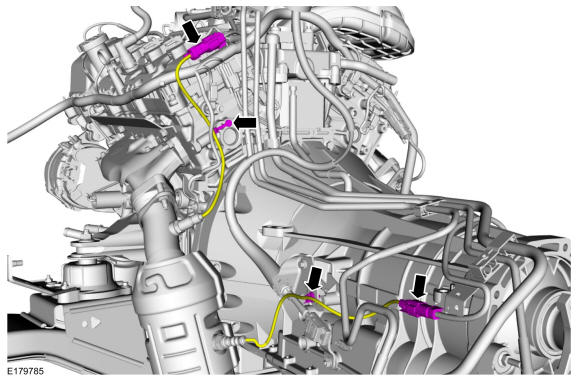

Disconnect the LH HO2S catalyst monitor sensor and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

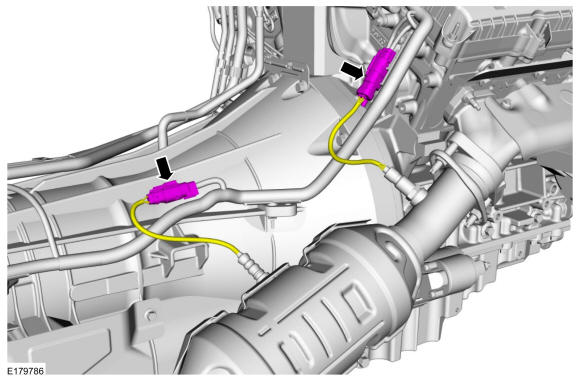

Disconnect the RH HO2S and catalyst monitor sensor.

Courtesy of FORD MOTOR COMPANY
NOTE: Clean the catalytic converter-to-muffler sealing surfaces.

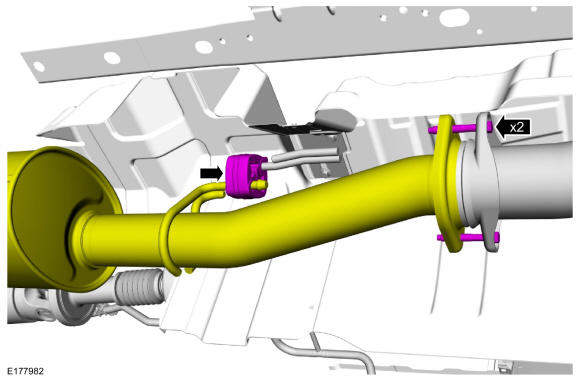

Remove the exhaust flange bolts and detach the exhaust hanger.

Courtesy of FORD MOTOR COMPANY

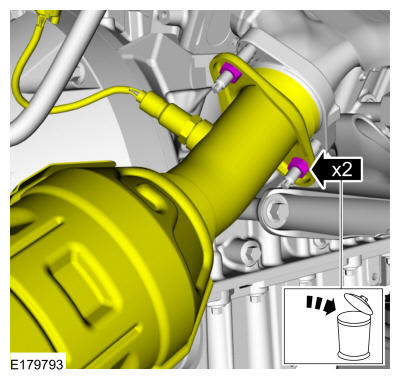

Remove and discard the LH catalytic converter flange nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Clean the catalytic converter-to-exhaust manifold sealing surfaces.

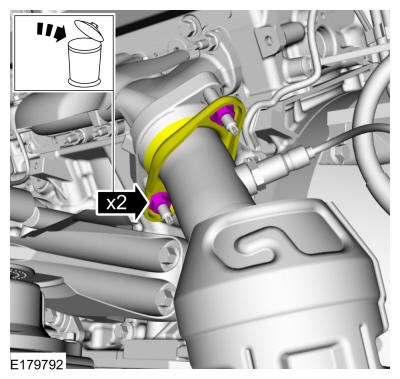

Remove and discard the RH catalytic converter flange nuts and position rearward.

Courtesy of FORD MOTOR COMPANY

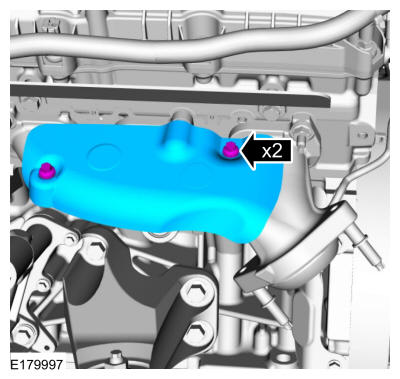

Remove the bolts and the exhaust manifold heat shield.

Courtesy of FORD MOTOR COMPANY

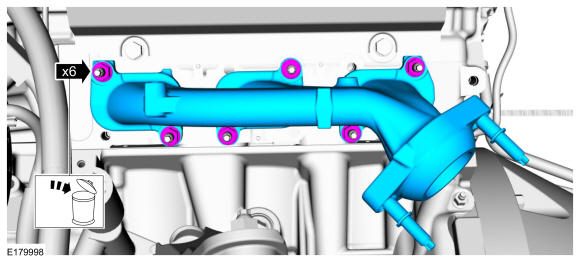

- Remove the nuts and the exhaust manifold.
- Discard the nuts.
Courtesy of FORD MOTOR COMPANY

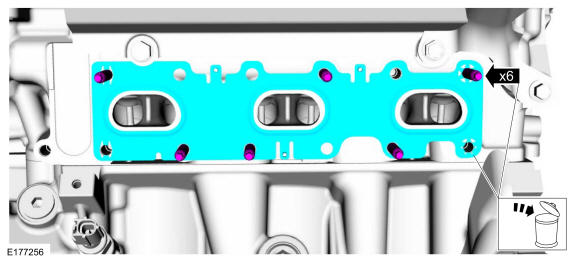

- Remove and discard the exhaust manifold gasket.
- Remove and discard the exhaust manifold studs.
Courtesy of FORD MOTOR COMPANY
NOTE: Clean the cylinder head-to-exhaust manifold sealing surfaces.

Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
