Exhaust Manifold LH: Installation

WARNING: This page is about a different variant/trim than selected.

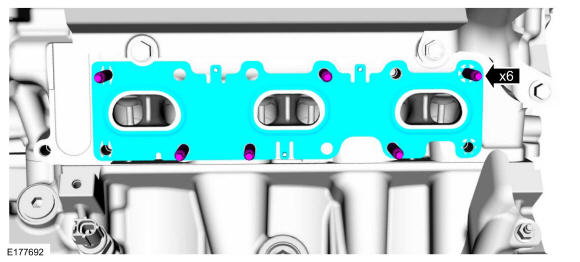

- Install the new exhaust manifold studs.
  Torque: 106 lb.in (12 Nm)
- Install the new exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY
Install the exhaust manifold and the new nuts.
Torque: Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

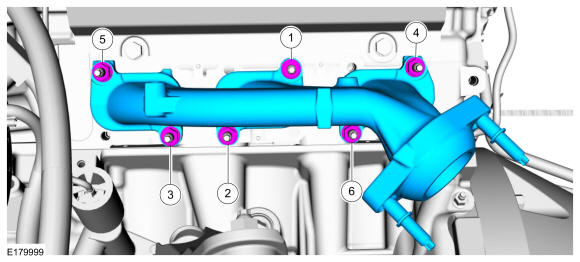

Fig 1: LH Exhaust Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the exhaust manifold heat shield and the bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

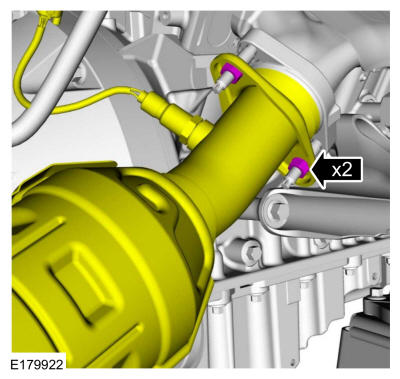

Position the RH catalytic converter and install new flange nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

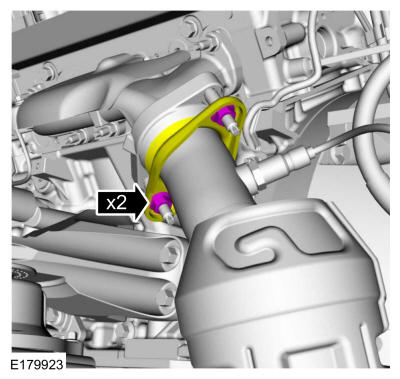

Install the LH catalytic converter flange and new nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the exhaust hanger and install the exhaust flange bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the RH HO2S and catalyst monitor sensor.

Courtesy of FORD MOTOR COMPANY
Connect the LH HO2S catalyst monitor sensor and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Start and check the exhaust system for leaks.
