Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine crossmember. Refer to: Engine Crossmember .
    • Remove and discard the bolts.

      Torque: 22 lb.ft (30 Nm)

    • Remove the RH engine mount.

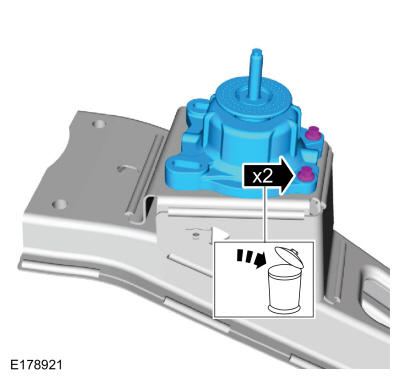

GFD309049Courtesy of FORD MOTOR COMPANY
