Engine Front Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

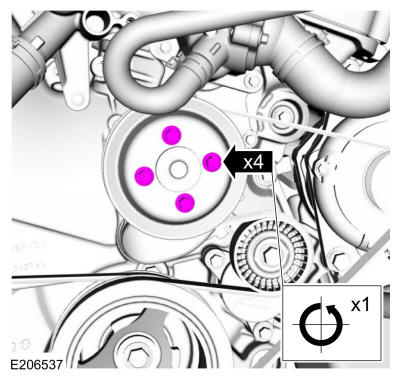

  3. Loosen the coolant pump pulley bolts.
    GFD309019Courtesy of FORD MOTOR COMPANY
  4. Remove the following items:

    1. Refer to: Valve Cover LH .
    2. Refer to: Valve Cover RH .
    3. Refer to: Crankshaft Front Seal .
    4. Refer to: Coolant Pump .

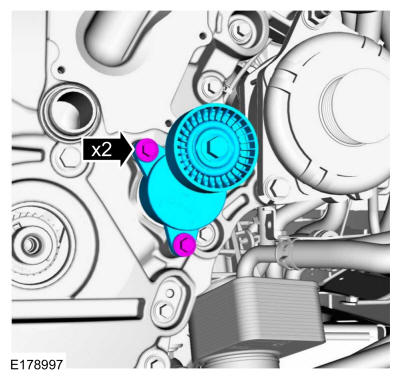

  5. Remove the bolts and the accessory drive belt tensioner.
    GFD309020Courtesy of FORD MOTOR COMPANY

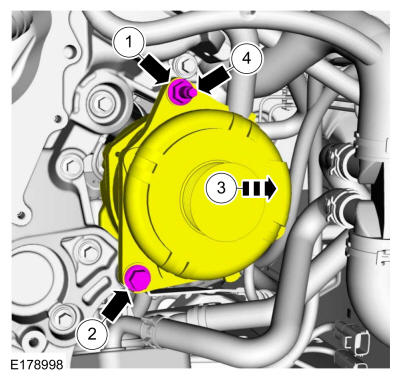

    1. Remove the nut.
    2. Remove the bolt.
    3. Position the generator aside.
    4. Remove the stud bolt.
    GFD309021Courtesy of FORD MOTOR COMPANY
  7. Detach the wiring harness retainer from the accessory drive belt tensioner.
    GFD309022Courtesy of FORD MOTOR COMPANY

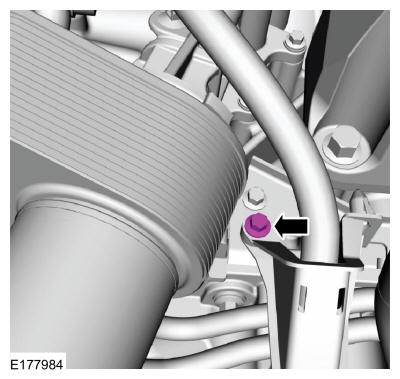

  8. Remove the wiring harness conduit bolt.
    GFD309023Courtesy of FORD MOTOR COMPANY
  9. Remove the wiring harness conduit nut and position the harness aside.
    GFD309024Courtesy of FORD MOTOR COMPANY

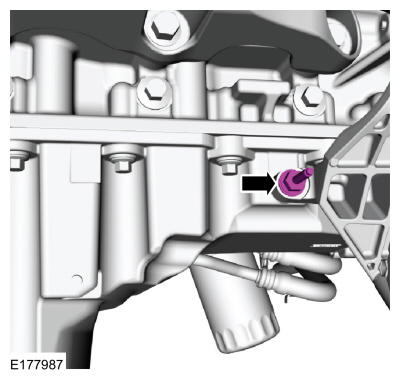

  10. Remove the power steering pump bracket stud bolt.
    GFD309025Courtesy of FORD MOTOR COMPANY

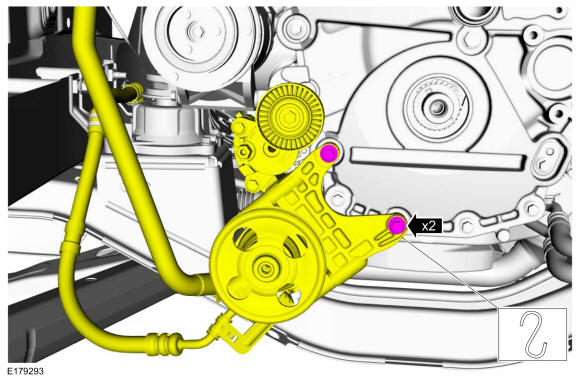

  11. Remove the bolts and position aside and support the power steering pump and hoses.
    GFD309026Courtesy of FORD MOTOR COMPANY

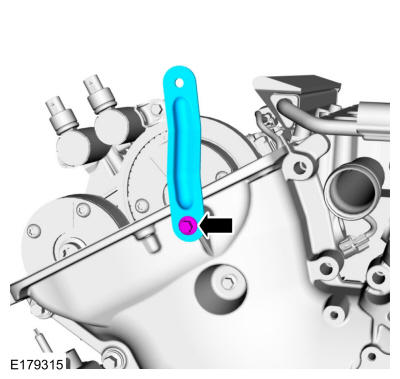

  12. Remove the bolt and the upper intake manifold support bracket.
    GFD309027Courtesy of FORD MOTOR COMPANY

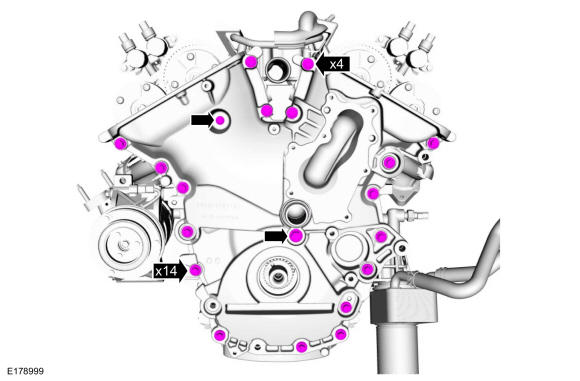

  13. Remove the engine front cover bolts.
    GFD309028Courtesy of FORD MOTOR COMPANY

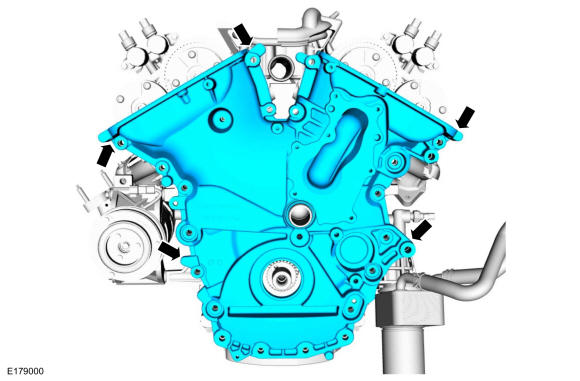

  14. Using a pry tool, locate the pry pads shown and pry the engine front cover loose and remove.
    GFD309029Courtesy of FORD MOTOR COMPANY

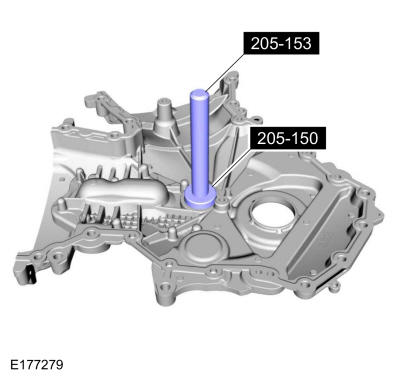

  15. Using the special tools, remove the engine front cover to coolant pipe seal. Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.
    GFD309030Courtesy of FORD MOTOR COMPANY

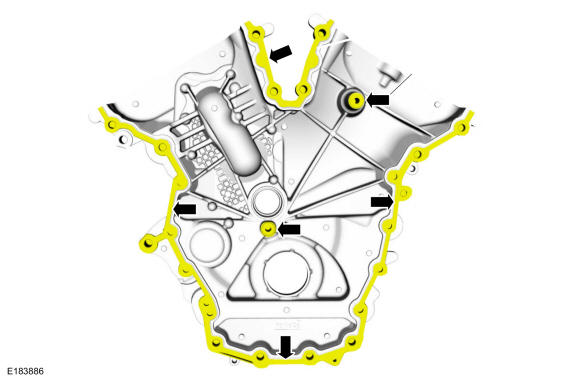

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

    GFD309031Courtesy of FORD MOTOR COMPANY

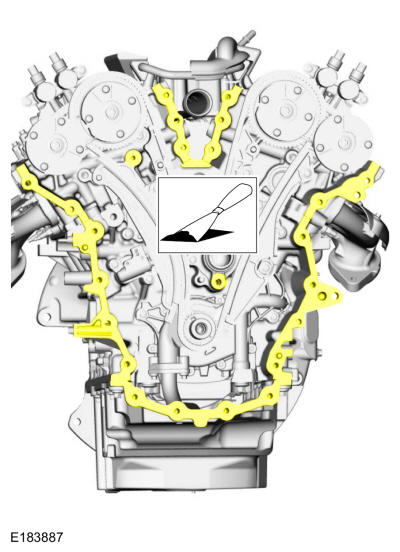

  17. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD309032Courtesy of FORD MOTOR COMPANY
