Cylinder Head RH: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed. Refer to VCT unit.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
Disconnect the LH HO2S catalyst monitor sensor and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Disconnect the RH HO2S and catalyst monitor sensor.

Courtesy of FORD MOTOR COMPANY
NOTE: Clean the catalytic converter-to-muffler sealing surfaces.

Remove the exhaust flange bolts and detach the exhaust hanger.

Courtesy of FORD MOTOR COMPANY

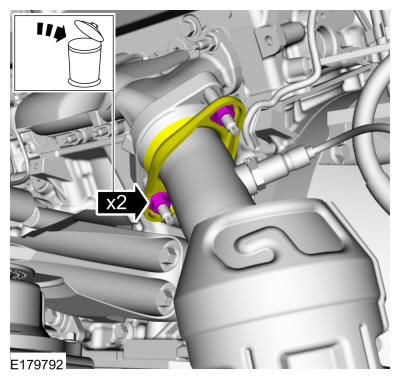

Remove and discard the LH catalytic converter flange nuts.

Courtesy of FORD MOTOR COMPANY

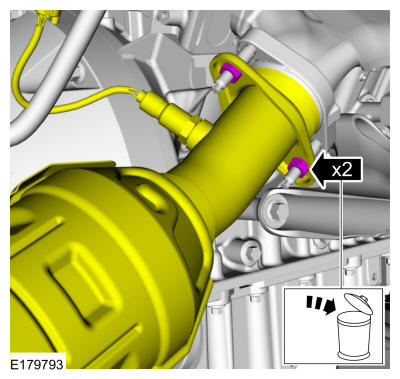

NOTE: Clean the catalytic converter-to-exhaust manifold sealing surfaces.

Remove and discard the RH catalytic converter flange nuts and position rearward.

Courtesy of FORD MOTOR COMPANY
Remove the RH camshafts. Refer to: Camshafts .
Remove the lower intake manifold. Refer to: Lower Intake Manifold .
Disconnect the RH CMP sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the RH CMP sensors.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use power tools to remove the bolt or damage to the upper RH timing chain guide may occur.

Remove the bolt and the RH timing chain guide.

Courtesy of FORD MOTOR COMPANY
Disconnect the CHT sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

Remove the valve tappets.

Courtesy of FORD MOTOR COMPANY
Inspect and install new components as necessary.

Courtesy of FORD MOTOR COMPANY

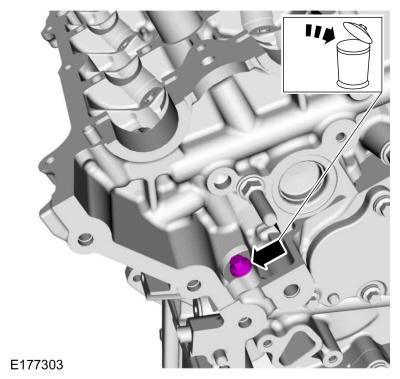

Remove and discard the M6 bolt.

Courtesy of FORD MOTOR COMPANY
- NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

  NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface

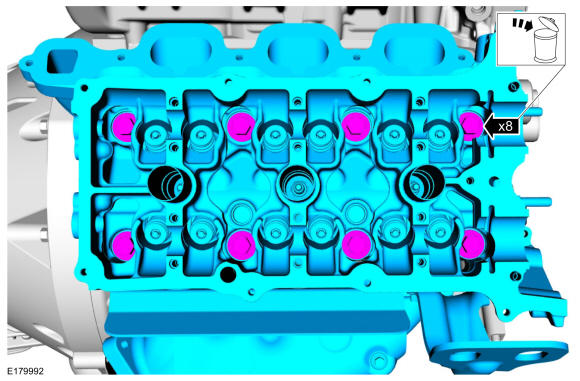

  NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

  Remove and discard the bolts.
- Remove the cylinder head.
Courtesy of FORD MOTOR COMPANY

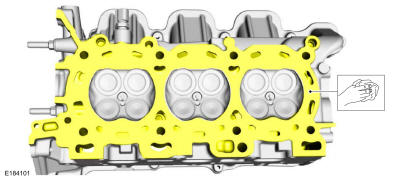

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

Make sure that the mating faces of the cylinder head are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY
Remove and discard the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

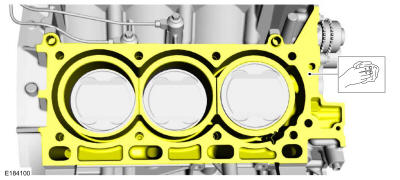

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

Make sure that the mating faces of the engine block are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY
Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. Refer to: Cylinder Head Distortion . Refer to: Cylinder Block Distortion .
