Cylinder Head LH: Installation

WARNING: This page is about a different variant/trim than selected.

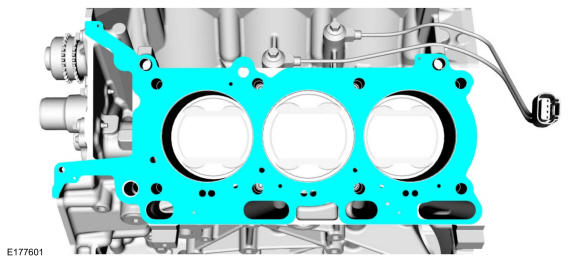

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

NOTE: Install new cylinder head bolts.

Install the cylinder head and the new bolts.

Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 26 lb.ft (35 Nm) Stage 3: 90 deg. Stage 4: 90 deg. Stage 5: 45 deg.

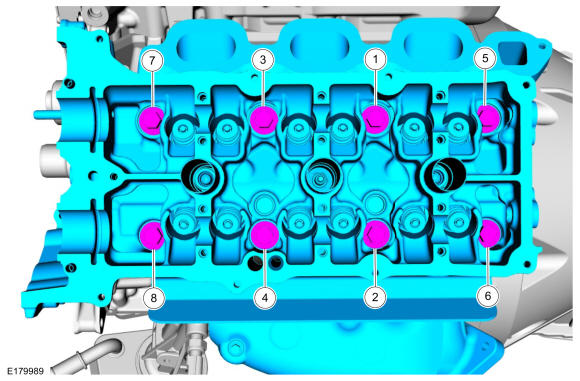

Fig 1: LH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY

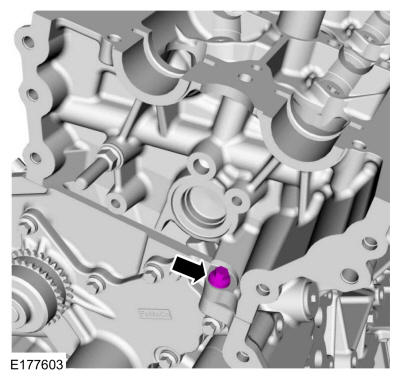

Install the M6 bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

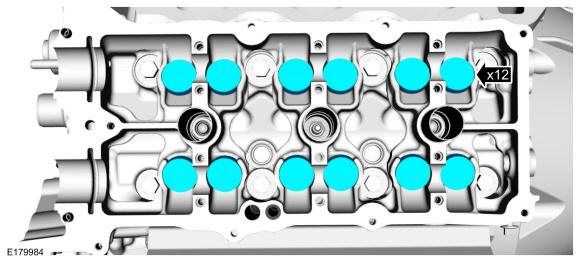

NOTE: The valve tappets must be installed in their original positions.

Lubricate the valve tappets with clean engine oil and install.

Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use power tools to install the bolt or damage to the upper LH timing chain guide may occur.

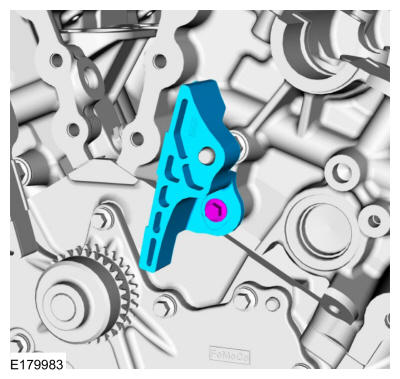

Install the upper LH timing chain guide and the bolt.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the O-ring seals with clean engine oil.

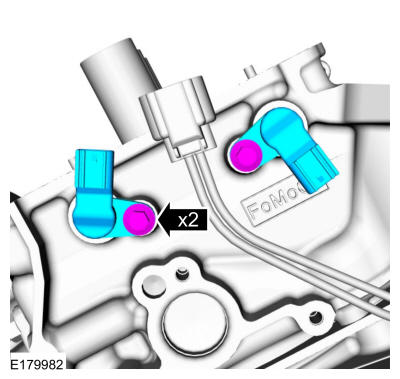

Install the CMP sensors and the bolts.

Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

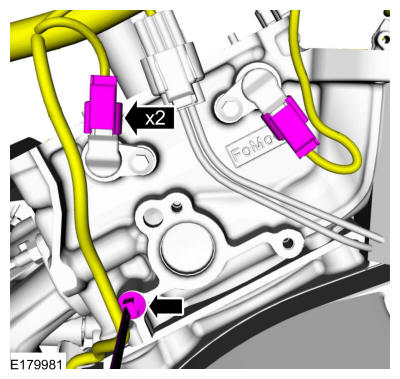

Connect the CMP sensors electrical connectors and attach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Install the lower intake manifold. Refer to: Lower Intake Manifold .
Install the LH camshafts. Refer to: Camshafts .

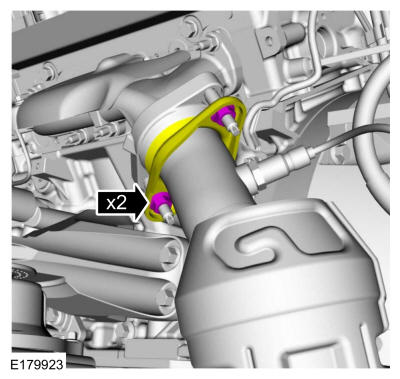

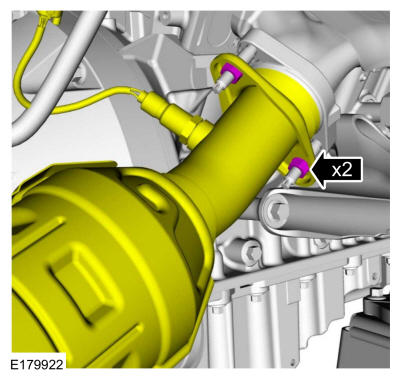

Position the RH catalytic converter and install new flange nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH catalytic converter flange and new nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

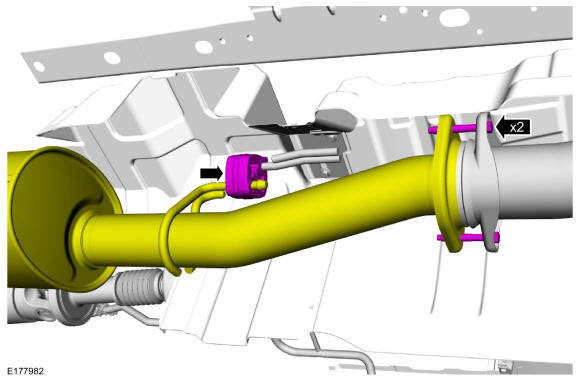

Attach the exhaust hanger and install the exhaust flange bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

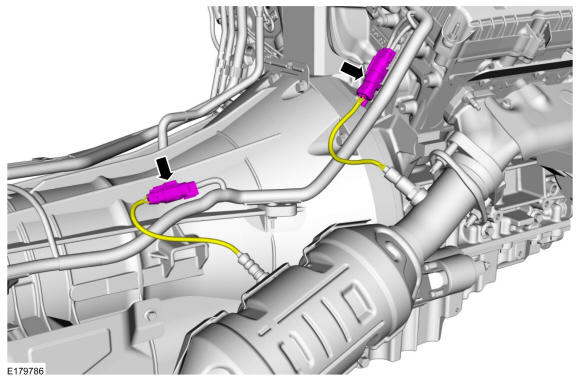

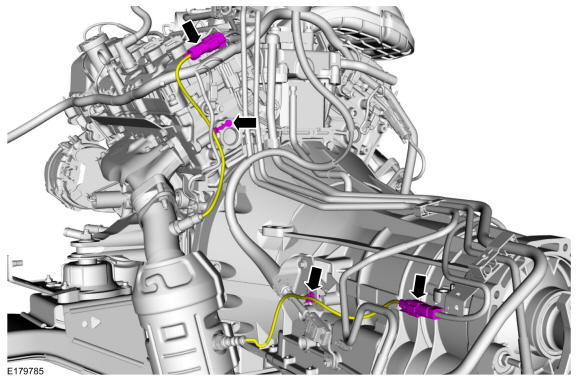

Connect the RH HO2S and catalyst monitor sensor.

Courtesy of FORD MOTOR COMPANY
Connect the LH HO2S catalyst monitor sensor and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

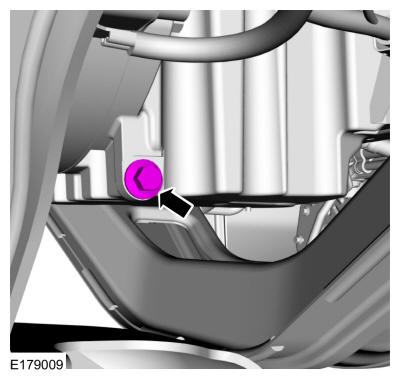

- Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
  Torque: 20 lb.ft (27 Nm)
Courtesy of FORD MOTOR COMPANY

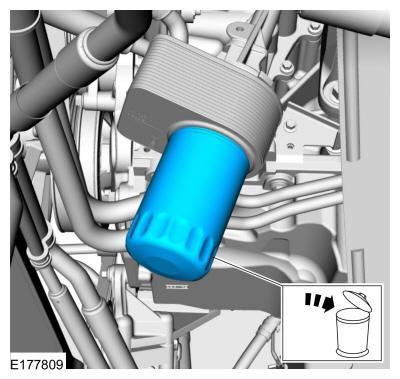

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the engine oil filter seal.

Install a new engine oil filter.

Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY

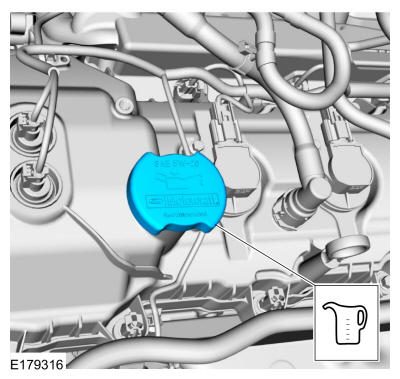

Fill the engine with clean engine oil. Refer to: Specifications .
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
Start and check the exhaust system for leaks.
