Crankshaft Front Seal: Installation
WARNING: This page is about a different variant/trim than selected.

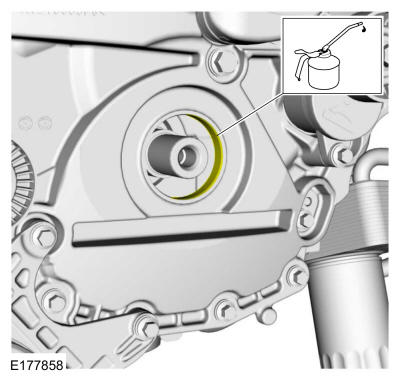

- Lubricate the crankshaft front seal bore with clean engine oil.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

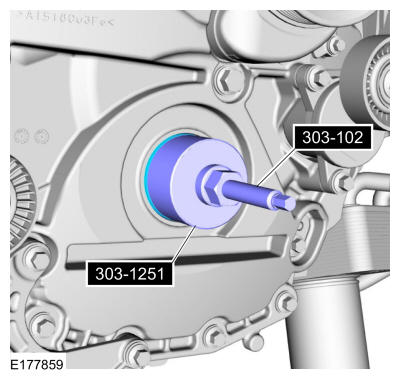

- Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley, 303-1251 Installer, Front Seal.

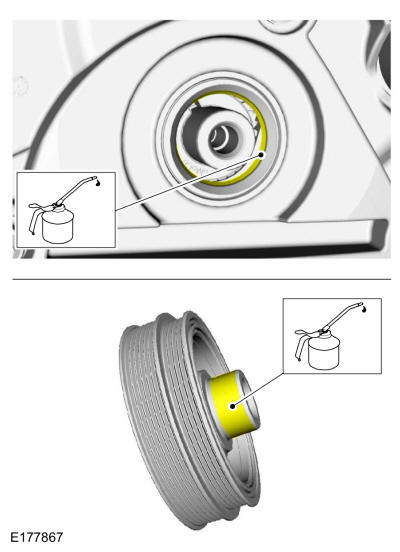

- Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

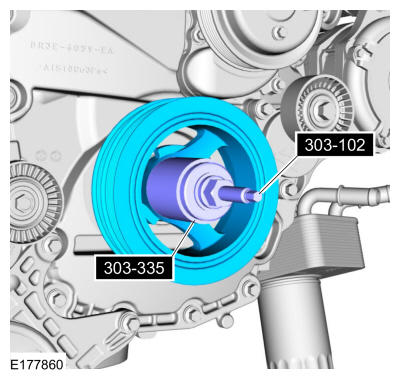

- Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal, 303-102 Installer, Crankshaft Pulley.

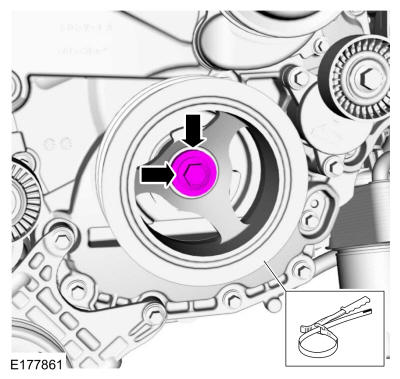

- Using the strap wrench, install the new crankshaft bolt and the washer and tighten in 4 stages. Use the General Equipment: Strap Wrench
Torque: Stage 1: 89 lb.ft (120 Nm) Stage 2: Loosen: 1 turn(s) Stage 3: 37 lb.ft (50 Nm) Stage 4: 90 deg.
- Install the cooling module. Refer to: Cooling Module .
- Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
- After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
