Cylinder Head: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: If replacing the cylinder head, do not reuse the secondary timing chain tensioners, they must be replaced or damage to the engine may occur. Refer to Variable Camshaft Timing (VCT) Unit.

LH cylinder head

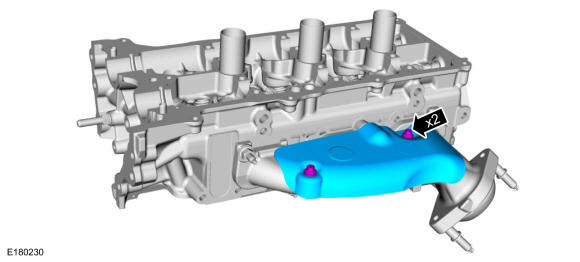

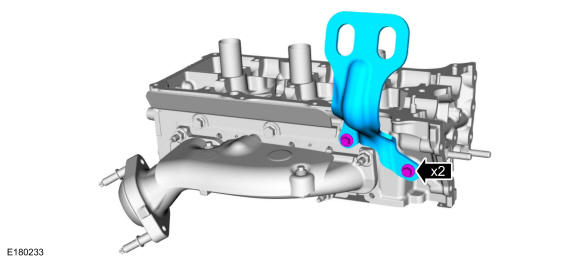

Remove the bolts and the exhaust manifold heat shield.

Courtesy of FORD MOTOR COMPANY

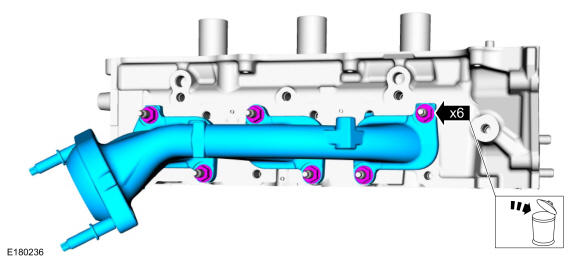

- Remove the nuts and the exhaust manifold.
- Discard the nuts.
Courtesy of FORD MOTOR COMPANY
Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

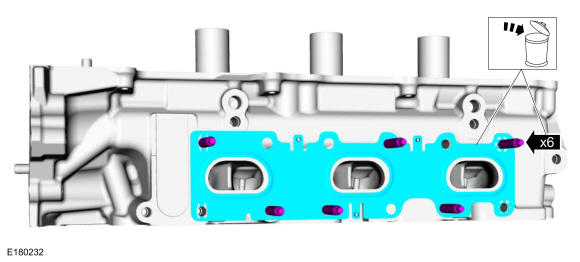

Remove and discard the studs and the exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

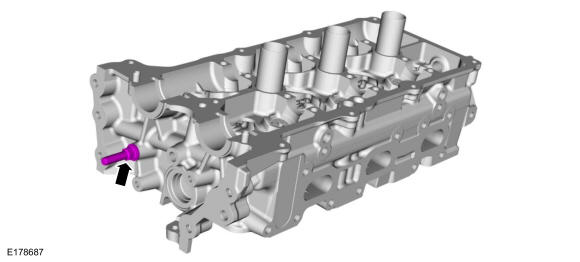

Remove the timing chain guide pin.

Courtesy of FORD MOTOR COMPANY

RH cylinder head
Remove the bolts and the engine lift eye.

Courtesy of FORD MOTOR COMPANY

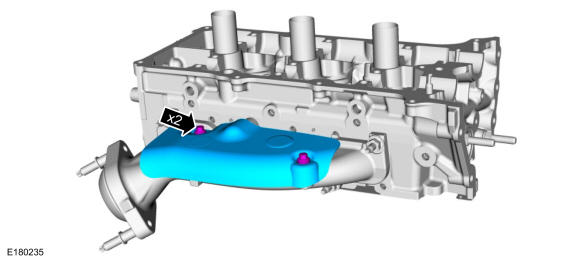

Remove the bolts and the exhaust manifold heat shield.

Courtesy of FORD MOTOR COMPANY

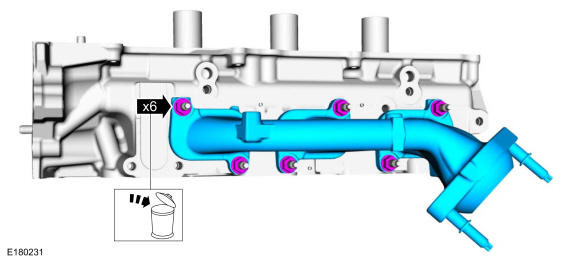

- Remove the nuts and the exhaust manifold.
- Discard the nuts.
Courtesy of FORD MOTOR COMPANY
Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

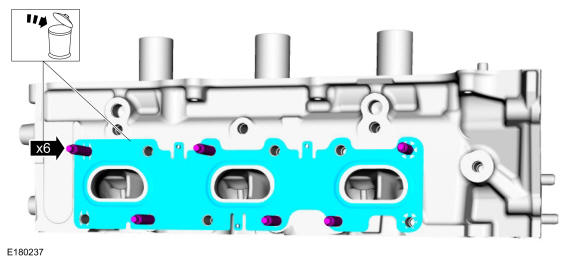

Remove and discard the studs and the exhaust manifold gasket.

Courtesy of FORD MOTOR COMPANY

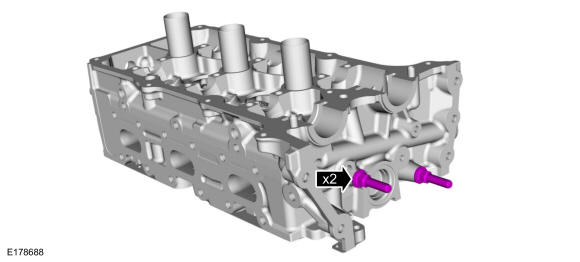

Remove the timing chain tensioner arm and timing chain guide pins.

Courtesy of FORD MOTOR COMPANY

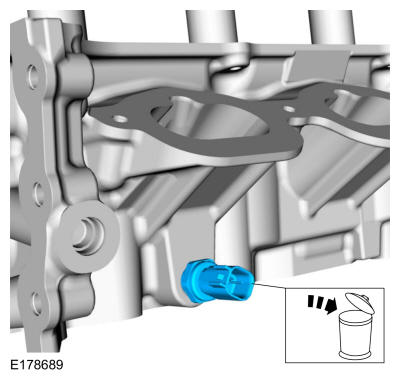

Remove and discard the CHT sensor.

Courtesy of FORD MOTOR COMPANY

All cylinder heads
Remove the spark plugs. Refer to: Spark Plugs .
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

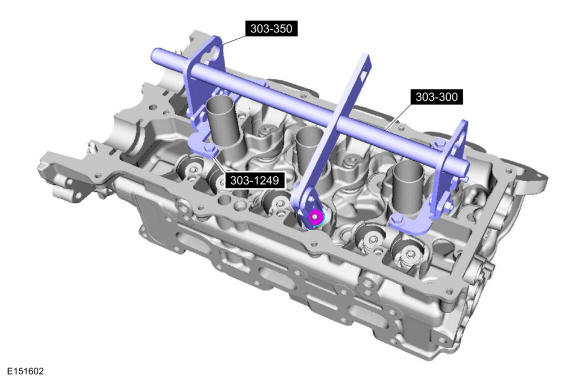

Using the special tools, remove the valve collet, valve spring retainer and the valve spring. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350 (T89P-6565-A) Compressor, Valve Spring, 303-1249 Valve Spring Compressor.

Courtesy of FORD MOTOR COMPANY

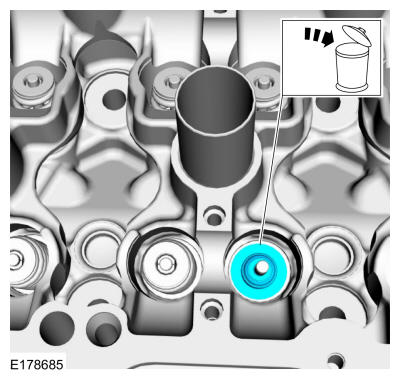

Remove the valve stem seal.

Courtesy of FORD MOTOR COMPANY

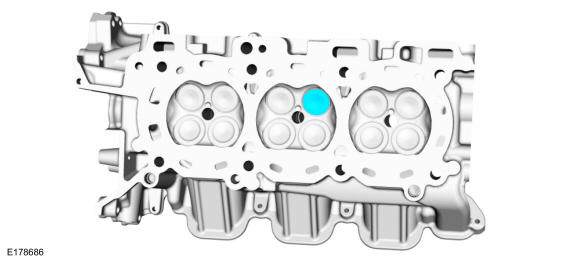

Remove the valve.

Courtesy of FORD MOTOR COMPANY
Repeat the previous 3 steps for each valve.
