Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.

All cylinder heads

Install the valve.

Courtesy of FORD MOTOR COMPANY

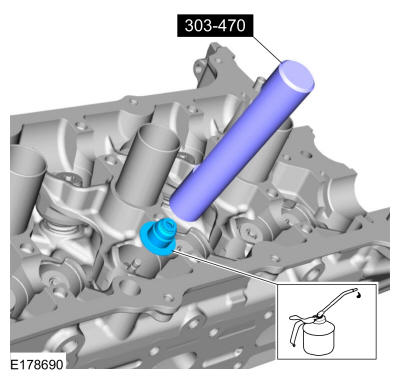

Lubricate with clean engine oil and using the special tool, install the valve stem seal. Use Special Service Tool: 303-470 (T94P-6510-CH) Installer, Valve Stem Oil Seal.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the valve spring, valve spring retainer and the valve collet. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350 (T89P-6565-A) Compressor, Valve Spring, 303-1249 Valve Spring Compressor.

Courtesy of FORD MOTOR COMPANY
Repeat the previous 3 steps for each valve.
Install the spark plugs. Refer to: Spark Plugs .
RH cylinder head
Install the timing chain tensioner arm and timing chain guide pins.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

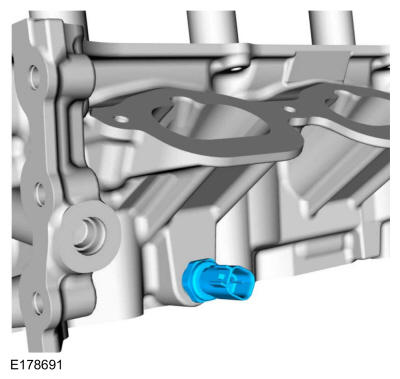

Install a new CHT sensor.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

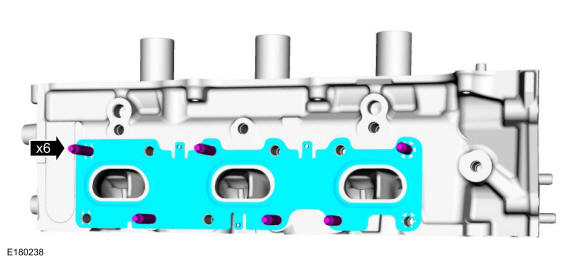

Install the new the studs and the exhaust manifold gasket.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

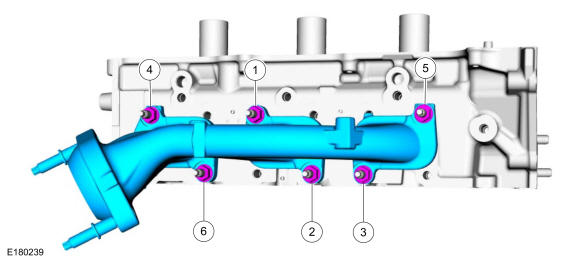

Install the exhaust manifold and the new nuts.
Torque: Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the exhaust manifold heat shield and the bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the lift eye and the bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

LH cylinder head
Install the timing chain guide pin.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

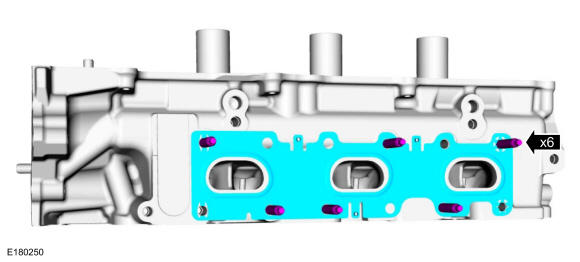

Install the new the studs and the exhaust manifold gasket.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

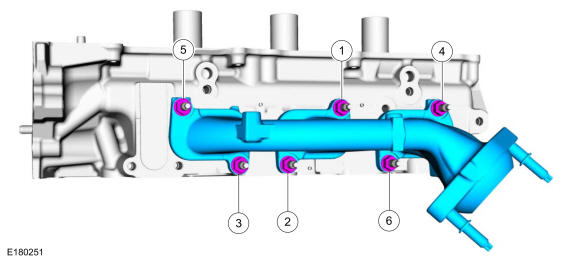

Install the exhaust manifold and the new nuts.
Torque: Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the exhaust manifold heat shield and the bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
