Section 14 (Engine - 3.7L DURATEC (199KW/270PS)): Assembly: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	205-142 (T80T-4000-J) Installer, Differential Bearing Cone

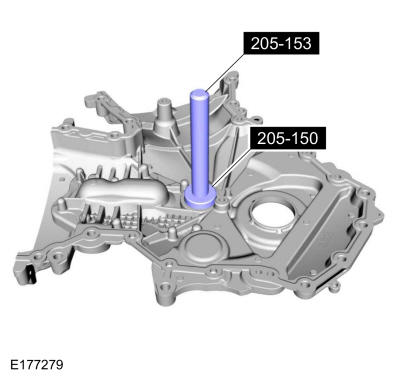

Courtesy of FORD MOTOR COMPANY	205-150 (T80T-4000-S) Installer, Spindle Bearing
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle

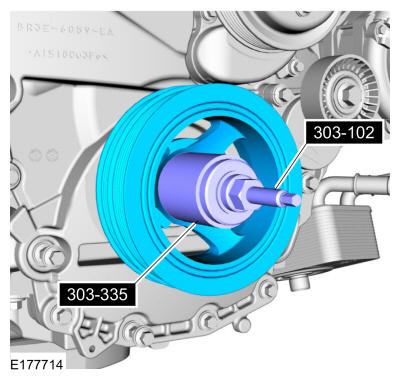

Courtesy of FORD MOTOR COMPANY	303-102 Installer, Crankshaft Pulley
Courtesy of FORD MOTOR COMPANY	303-1245 Engine Lift Eye TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW

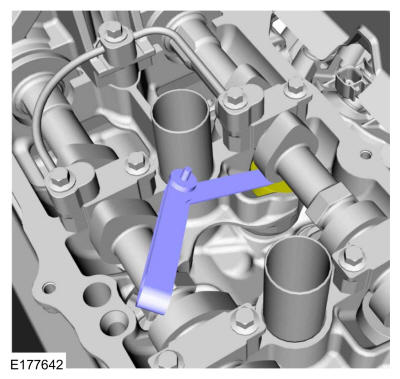

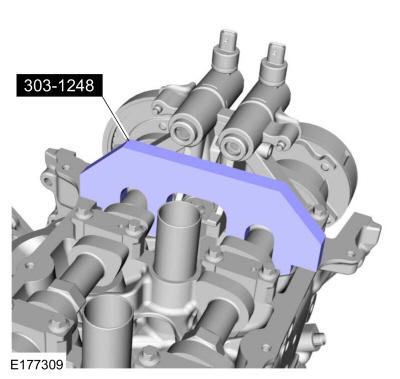

Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools TKIT-2006UF-FLM TKIT-2006UF-ROW

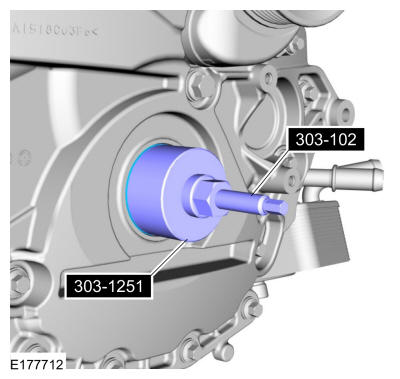

Courtesy of FORD MOTOR COMPANY	303-1251 Installer, Front Seal TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1530 Tool, Chain Tensioner Hold Down TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	303-335 (T88T-6701-A) Installer, Front Cover Oil Seal TKIT-1988-FLM TKIT-1988-F

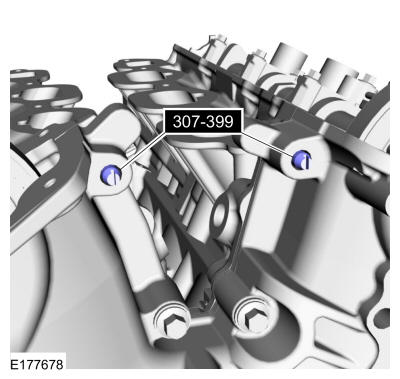

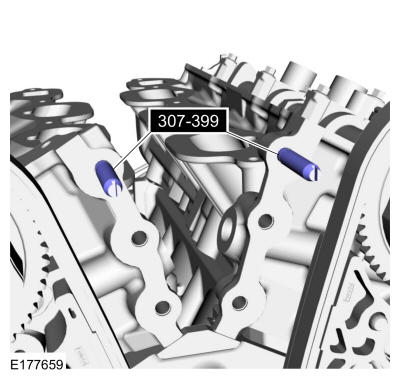

Courtesy of FORD MOTOR COMPANY	307-399 Alignment Pins, Transmission Fluid Pump TKIT-2002N-DEW TKIT-2000AP-FLM/LM
Feeler Gauge
Strap Wrench
Floor Crane
Mounting Stand
Round-Ended Steel Rule
Piston Ring Compressor

Materials

1. Using a hexagonal screwdriver, install the piston oil cool valves.

   Torque: 35 lb.in (4 Nm)

   Courtesy of FORD MOTOR COMPANY

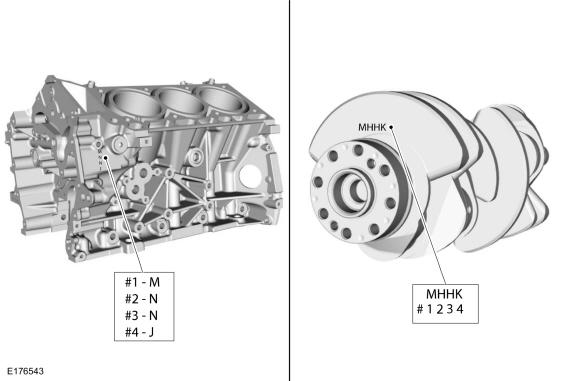

2. NOTE: This step is for selecting the correct main bearings.
   NOTE: The #1 main bearing is at the front of the engine block.
   • Select the crankshaft main bearings for each crankshaft journal.
   • Record the code that is on the cylinder block face.
   • Record the code that is on the crankshaft flange.
   • The first letter is for main No. 1 and the next letters are for mains 2, 3 and 4.

   Courtesy of FORD MOTOR COMPANY

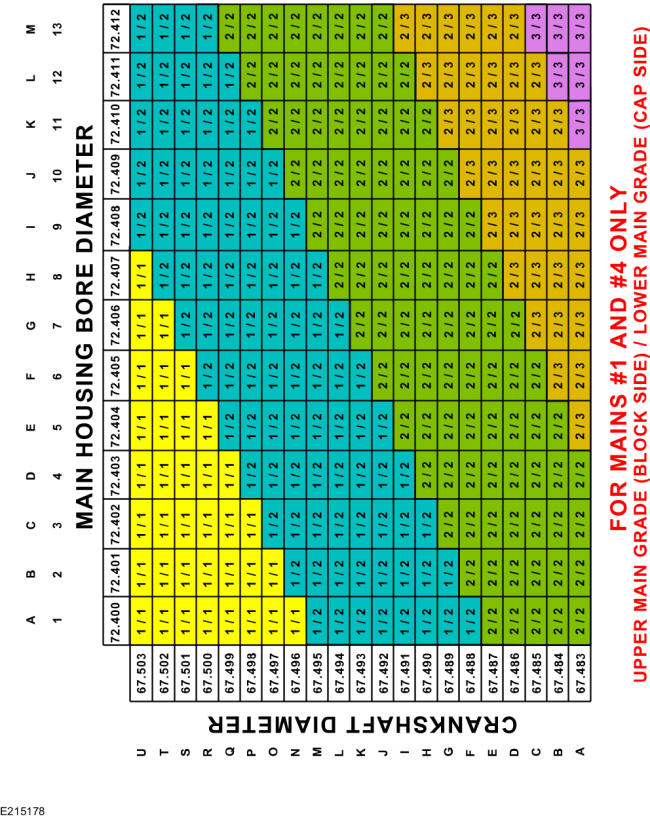

3. NOTE: This chart is continued in the next step.
   NOTE: This chart is for selecting main bearings 1 and 4 only.
   • Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 1 and 4.
   • Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.
   • Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade(s) for the No. 1 crankshaft main bearing.
   • As an example, if the engine block code letter is "M" and the crankshaft code letter is "M", the correct bearing grade for this main bearing is a "2" for the upper bearing and a "2" for the lower bearing.
   • Repeat the above steps using the fourth letter of the block and crankshaft codes to select the No. 4 bearing.

   Courtesy of FORD MOTOR COMPANY

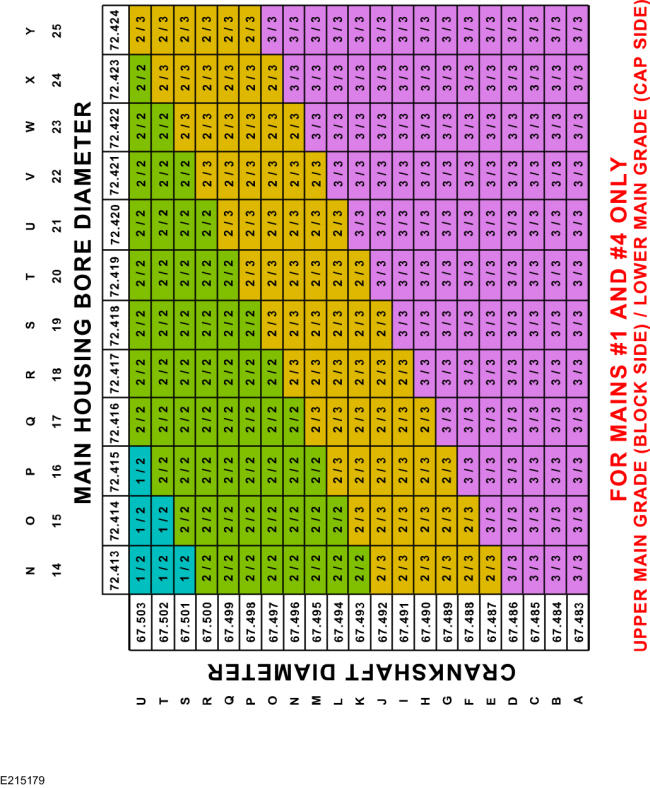

4. NOTE: This chart is for selecting main bearings 1 and 4 only.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: This chart is continued in the next step.
   NOTE: This chart is for selecting main bearings 2 and 3 only.
   • Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 2 and 3.
   • Read the second letter of the engine block main bearing code and the second letter of the crankshaft main bearing code.
   • Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade for the No. 2 crankshaft main bearing.
   • As an example, if the engine block code letter is "N" and the crankshaft code letter is "H", the correct bearing grade for this main bearing is "2".
   • Repeat the above steps using the third letter of the block and crankshaft codes to select the No. 3.

   Courtesy of FORD MOTOR COMPANY

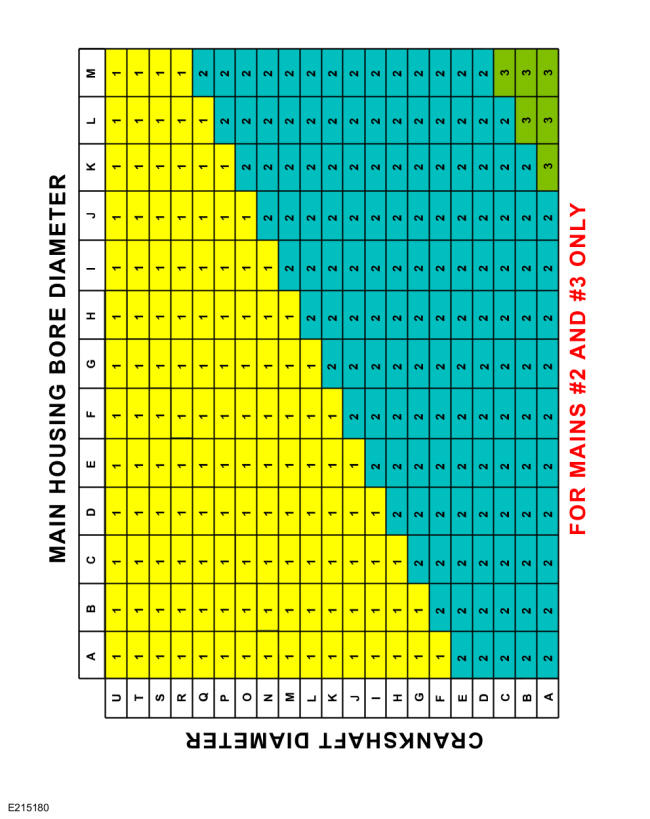

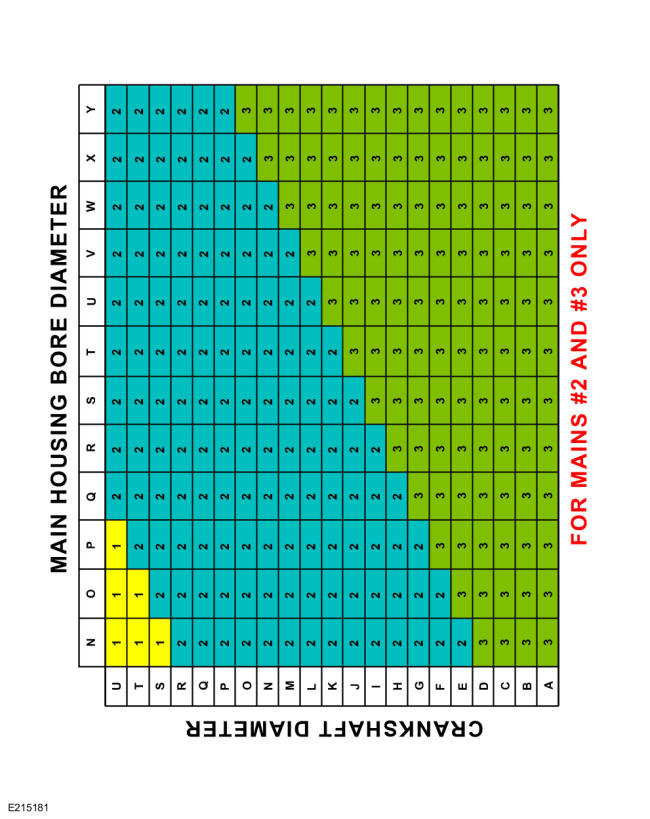

6. NOTE: This chart is for selecting main bearings 2 and 3 only.

   Courtesy of FORD MOTOR COMPANY

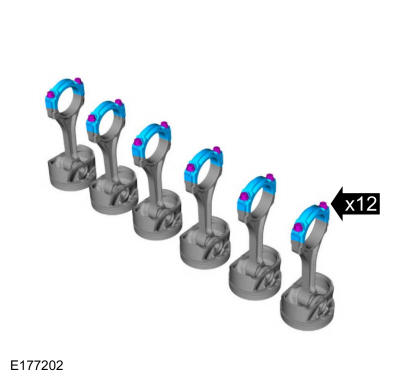

7. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

   Using the original connecting rod cap bolts, install the connecting rod caps and bolts.

   Torque: Stage 1: 17 lb.ft (23 Nm) Stage 2: 32 lb.ft (43 Nm) Stage 3: 90 deg.

   Courtesy of FORD MOTOR COMPANY

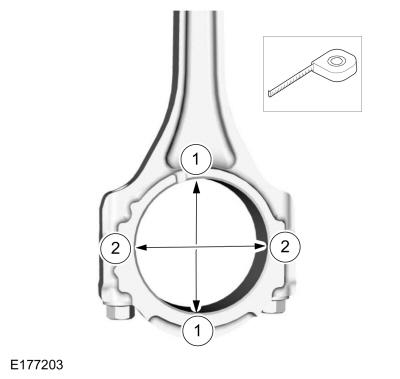

8. Measure the connecting rod large end bore in 2 directions.

   Courtesy of FORD MOTOR COMPANY

9. • Remove the bolts and the rod cap.
   • Discard the bolts.

   Courtesy of FORD MOTOR COMPANY

10. Measure each of the crankshaft connecting rod bearing journal diameters in at least 2 directions.

    Courtesy of FORD MOTOR COMPANY

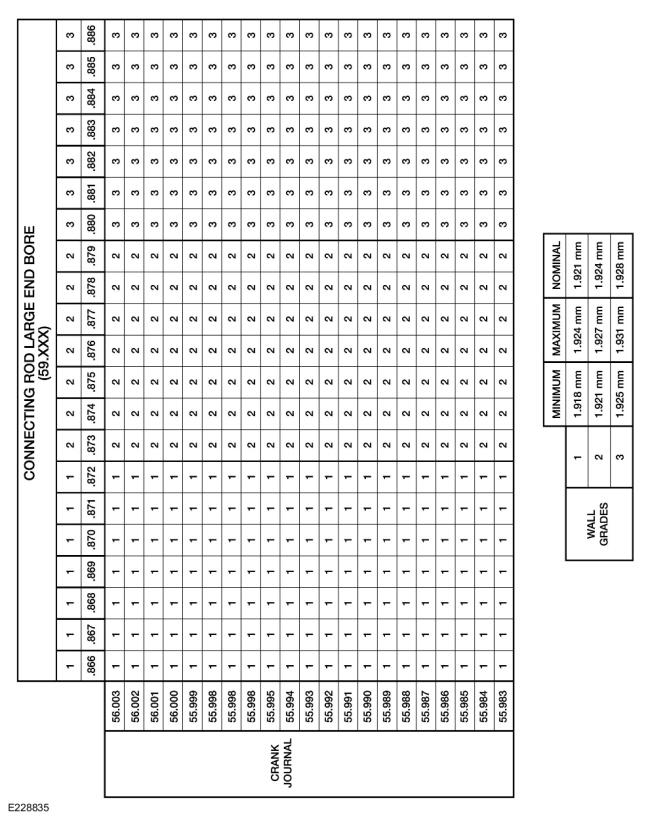

11. Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.

    Courtesy of FORD MOTOR COMPANY

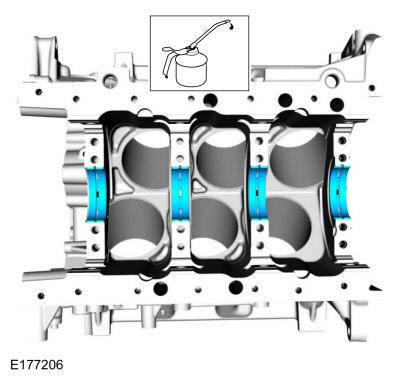

12. NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

    Lubricate the upper crankshaft main bearings with clean engine oil and install in the cylinder block.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Do not install the upper thrust bearings until the crankshaft is installed.
    NOTE: Lubricate the thrust surfaces of the crankshaft with clean engine oil.

    Install the crankshaft.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    Courtesy of FORD MOTOR COMPANY

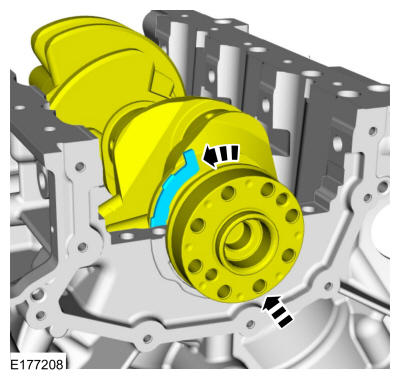

14. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

    Push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 4 rear bulkhead.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

    Push the crankshaft forward and install the front crankshaft upper thrust washer at the front of the No. 4 rear bulkhead.

    Courtesy of FORD MOTOR COMPANY

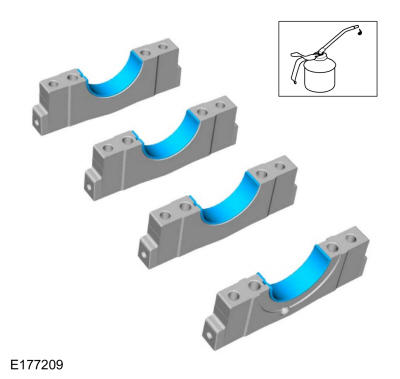

16. Lubricate the crankshaft lower main bearings with clean engine oil and install them into the main bearing caps. Check seating and squareness of the bearings to make sure of proper seating in caps.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    Courtesy of FORD MOTOR COMPANY

17. NOTE: Early build engines have a 13 mm bolt head with coarse threads for the main bearing caps. Late build engines have a 15 mm bolt head with fine threads for the main bearing caps.
    NOTE: Early build engine shown, late build engine similar.

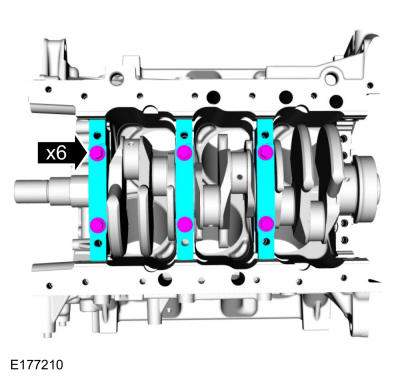

    Position the No. 1, No. 2 and No. 3 main bearing caps on the cylinder block and, keeping the caps as square as possible, alternately draw the caps down evenly using the new bolts until the main bearing caps are seated.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.
    NOTE: To aid in assembly, apply petroleum jelly to the back of the crankshaft thrust washer.

    Install the lower crankshaft thrust washer to the back side of the No. 4 rear main bearing cap, with the tab aligned with the cutout in the main bearing cap.

    Courtesy of FORD MOTOR COMPANY

19. NOTE: Early build engines have a 13 mm bolt head with coarse threads for the main bearing caps. Late build engines have a 15 mm bolt head with fine threads for the main bearing caps.
    NOTE: Early build engine shown, late build engine similar.

    Position main bearing cap No. 4 on the cylinder block and keeping the cap as square as possible, alternately draw the cap down evenly using the new bolts until the main bearing cap is seated.

    Courtesy of FORD MOTOR COMPANY

20. NOTE: Early build engines have a 13 mm bolt head with coarse threads for the main bearing caps. Late build engines have a 15 mm bolt head with fine threads for the main bearing caps.
    NOTE: Early build engine shown, late build engine similar.
    NOTE: While tightening the main bearing vertical bolts, push the crankshaft forward and the No. 4 main bearing cap rearward to seat the crankshaft thrust washers.

    Tighten the main bearing bolts.

    Torque: Early build engines: Stage 1: 24 lb.ft (33 Nm) Stage 2: 135 deg. Late build engines: Stage 3: 20 lb.ft (27 Nm) Stage 4: 180 deg.

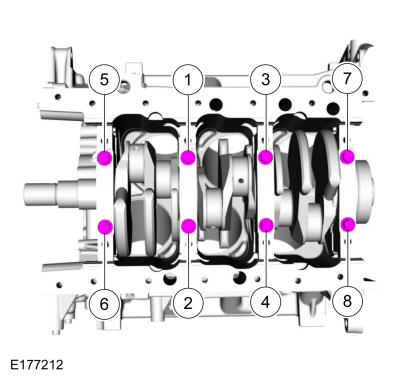

    Fig 1: Main Bearing Tightening Sequence (1 of 2)

    Courtesy of FORD MOTOR COMPANY

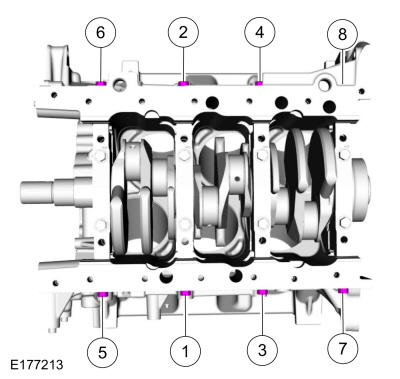

21. Install the new main bearing cap side bolts.

    Torque: Stage 1: 33 lb.ft (45 Nm) Stage 2: 90 deg.

    Fig 2: Main Bearing Tightening Sequence (2 of 2)

    Courtesy of FORD MOTOR COMPANY

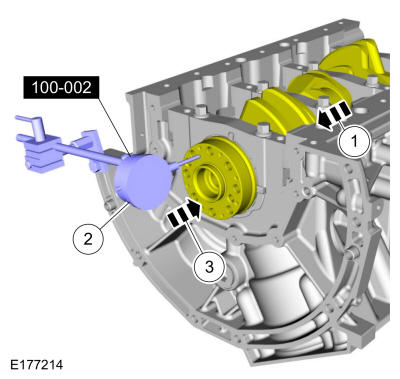

22. 1. Position the crankshaft to the rear of the cylinder block. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
    2. Zero the Dial Indicator Gauge.
    3. Move the crankshaft to the front of the cylinder block. Measure and record the crankshaft end play.

    Courtesy of FORD MOTOR COMPANY

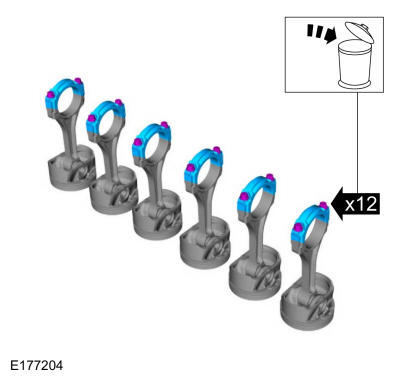

23. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    • Prepare the connecting rod and cap
    • Insert the new bolts in the rod cap.
    • Insert the upper and lower rod bearings into the rod and cap.

    Courtesy of FORD MOTOR COMPANY

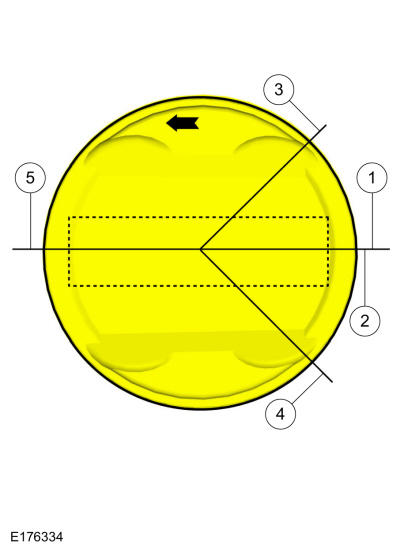

24. NOTE: The piston compression upper and lower ring should be installed with the "O" mark on the ring face pointing up toward the top of the piston.
    NOTE: The arrow on the top of the piston indicates the front of the engine.
    1. Center line of the piston parallel to the wrist pin bore.
    2. Upper compression ring gap location.
    3. Upper oil control segment ring gap location.
    4. Lower oil control segment ring gap location.
    5. Expander ring and lower compression ring gap location.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.
    NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.
    NOTE: Make sure the piston rings are positioned to specifications for installation. Refer to Piston .
    NOTE: If the piston and or connecting rod are being installed new, the piston rod orientation marks and the arrow on the top of the dome of the piston should be facing toward the front of the engine block.
    NOTE: If the piston and connecting rod are to be reinstalled, they must be installed in the same orientation as disassembled.

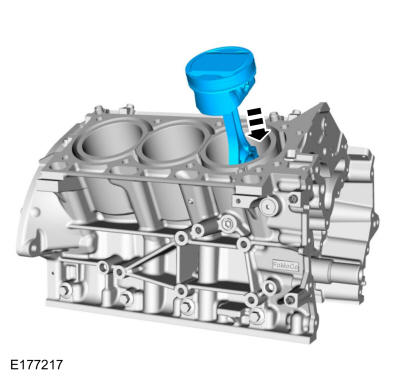

    Using the Piston Ring Compressor, install the piston and connecting rod assemblies. Repeat until all 6 piston assemblies are installed. Use the General Equipment: Piston Ring Compressor

    Courtesy of FORD MOTOR COMPANY

26. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    NOTE: After installation of each piston, connecting rod, rod cap and bolts, rotate the crankshaft to verify smooth operation.

    Install the connecting rod cap and the new bolts.

    Torque: Stage 1: 17 lb.ft (23 Nm) Stage 2: 32 lb.ft (43 Nm) Stage 3: 90 deg.

    Courtesy of FORD MOTOR COMPANY

27. NOTE: Early build engines have a 13 mm bolt head with coarse threads for the main bearing caps. Late build engines have a 15 mm bolt head with fine threads for the main bearing caps.
    NOTE: Early build engine shown, late build engine similar.

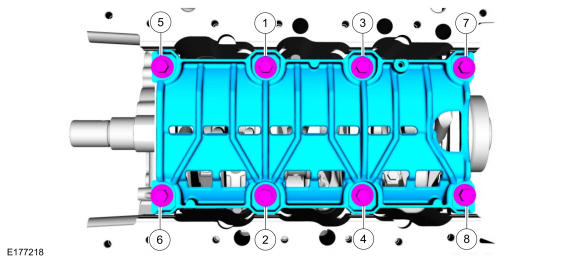

    Install the main bearing cap support brace and the new bolts.

    Torque: Early build engines: Stage 1: 18 lb.ft (24 Nm) Stage 2: 180 deg. Late build engines: Stage 3: 20 lb.ft (27 Nm) Stage 4: 225 deg.

    Fig 3: Main Bearing Cap Support Brace Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
28. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

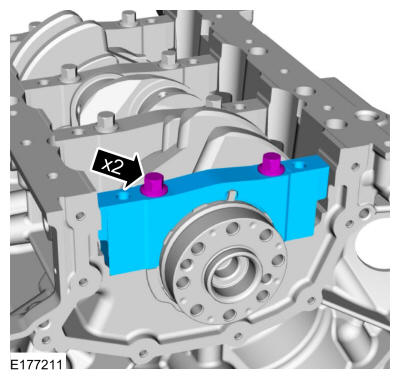

    NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 4 minutes of sealant application.

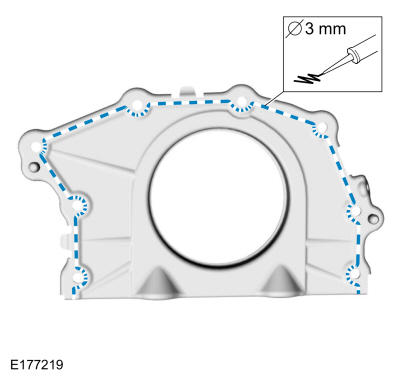

    Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.

    Courtesy of FORD MOTOR COMPANY

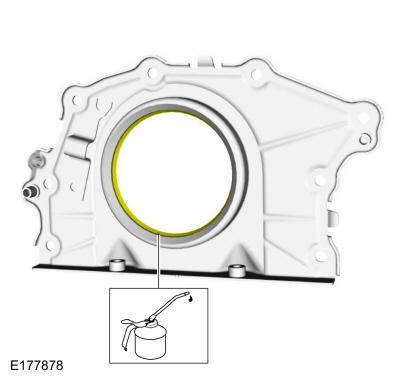

29. Lubricate the crankshaft rear seal with clean engine oil.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    Courtesy of FORD MOTOR COMPANY

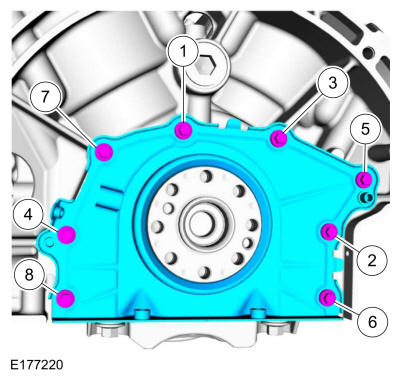

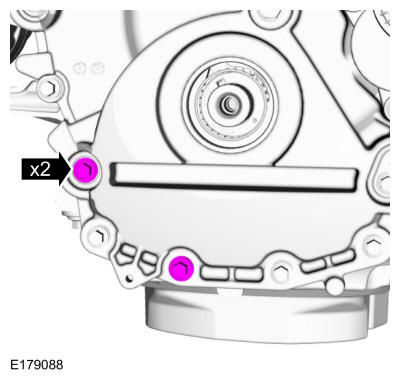

30. Install the crankshaft rear seal and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

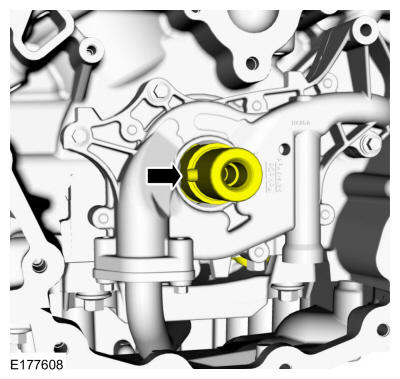

31. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
32. Install the oil pump and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

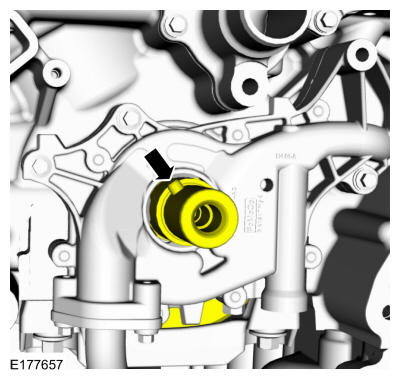

33. Install a new oil pump screen and the pickup tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

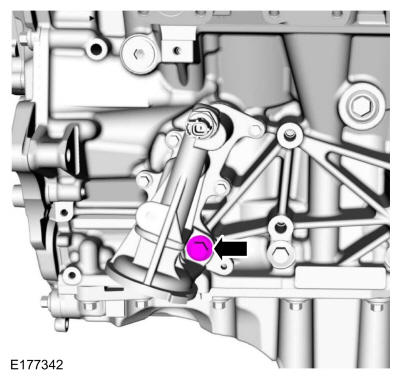

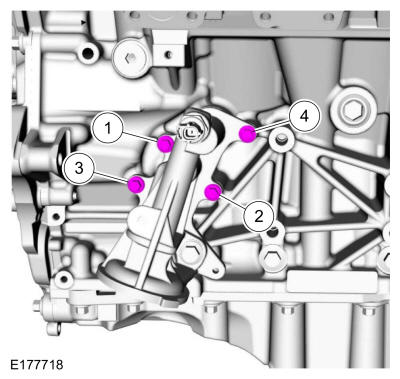

34. Install the oil pump screen and the pickup tube and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

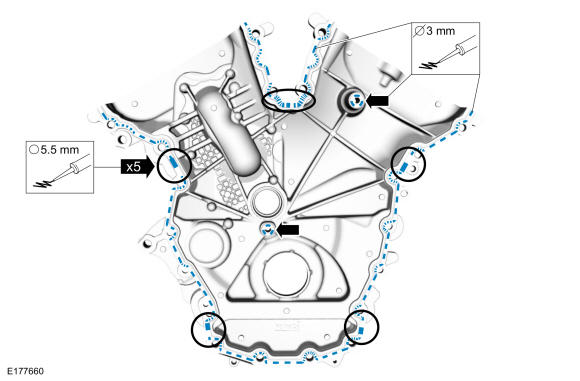

35. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

    Courtesy of FORD MOTOR COMPANY

36. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

    Courtesy of FORD MOTOR COMPANY

37. Install the oil pan and bolts.

    Torque: Stage 1: 27 lb.in (3 Nm) Stage 2: Loosen: 180 deg.

    Courtesy of FORD MOTOR COMPANY

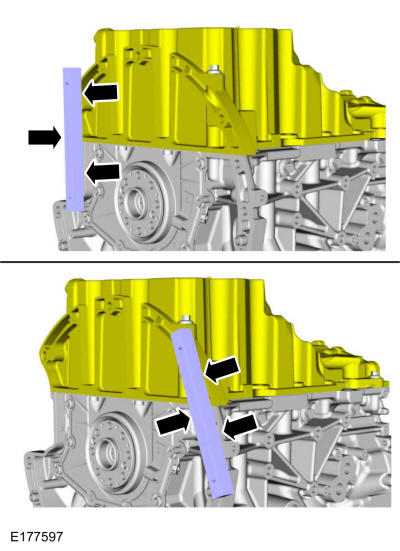

38. Using a straight edge, align the oil pan flush with the rear of the cylinder block at the 2 areas shown. Use the General Equipment: Round-Ended Steel Rule

    Courtesy of FORD MOTOR COMPANY

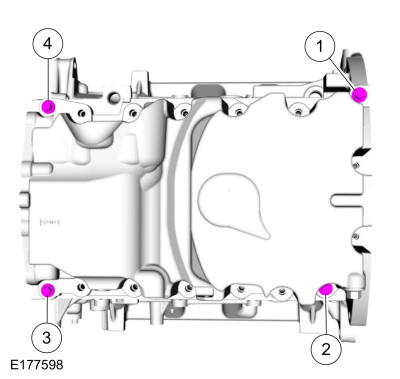

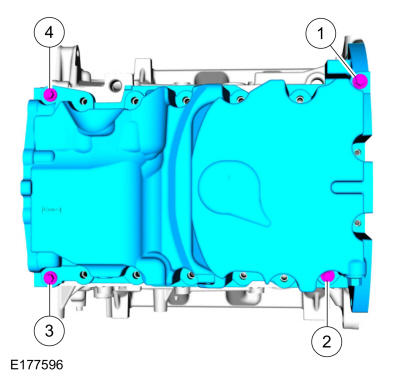

39. Tighten the bolts in the sequence,

    Torque: 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

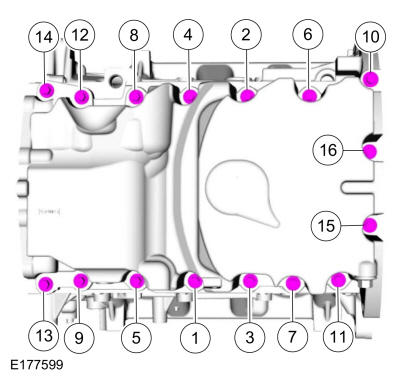

40. Install the remaining oil pan bolts.

    Torque: Stage 1: Tighten bolts 1 through 14 to: 18 lb.ft (24 Nm) Stage 2: Tighten bolt 10 an additional: 90 deg. Stage 3: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

41. Install the channel cover plate and the bolts.

    Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.

    Fig 4: Channel Cover Plate Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
42. Install the KS and the bolts.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

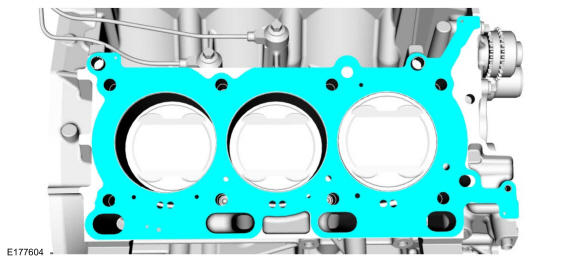

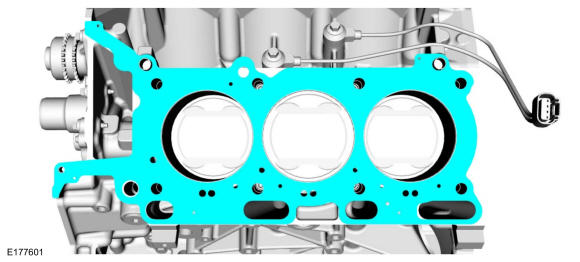

43. Install the LH cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

44. NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

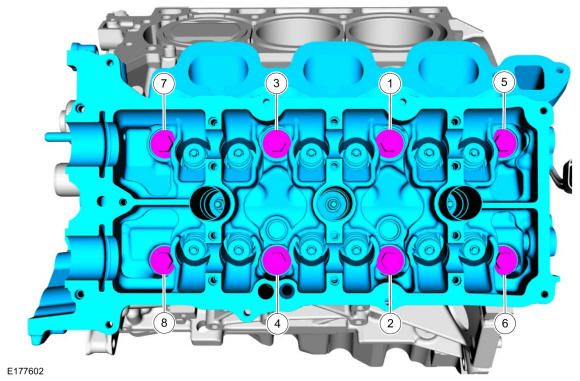

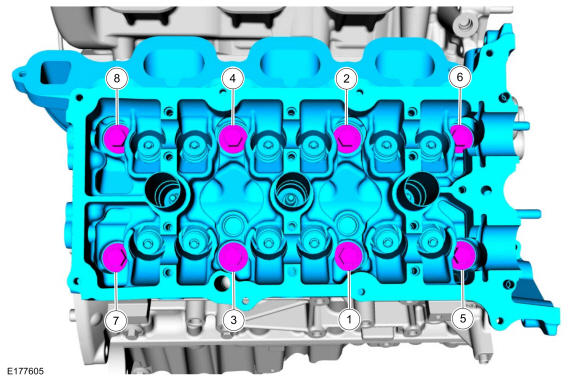

    Install the cylinder head and the new bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 26 lb.ft (35 Nm) Stage 3: 90 deg. Stage 4: 90 deg. Stage 5: 45 deg.

    Courtesy of FORD MOTOR COMPANY

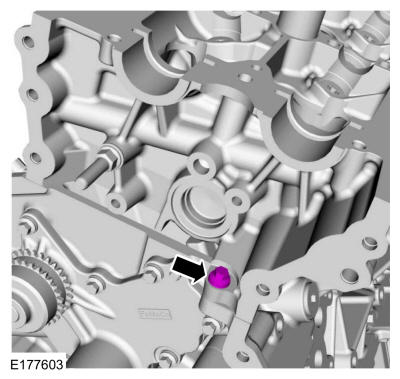

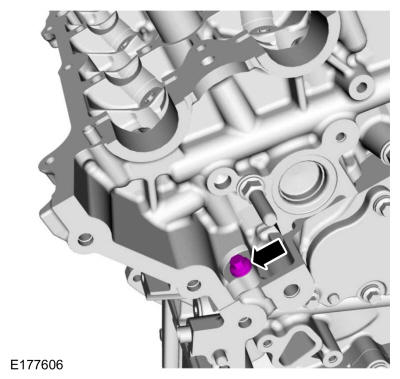

45. Install the M6 bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Install the RH cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

47. NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

    Install the cylinder head and the new bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 26 lb.ft (35 Nm) Stage 3: 90 deg. Stage 4: 90 deg. Stage 5: 45 deg.

    Courtesy of FORD MOTOR COMPANY

48. Install the M6 bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

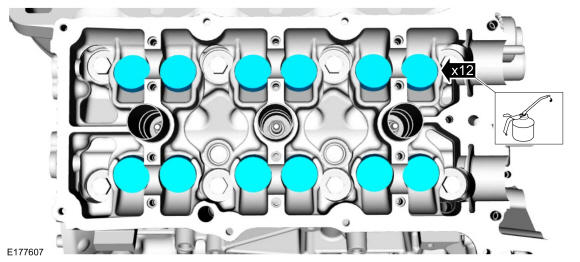

49. NOTE: The valve tappets must be installed in their original positions.
    NOTE: Coat the valve tappets with clean engine oil prior to installation.
    NOTE: RH shown, LH similar.

    Install the valve tappets.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    Courtesy of FORD MOTOR COMPANY

50. Install the RH primary timing chain guide and the bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

51. NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

    Position the crankshaft dowel pin in the 9 o'clock position.

    Courtesy of FORD MOTOR COMPANY

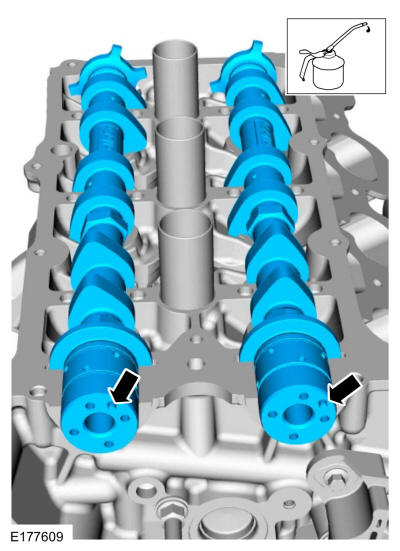

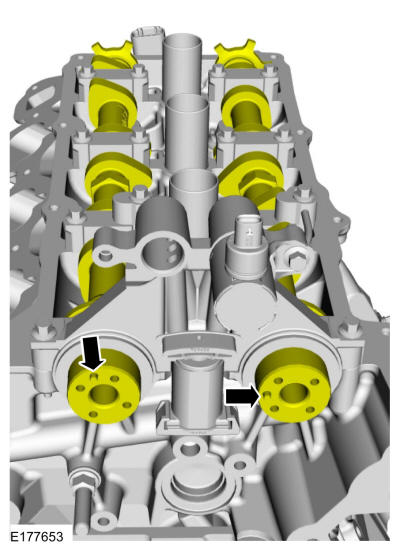

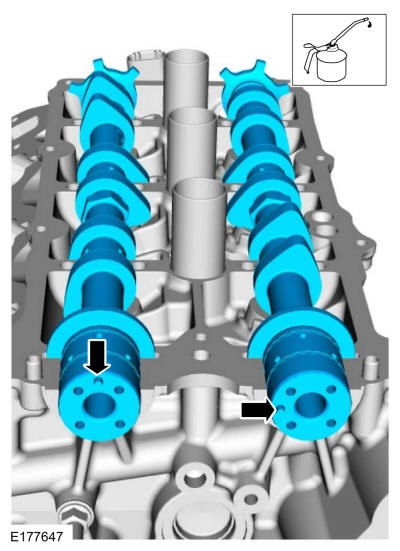

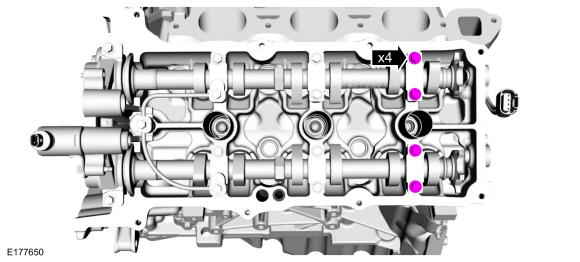

52. NOTE: Coat the camshafts with clean engine oil prior to installation.

    Lubricate the camshafts with clean engine oil and position the camshafts onto the RH cylinder head in the neutral position as shown.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    Courtesy of FORD MOTOR COMPANY

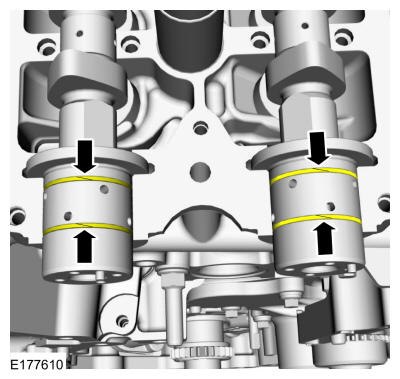

53. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Position the RH camshaft seals gaps as shown.

    Courtesy of FORD MOTOR COMPANY

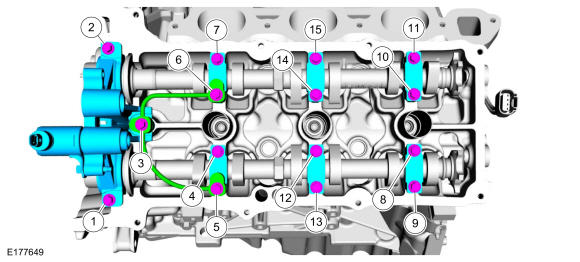

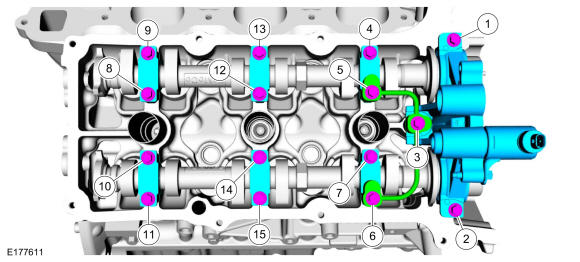

54. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

    Install the camshaft caps, oil tube and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    Courtesy of FORD MOTOR COMPANY

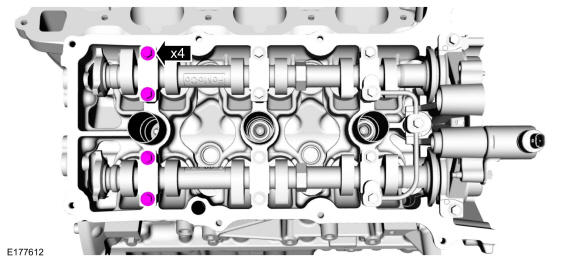

55. Loosen the camshaft cap bolts.

    Courtesy of FORD MOTOR COMPANY

56. Tighten the camshaft cap bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    Courtesy of FORD MOTOR COMPANY

57. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
    NOTE: Use a camshaft sprocket bolt to turn the camshafts.

    Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Adjustment . Use the General Equipment: Feeler Gauge

    Courtesy of FORD MOTOR COMPANY

58. Remove the bolts and the oil tube.

    Courtesy of FORD MOTOR COMPANY

59. Rotate the RH camshafts to TDC.

    Courtesy of FORD MOTOR COMPANY

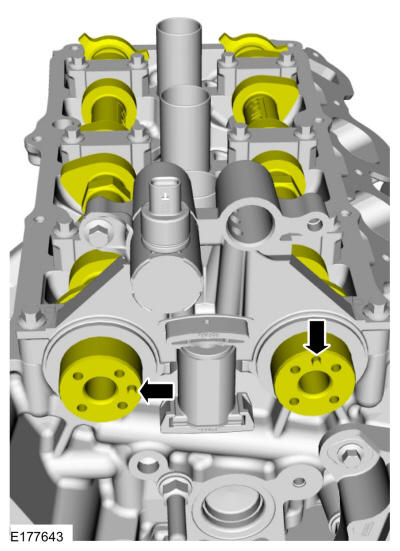

60. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

61. NOTE: The VCT oil control solenoids are removed for clarity.

    Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

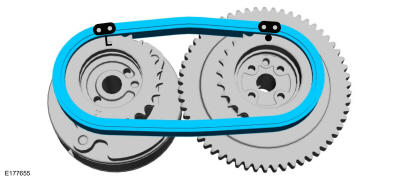

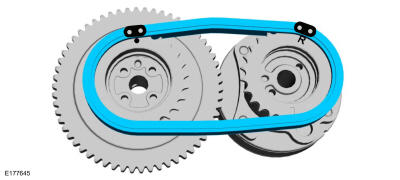

62. Align the colored links with the timing marks and assemble the RH VCT units.

    Courtesy of FORD MOTOR COMPANY

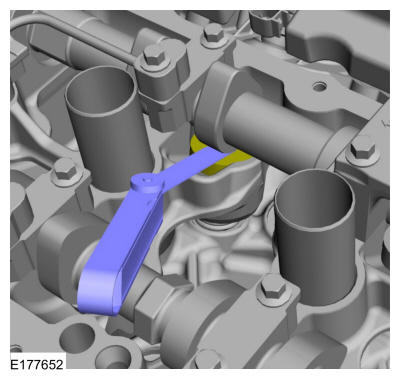

63. NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

    Position the RH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.

    Courtesy of FORD MOTOR COMPANY

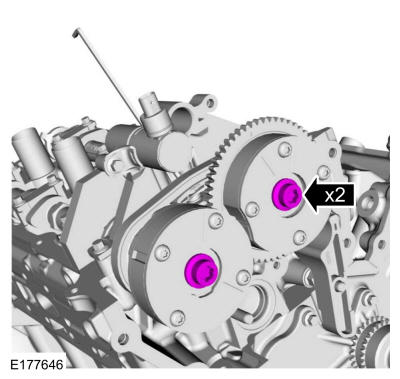

64. Install the new RH VCT unit bolts.

    Torque: Stage 1: 30 lb.ft (40 Nm) Stage 2: Loosen: 1turn(s) Stage 3: 18 lb.ft (25 Nm) Stage 4: 180 deg.

    Courtesy of FORD MOTOR COMPANY

65. NOTE: Make sure the secondary timing chain is centered on the timing chain tensioner guides.
    NOTE: The VCT oil control solenoids are removed for clarity.

    Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

66. NOTE: Coat the camshafts with clean engine oil prior to installation.

    Lubricate the camshafts with clean engine oil and position the camshafts onto the LH cylinder head in the neutral position as shown.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    Courtesy of FORD MOTOR COMPANY

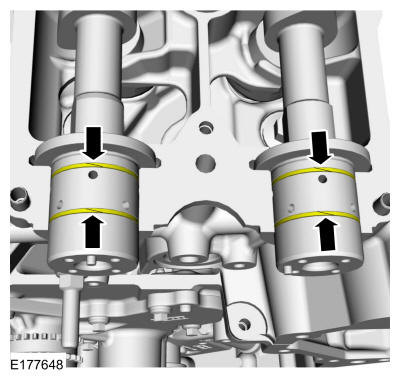

67. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Position the LH camshaft seals gaps as shown.

    Courtesy of FORD MOTOR COMPANY

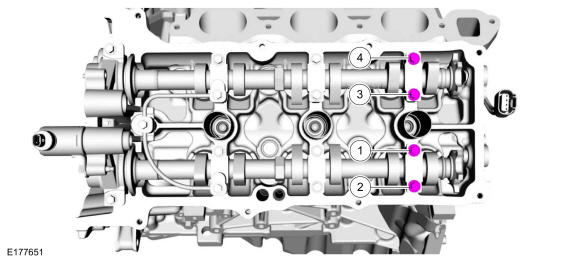

68. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

    Install the camshaft caps, oil tube and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    Courtesy of FORD MOTOR COMPANY

69. Loosen the camshaft cap bolts.

    Courtesy of FORD MOTOR COMPANY

70. Tighten the camshaft cap bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    Courtesy of FORD MOTOR COMPANY

71. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
    NOTE: Use a camshaft sprocket bolt to turn the camshafts.

    Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Adjustment . Use the General Equipment: Feeler Gauge

    Courtesy of FORD MOTOR COMPANY

72. Remove bolts and the oil tube.

    Courtesy of FORD MOTOR COMPANY

73. Rotate the LH camshafts to TDC.

    Courtesy of FORD MOTOR COMPANY

74. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

75. NOTE: The VCT oil control solenoids are removed for clarity.

    Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

76. Align the colored links with the timing marks and assemble the LH VCT units.

    Courtesy of FORD MOTOR COMPANY

77. NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

    Position the LH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.

    Courtesy of FORD MOTOR COMPANY

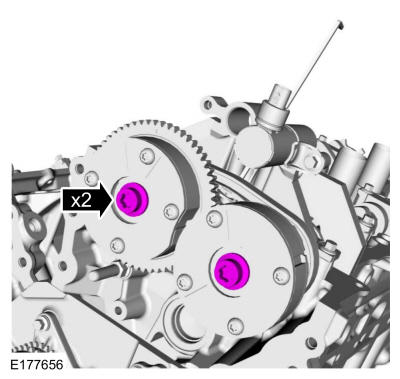

78. Install the new LH VCT unit bolts.

    Torque: Stage 1: 30 lb.ft (40 Nm) Stage 2: Loosen: 1turn(s) Stage 3: 18 lb.ft (25 Nm) Stage 4: 180 deg.

    Courtesy of FORD MOTOR COMPANY

79. NOTE: Make sure the secondary timing chain is centered on the timing chain tensioner guides.
    NOTE: The VCT oil control solenoids are removed for clarity.

    Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

80. Install the LH upper primary timing chain guide and the bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

81. Rotate the crankshaft clockwise 60 degrees to the TDC position (crankshaft dowel pin at 11 o'clock).

    Courtesy of FORD MOTOR COMPANY

82. Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

83. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

    Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

84. Install the lower LH timing chain guide and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

85. Install the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

86. 1. Position the tensioner in a soft-jawed vise.
    2. Using pliers, squeeze the ends of the ratchet wire clip together.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.

    Courtesy of FORD MOTOR COMPANY

87. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.
    1. Install the timing chain tensioner and the bolts.

       Torque: 89 lb.in (10 Nm)

    2. Remove the lockpin.

    Courtesy of FORD MOTOR COMPANY

88. • As a post-check, verify correct alignment of all timing marks.
    • There are 48 links in between the RH intake VCT unit colored link (1) and the LH intake VCT unit colored link (2).
    • There are 35 links in between LH intake VCT unit colored link (2) and the 2 crankshaft sprocket links (3).

    Courtesy of FORD MOTOR COMPANY

89. NOTE: Do not use excessive force when installing the VCT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

    Install the VCT oil control solenoids and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 20 deg.

    Courtesy of FORD MOTOR COMPANY

90. Remove Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

91. Install the RH oil tube and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    Courtesy of FORD MOTOR COMPANY

92. Remove Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

93. Install the LH oil tube and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    Courtesy of FORD MOTOR COMPANY

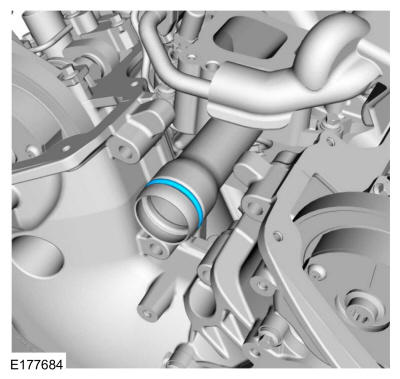

94. Using the special tools, install the front cover to coolant pipe seal. Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

95. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.

    Courtesy of FORD MOTOR COMPANY

96. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover and 6 bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.
    • Apply a 3.0 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

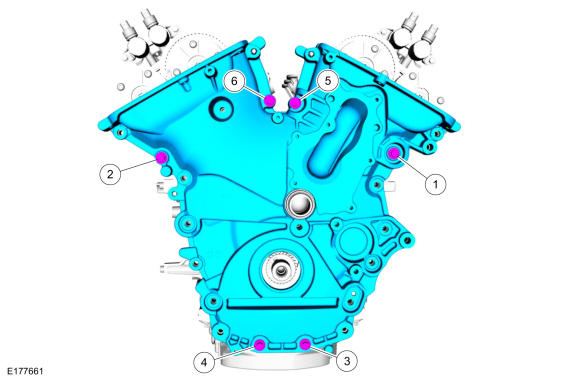

97. NOTE: It will be necessary to obtain 2 W503297 (10mm Hex) M8 x 1.25 x 35 bolts and washers to replace the power steering pump bracket bolts during the front cover tightening process.
    NOTE: Make sure the locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and the bolts.

    Torque: 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

98. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.

    Courtesy of FORD MOTOR COMPANY

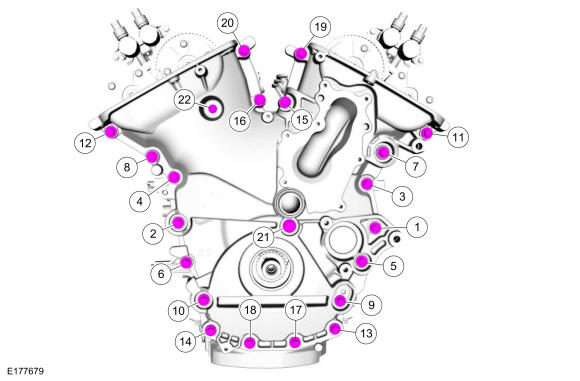

99. NOTE: After the tightening sequence is completed, bolts 10 and 18 will be removed in the next step to accommodate installation of the power steering pump assembly and bolts.

    Install the remaining engine front cover bolts.

    Torque: Stage 1: Tighten bolts 1 thru 21 to: 89 lb.in (10 Nm) Stage 2: Tighten bolts 1 thru 20 to: 18 lb.ft (24 Nm) Stage 3: Tighten bolt 21 to: 177 lb.in (20 Nm) Stage 4: Tighten bolt 21 an additional: 90 deg. Stage 5: Tighten bolt 22 to: 89 lb.in (10 Nm) Stage 6: Tighten bolt 22 an additional: 45 deg.

    Courtesy of FORD MOTOR COMPANY

100. Remove the bolts.

     Courtesy of FORD MOTOR COMPANY

101. Install a new coolant pump gasket and O-ring seal.

     Courtesy of FORD MOTOR COMPANY

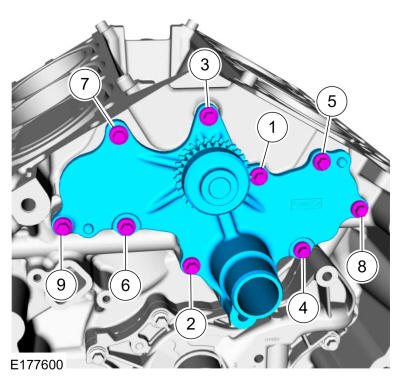

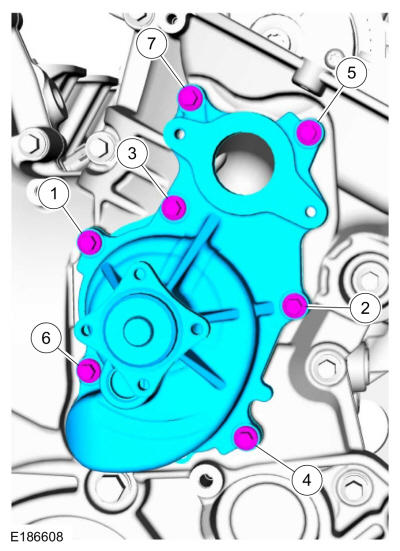

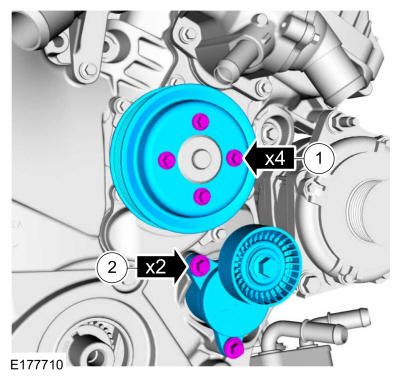

102. Install the coolant pump and the bolts.

     Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.

     Courtesy of FORD MOTOR COMPANY

103. Connect the CHT sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

104. Install the foam insulator.

     Courtesy of FORD MOTOR COMPANY

105. Install the new lower intake manifold gaskets.

     Courtesy of FORD MOTOR COMPANY

106. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

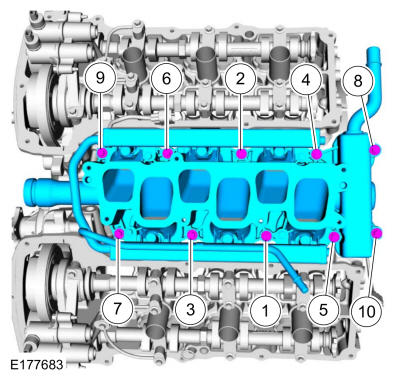

     Install the lower intake manifold and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

107. Install the fuel rail sound insulators.

     Courtesy of FORD MOTOR COMPANY

108. Install a new thermostat housing O-ring seal.

     Courtesy of FORD MOTOR COMPANY

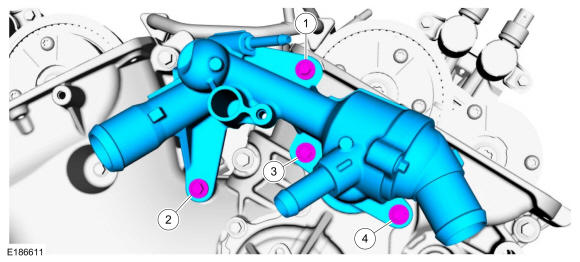

109. Install the thermostat housing and the bolts.

     Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

     Courtesy of FORD MOTOR COMPANY

110. NOTE: Apply clean engine oil to the CMP sensor O-ring seals.

     Install the CMP sensors and the bolts.

     Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

111. Install the RH block coolant drain plug.

     Torque: Stage 1: 142 lb.in (16 Nm) Stage 2: 180 deg.

     Courtesy of FORD MOTOR COMPANY

112. Install the LH block coolant drain plug.

     Torque: 30 lb.ft (40 Nm)

     Courtesy of FORD MOTOR COMPANY

113. Install the RH lift eye and the bolts.

     Torque: 18 lb.ft (24 Nm)

     Courtesy of FORD MOTOR COMPANY

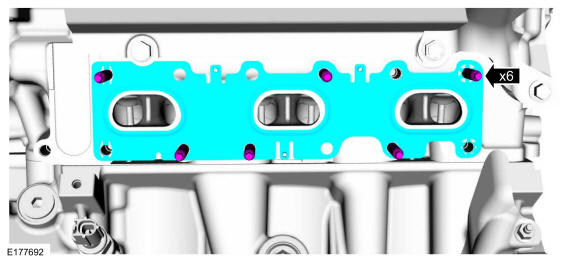

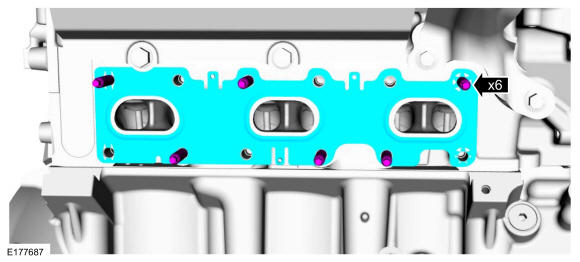

114. • Install the exhaust manifold studs.

       Torque: 106 lb.in (12 Nm)

     • Install the exhaust manifold gasket.

     Courtesy of FORD MOTOR COMPANY

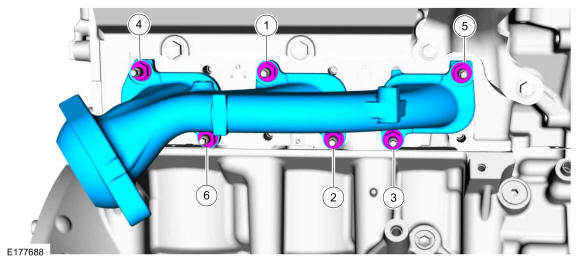

115. Install the exhaust manifold and the new nuts.

     Torque: Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

116. Install the exhaust manifold heat shield and the bolts.

     Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

117. Install the oil filter adapter and the bolts finger-tight.

     Courtesy of FORD MOTOR COMPANY

118. Tighten the bolt.

     Torque: 31 lb.ft (42 Nm)

     Courtesy of FORD MOTOR COMPANY

119. Tighten the bolts.

     Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.

     Courtesy of FORD MOTOR COMPANY

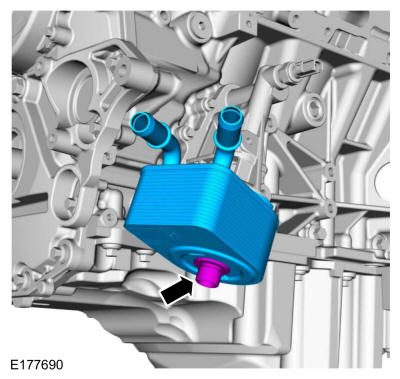

120. NOTE: A new oil cooler must be installed or severe damage to the engine can occur.

     Install the new oil cooler and the bolt.

     Torque: 43 lb.ft (58 Nm)

     Courtesy of FORD MOTOR COMPANY

121. • Install the exhaust manifold studs.

       Torque: 106 lb.in (12 Nm)

     • Install the exhaust manifold gasket.

     Courtesy of FORD MOTOR COMPANY

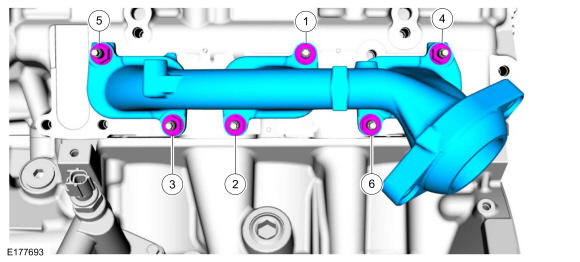

122. Install the exhaust manifold and the new nuts.

     Torque: Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

123. Install the exhaust manifold heat shield and the bolts.

     Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

124. Install the generator stud bolt.

     Torque: 71 lb.in (8 Nm)

     Courtesy of FORD MOTOR COMPANY

125. Install the generator, nut and bolt.

     Torque: 35 lb.ft (47 Nm)

     Courtesy of FORD MOTOR COMPANY

126. Install the A/C compressor and the bolts.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

127. NOTE: Installation of new seals is only required if damaged seals were removed.

     If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

128. NOTE: Installation of new seals is only required if damaged seals were removed.

     If removed, using the special tools, install the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

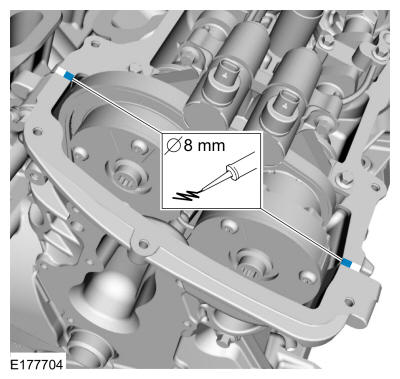

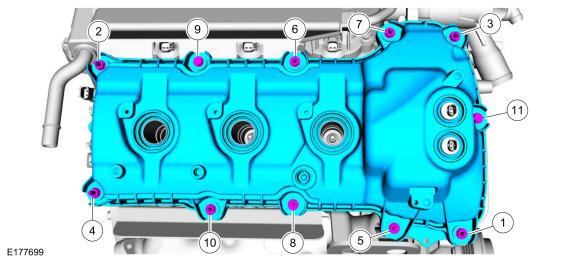

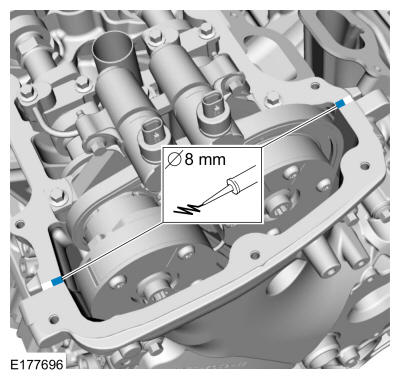

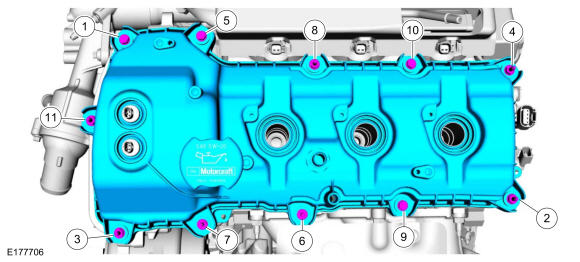

129. NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

     Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

     Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

     Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

     Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

130. Install a new valve cover gasket.

     Courtesy of FORD MOTOR COMPANY

131. Install the valve cover and tighten the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

132. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

     Courtesy of FORD MOTOR COMPANY

133. Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before installing.

     Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

     Courtesy of FORD MOTOR COMPANY

134. Install the RH coil-on-plugs and the bolts.

     Torque: 62 lb.in (7 Nm)

     Courtesy of FORD MOTOR COMPANY

135. NOTE: Installation of new seals is only required if damaged seals were removed.

     If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

136. NOTE: Installation of new seals is only required if damaged seals were removed.

     If removed, using the special tools, install the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

137. NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

     Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

     Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

     Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

     Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

138. Install a new valve cover gasket.

     Courtesy of FORD MOTOR COMPANY

139. Install the valve cover and tighten the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

140. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

     Courtesy of FORD MOTOR COMPANY

141. Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before installing.

     Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

     Courtesy of FORD MOTOR COMPANY

142. • Install the LH coil-on-plugs and the bolts.

       Torque: 62 lb.in (7 Nm)

     • Install the oil level indicator.

     Courtesy of FORD MOTOR COMPANY

143. • Install the engine wiring harness and attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

     NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
144. Install the new upper intake manifold gasket.

     Courtesy of FORD MOTOR COMPANY

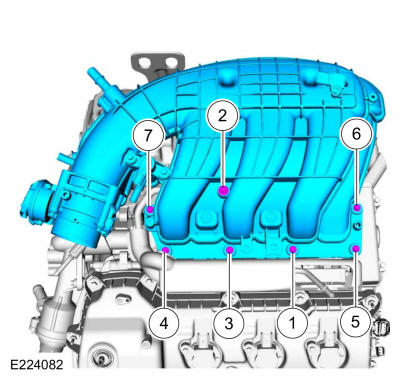

145. Install the upper intake manifold and the bolts.

     Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.

     Courtesy of FORD MOTOR COMPANY

146. Connect the MAPT sensor electrical connector and wiring harness retainer.

     Courtesy of FORD MOTOR COMPANY

147. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

148. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.
     • Slide the insulator on the oil pressure switch.

     Courtesy of FORD MOTOR COMPANY

149. • Attach the wiring harness retainers.
     • Connect the CMP sensor electrical connectors.
     • Connect the KS sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

150. • Install the CKP sensor and the bolt.

       Torque: 89 lb.in (10 Nm)

     • Connect the CKP sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

151. Install the wiring harness grommet.

     Courtesy of FORD MOTOR COMPANY

152. Install the wiring harness retainer stud bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

153. Install the heat shield, nut and bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

154. Install the upper intake manifold support bracket and the bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

155. Install the PCV tube.

     Courtesy of FORD MOTOR COMPANY

156. Install the crankcase vent tube.

     Courtesy of FORD MOTOR COMPANY

157. 1. Install the coolant pump pulley and the bolts.

        Torque: 18 lb.ft (24 Nm)

     2. Install the accessory drive belt tensioner and the bolts.

        Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

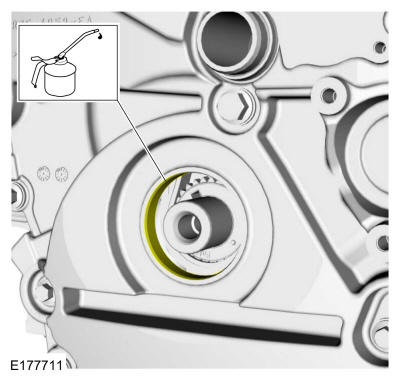

158. Lubricate the crankshaft front seal bore with clean engine oil.

     Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

     Courtesy of FORD MOTOR COMPANY

159. Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley, 303-1251 Installer, Front Seal.

     Courtesy of FORD MOTOR COMPANY

160. Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil.

     Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

     Courtesy of FORD MOTOR COMPANY

161. Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley, 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal.

     Courtesy of FORD MOTOR COMPANY

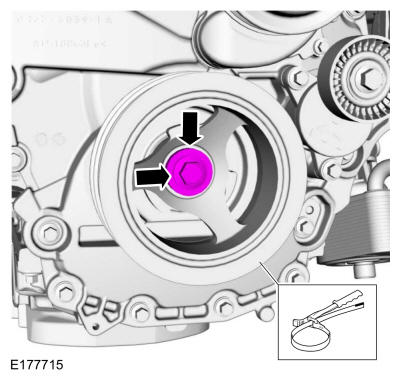

162. Install the new crankshaft bolt and the washer. Use the General Equipment: Strap Wrench

     Torque: Stage 1: 89 lb.ft (120 Nm) Stage 2: Loosen: 1 turn(s) Stage 3: 37 lb.ft (50 Nm) Stage 4: 90 deg.

     Courtesy of FORD MOTOR COMPANY

163. Install the coolant tube and retainer

     Courtesy of FORD MOTOR COMPANY

164. Install the RH engine mount bracket and the bolts.

     Torque: 46 lb.ft (63 Nm)

     Courtesy of FORD MOTOR COMPANY

165. Install the LH engine mount bracket and the bolts.

     Torque: 46 lb.ft (63 Nm)

     Courtesy of FORD MOTOR COMPANY

166. Install the LH engine lift eye. Use Special Service Tool: 303-1245 Engine Lift Eye.

     Courtesy of FORD MOTOR COMPANY

167. Install the floor crane. Use the General Equipment: Floor Crane

     Courtesy of FORD MOTOR COMPANY

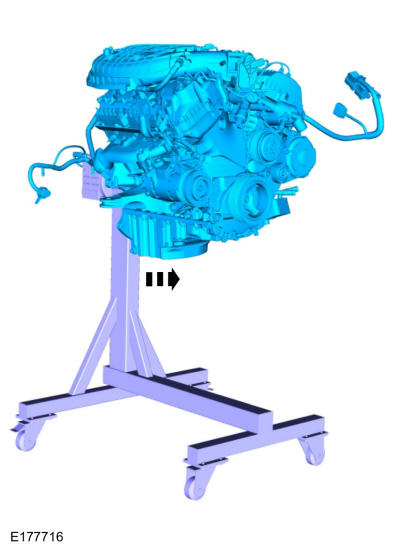

168. Remove the engine from the mounting stand. Use the General Equipment: Mounting Stand

     Courtesy of FORD MOTOR COMPANY

169. Install the crankshaft sensor ring and the engine-to-transmission spacer plate.

     Courtesy of FORD MOTOR COMPANY

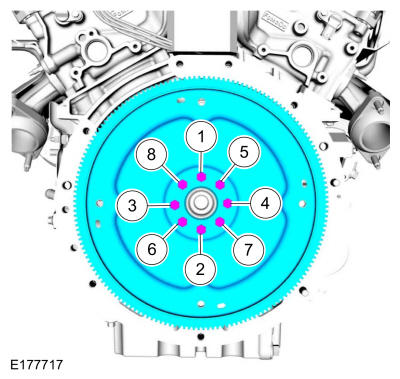

170. NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position

     Install the flexplate and the bolts.

     Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
