Section 13 (Engine - 3.5L ECOBOOST (235KW/320PS)): Removal: Engine
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| 303-050 (T70P-6000) Lifting Bracket, Engine |
|
|---|---|
| 303-1529 Lift Eye, Engine TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW |
|
| Floor Crane | |
| Adjustable Mounting Arm | |
| Oil Drain Equipment | |
| Vehicle/Axle Stands | |
| Hose Clamp Remover/Installer | |
| Wooden Block |
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- Remove the following items:
- Refer to: Air Conditioning (A/C) Compressor Belt .
- Refer to: Cooling Module .
-
- Disconnect the wiring harness electrical connector and detach the retainer.
- Disconnect the fuel vapor tube quick release coupling.
- Loosen the clamp and remove the CAC outlet pipe.
-
- Disconnect the vacuum hose.
- Loosen the clamps and remove the RHTC outlet and inlet pipes.
-
- Disconnect the PCV tube quick release coupling.
- Loosen the clamp and remove the LH TC inlet pipe.
- Loosen the clamp and remove the LH TC outlet pipe.
-
- Remove the fuel injection pump noise insulator.
- Disconnect the crankcase pressure sensor electrical connector.
- Disconnect the quick release coupling and remove the PCV tube.
- Disconnect the brake vacuum tube.
- Disconnect the following items:
- wiring harness retainer.
- PCM electrical connector.
- wiring harness electrical connector.
-
- Disconnect the heater and degas bottle hoses. Use the General Equipment: Hose Clamp Remover/Installer
- If equipped, disconnect the block heater electrical connector and detach the wiring harness retainers.
- Disconnect the heater hose quick release coupling.
- Remove the nuts and disconnect the A/C tubes.
- Disconnect the A/C compressor electrical connector and detach the wiring harness retainers.
- Disconnect the fuel and fuel vapor quick release couplings. Refer to: Quick Release Coupling .
- Remove the front wheels and tires. Refer to: Wheel and Tire .
- Remove the nut and the A/C tube assembly.
- Remove the following items:
- Refer to: Starter Motor .
-
NOTE: RH and LH.
Refer to: Heated Oxygen Sensor (HO2S) .
-
NOTE: RH and LH.
Refer to: Catalyst Monitor Sensor .
-
- Position the protective cover aside.
- Remove the generator B+ terminal nut.
- Disconnect the generator electrical connector and detach the wiring harness retainer.
- Detach the wiring harness retainers.
- Remove the wiring harness conduit bolt.
- Remove the wiring harness conduit nut and position the harness aside.

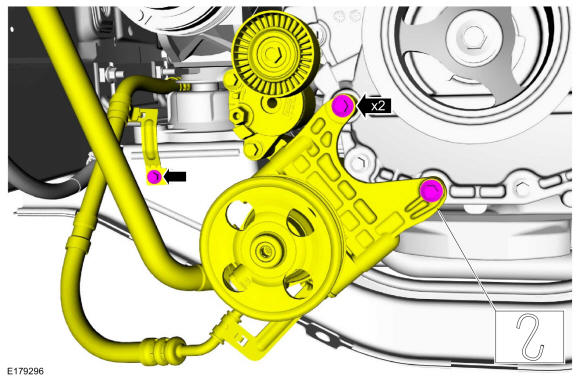

- Remove the power steering pump bracket stud bolt.
- Remove the bolts and position aside and support the power steering pump and hoses.
-
- Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: The transmission fluid cooler tube band seal and backing rings may remain in the transmission case. Carefully remove them from the case if retained.
Remove the bolts and the transmission cooler tube assembly.

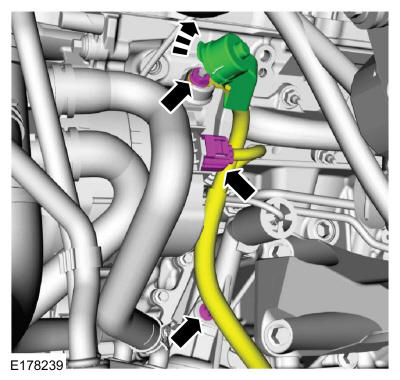

- Remove the bolt, detach the wiring harness retainer and position the wiring harness aside.
- Remove the bolt, the nuts and the transmission heat shield.
-

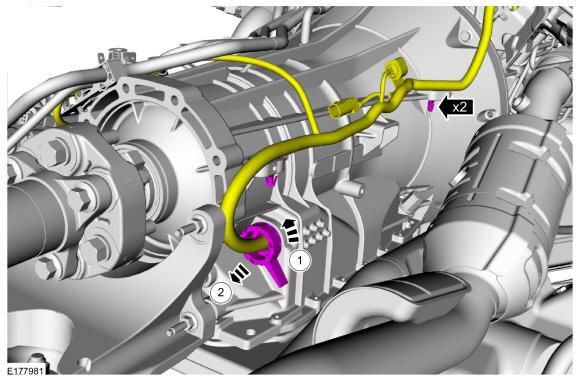

- Rotate the transmission electrical connector counter-clockwise.
- Pull the transmission electrical connector out to disconnect.
- Detach the retainers and position the wiring harness aside.
- Remove the retainers and the access cover.
-
NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.
Remove and discard the torque converter nuts.
- Remove the exhaust flange bolts and detach the exhaust hanger.

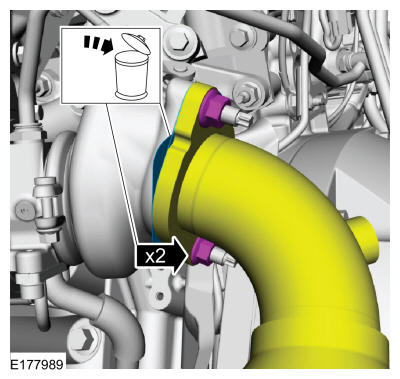

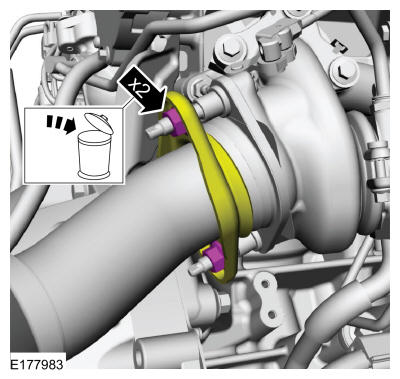

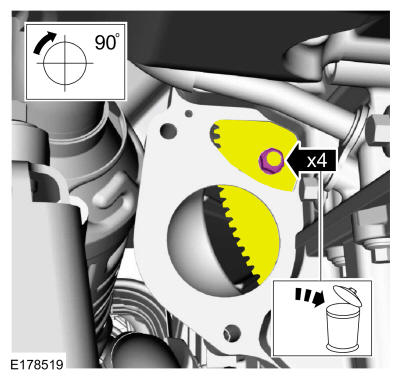

- Remove and discard the RH catalytic converter flange nuts.
-
- Remove and discard the LH catalytic converter flange nuts.
- Position the catalytic converter assembly aside and remove and discard the gasket.
-

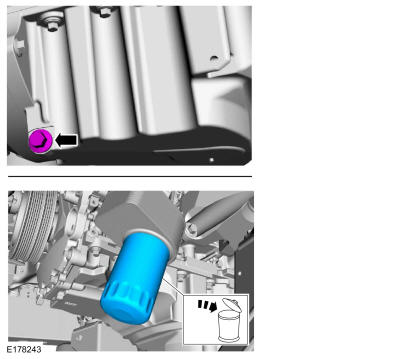

- Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
Torque: 20 lb.ft (27 Nm)
- Remove and discard the oil filter.
- Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

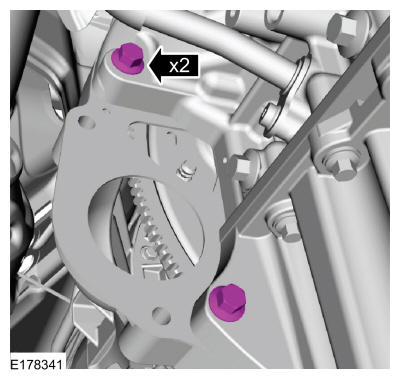

- Remove the lower bellhousing bolt.

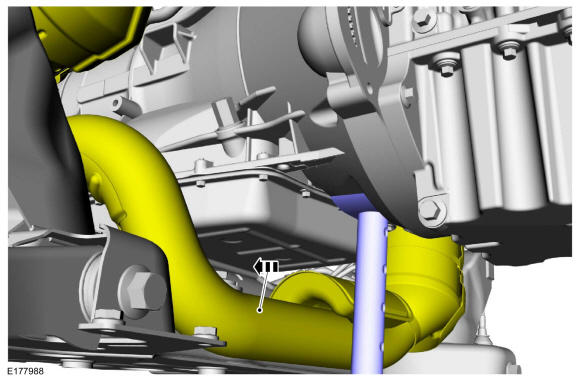

- Position the exhaust back and install the stand under the transmission bellhousing. Use the General Equipment: Vehicle/Axle Stands
- Remove the upper bellhousing bolts.
- Remove the LH side bellhousing bolts and the shift cable bracket.

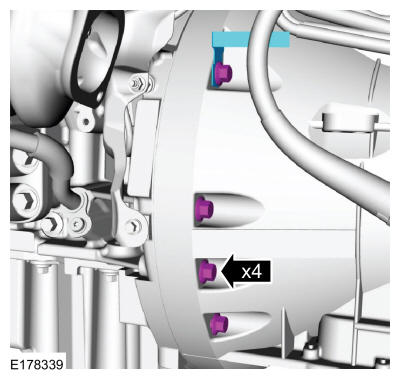

- Remove the RH side bellhousing bolts.
- Position the powertrain lift table under the engine crossmember and support the front of the oil pan with wood blocks. Use the General Equipment: Wooden Block
- Install the adjustable mounting arm to the LH side of the engine crossmember. Use the General Equipment: Adjustable Mounting Arm
- Install the adjustable mounting arm to the RH side of the engine crossmember. Use the General Equipment: Adjustable Mounting Arm

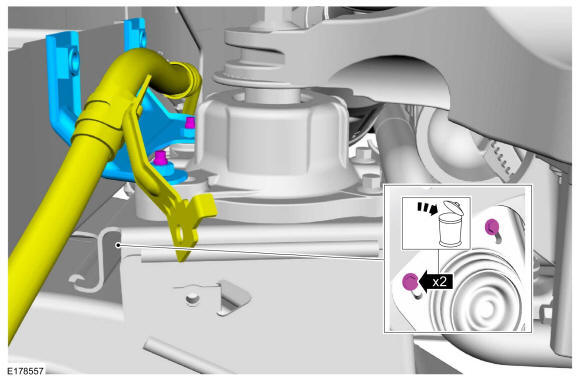

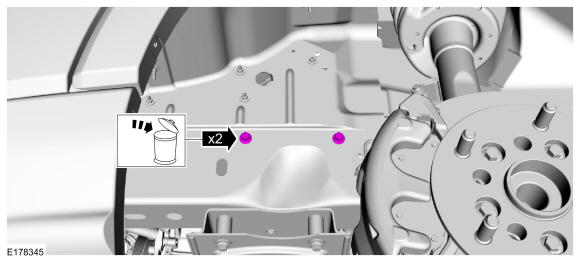

- Remove and discard the LH engine crossmember bracket bolts.

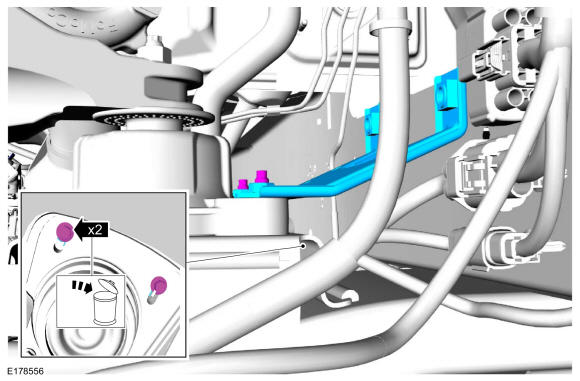

- Remove and discard the bolts and remove the LH engine crossmember bracket.

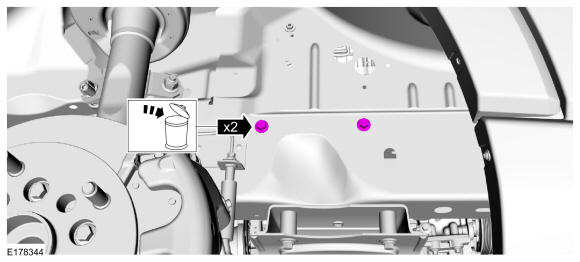

- Remove and discard the RH engine crossmember bracket bolts.
- Remove and discard the bolts and remove the RH engine crossmember bracket.

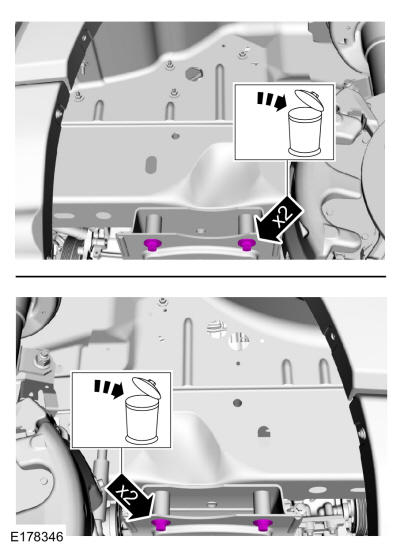

- Remove and discard the engine crossmember bolts.

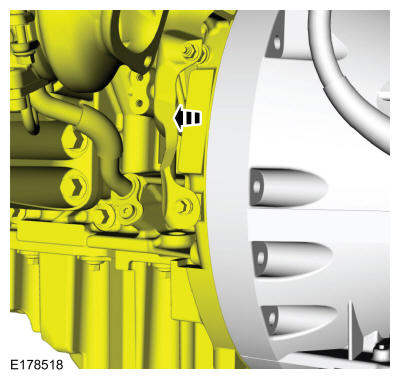

- Separate the engine from the transmission.

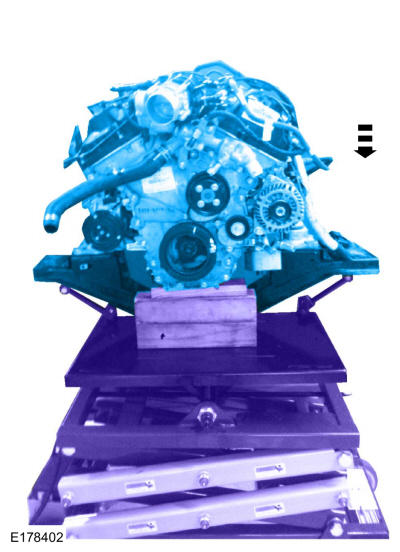

- Using the powertrain lift table lower the engine from the vehicle.
- Install Special Service Tool: 303-1529 Lift Eye, Engine, 303-050 (T70P-6000) Lifting Bracket, Engine. Use the General Equipment: Floor Crane
-

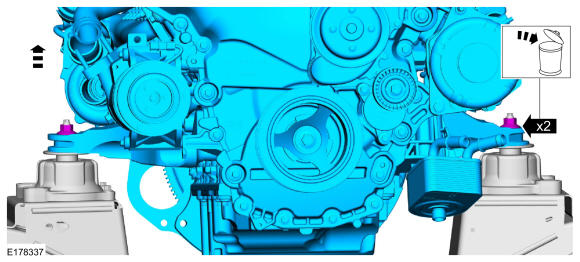

- Remove and discard the engine mount nuts.
- Using the floor crane, lift the engine from the engine crossmember. Use the General Equipment: Floor Crane
