Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.
  1. Disconnect the A/C compressor electrical connector and wiring harness retainer.
    GFD308516Courtesy of FORD MOTOR COMPANY
  2. Remove the engine front cover. Refer to: Engine Front Cover .
  3. NOTE: Rotate the crankshaft in a clockwise direction only.

    Align the timing marks.

    GFD308517Courtesy of FORD MOTOR COMPANY
  4. Remove the bolts and the LH oil tube.
    GFD308518Courtesy of FORD MOTOR COMPANY
  5. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD308519Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and the RH oil tube.
    GFD308520Courtesy of FORD MOTOR COMPANY
  7. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD308521Courtesy of FORD MOTOR COMPANY
    NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.
  8. Mark the timing chain link that aligns with the timing mark on the LH intake VCT unit as shown.
    GFD308522Courtesy of FORD MOTOR COMPANY
  9. Mark the timing chain link that aligns with the timing mark on the RH intake VCT unit as shown.
    GFD308523Courtesy of FORD MOTOR COMPANY
  10. NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

    Mark the timing chain links that aligns with the timing mark on the crankshaft sprocket as shown.

    GFD308524Courtesy of FORD MOTOR COMPANY
  11. Remove the bolts and the timing chain tensioner.
    GFD308525Courtesy of FORD MOTOR COMPANY
  12. Remove the timing chain tensioner arm.
    GFD308526Courtesy of FORD MOTOR COMPANY
  13. Remove the bolts and the lower LH timing chain guide.
    GFD308527Courtesy of FORD MOTOR COMPANY

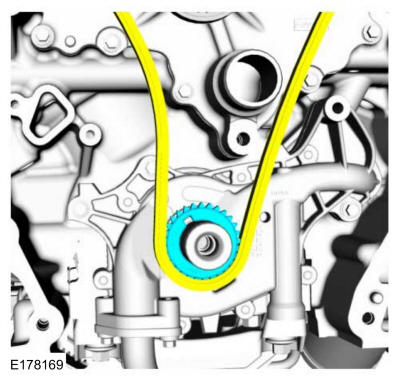

  14. Position the timing chain aside and remove the crankshaft sprocket.
    GFD308528Courtesy of FORD MOTOR COMPANY

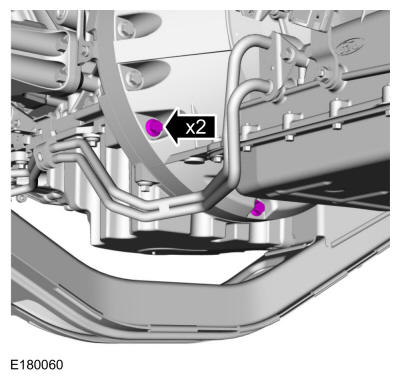

  15. Remove the oil pan bolts.
    GFD308529Courtesy of FORD MOTOR COMPANY
  16. Remove the starter motor solenoid terminal cover.
    GFD308530Courtesy of FORD MOTOR COMPANY
  17. Remove the nuts and the starter motor wiring harness.
    GFD308531Courtesy of FORD MOTOR COMPANY

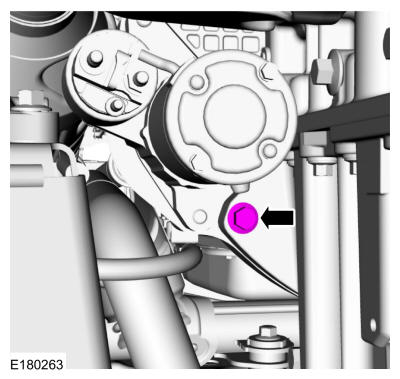

  18. Remove the oil pan bolt.
    GFD308532Courtesy of FORD MOTOR COMPANY
  19. Detach the wiring harness retainers from the engine crossmember.
    GFD308472Courtesy of FORD MOTOR COMPANY
    • Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

      Torque: 20 lb.ft (27 Nm)

    • Remove and discard the oil filter.

    GFD308450Courtesy of FORD MOTOR COMPANY
  21. Remove the retainer and position the oil cooler aside.
    GFD308533Courtesy of FORD MOTOR COMPANY
  22. Remove the bolt for the transmission cooler tubes.
    GFD308534Courtesy of FORD MOTOR COMPANY
  23. NOTE: RH shown, LH similar.

    Remove and discard the RH and LH engine mount nuts.

    GFD308480Courtesy of FORD MOTOR COMPANY
  24. Remove the power steering hose bracket bolt from the engine crossmember.
    GFD308535Courtesy of FORD MOTOR COMPANY
  25. Install the stands under the RH engine mount bracket and under the engine-block-to-generator mount boss. Use the General Equipment: Vehicle/Axle Stands
    GFD308536Courtesy of FORD MOTOR COMPANY
  26. NOTE: RH shown, LH similar.

    Remove and discard the RH and LH engine mount bolts from the bottom of the engine crossmember.

    GFD308484Courtesy of FORD MOTOR COMPANY
  27. With the aid of an assistant, remove and discard the engine crossmember bolts and remove the engine crossmember.
    GFD308485Courtesy of FORD MOTOR COMPANY

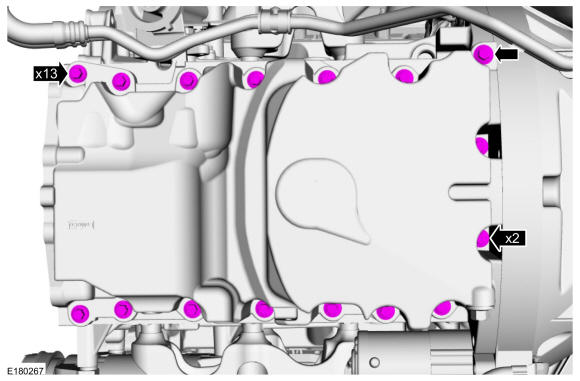

  28. Remove the oil pan bolts.
    GFD308537Courtesy of FORD MOTOR COMPANY

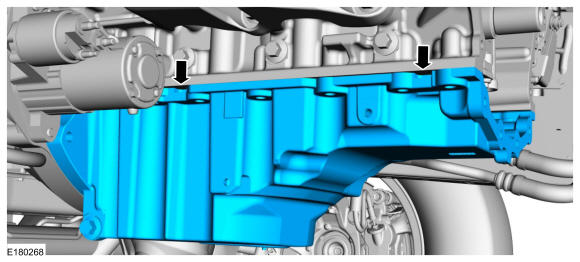

  29. Using a pry tool on the pry pads shown, remove the oil pan.
    GFD308538Courtesy of FORD MOTOR COMPANY

    • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

    GFD308539Courtesy of FORD MOTOR COMPANY

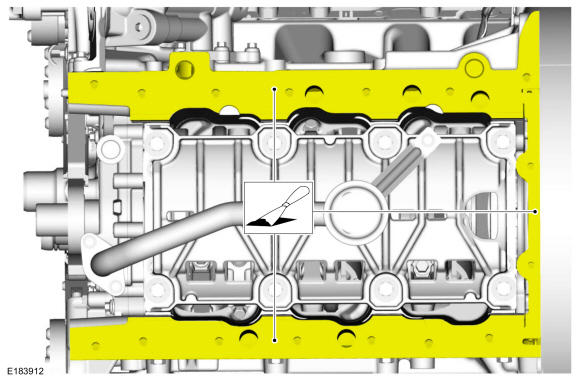

  31. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD308540Courtesy of FORD MOTOR COMPANY
  32. Remove the bolts and oil pump screen and pickup tube.
    GFD308541Courtesy of FORD MOTOR COMPANY
  33. Remove and discard the oil pump screen and pickup tube O-ring seal.
    GFD308542Courtesy of FORD MOTOR COMPANY
  34. Remove the bolts and oil pump.
GFD308543Courtesy of FORD MOTOR COMPANY
