Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery ground cable. Refer to: Battery Cables - 3.5L EcoBoost (235kW/320PS)/3.7L Duratec (199kW/270PS), Vehicles With: Single Battery . Refer to: Battery Cables - 3.5L EcoBoost (235kW/320PS)/3.7L Duratec (199kW/270PS), Vehicles With: Dual Batteries .
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. Refer to: Air Cleaner Outlet Pipe .
2. Refer to: Air Conditioning (A/C) Compressor Belt .
3. Refer to: Starter Motor .

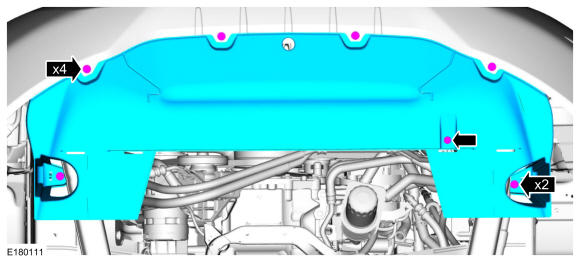

Remove the retainers and the shield.

Courtesy of FORD MOTOR COMPANY

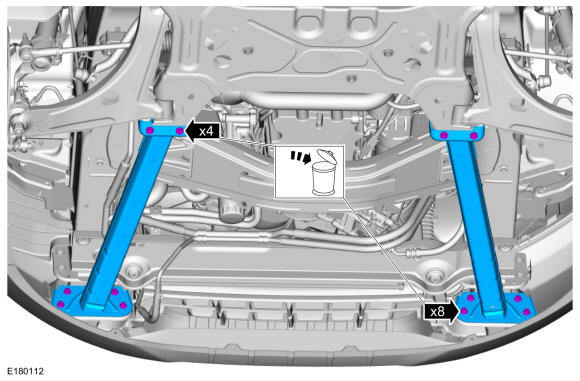

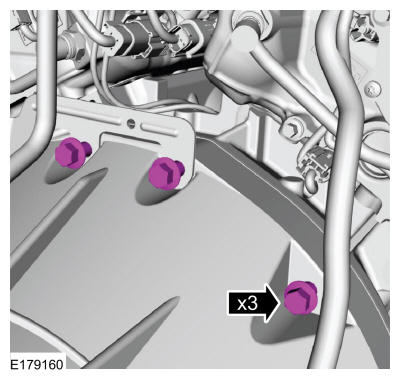

Remove and discard the retainers and remove the lower load path bars.

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Remove the wiring harness conduit bolt.

Courtesy of FORD MOTOR COMPANY
Remove the wiring harness conduit nut and position the harness aside.

Courtesy of FORD MOTOR COMPANY

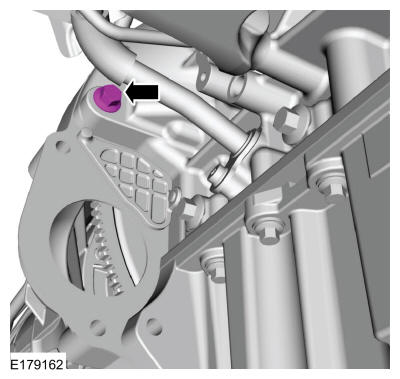

Remove the power steering pump bracket stud bolt.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and position aside and support the power steering pump and hoses.

Courtesy of FORD MOTOR COMPANY
Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY
Remove the oil pan bolt.

Courtesy of FORD MOTOR COMPANY
Loosen the bellhousing bolt 5 mm (0.19 in).

Courtesy of FORD MOTOR COMPANY

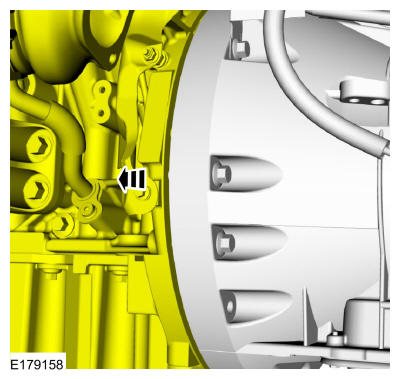

Loosen the bellhousing bolts 5 mm (0.19 in).

Courtesy of FORD MOTOR COMPANY

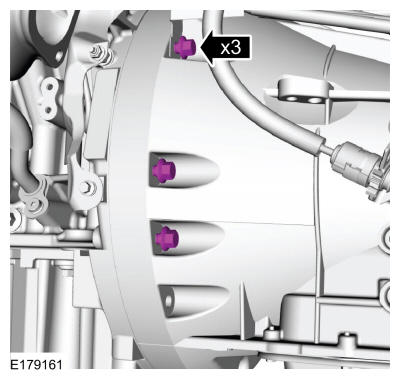

Loosen the bellhousing bolts 5 mm (0.19 in).

Courtesy of FORD MOTOR COMPANY
Remove the engine front cover bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

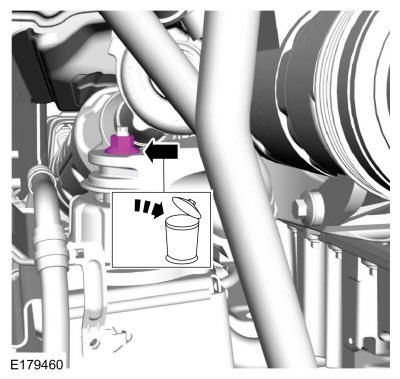

Remove and discard the RH and LH engine mount nuts.

Courtesy of FORD MOTOR COMPANY
- Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
  Torque: 20 lb.ft (27 Nm)
- Remove and discard the oil filter.
Courtesy of FORD MOTOR COMPANY
Remove the retainer and position the oil cooler aside.

Courtesy of FORD MOTOR COMPANY
Remove the transmission cooler tube bracket bolt.

Courtesy of FORD MOTOR COMPANY

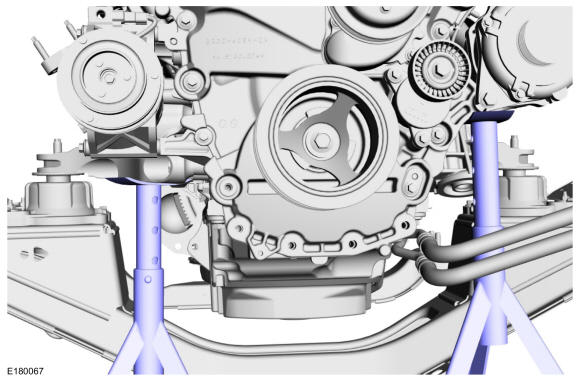

Install the stands under the RH engine mount bracket and under the engine block generator mount boss. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

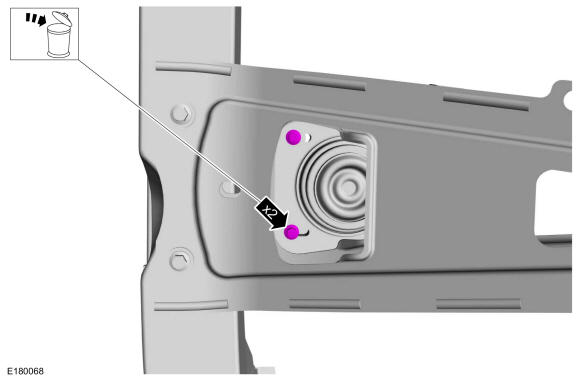

Remove and discard the RH and LH engine mount bolts from the bottom of the engine crossmember.

Courtesy of FORD MOTOR COMPANY

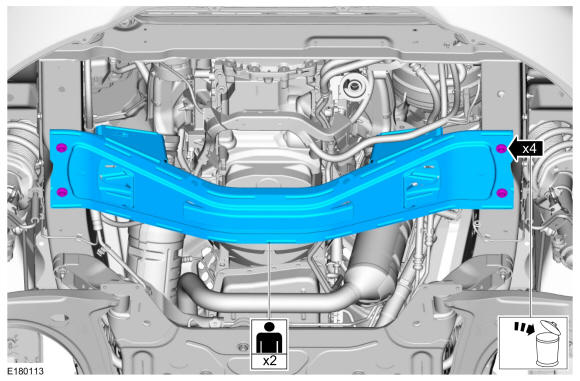

With the aid of an assistant, remove and discard the engine crossmember bolts and remove the engine crossmember.

Courtesy of FORD MOTOR COMPANY
Separate the engine and transmission 5 mm (0.19 in).

Courtesy of FORD MOTOR COMPANY

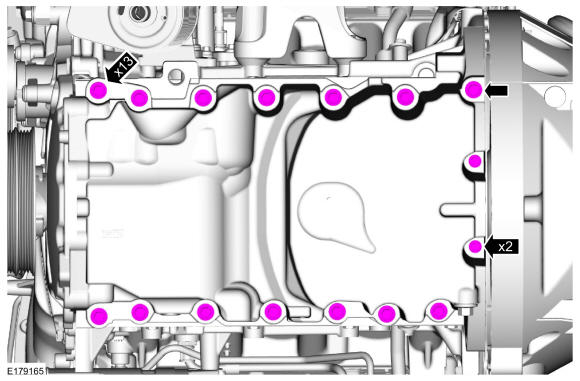

Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

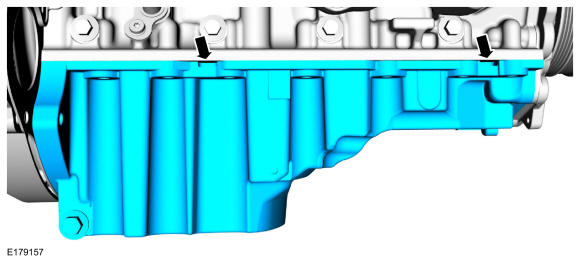

Using a pry tool on the pry pads, remove the oil pan.

Courtesy of FORD MOTOR COMPANY
- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
- Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.
Courtesy of FORD MOTOR COMPANY

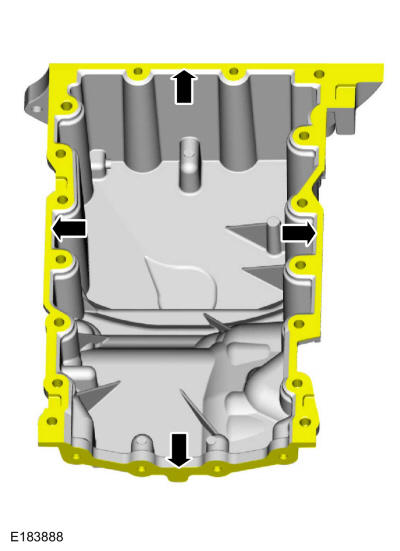

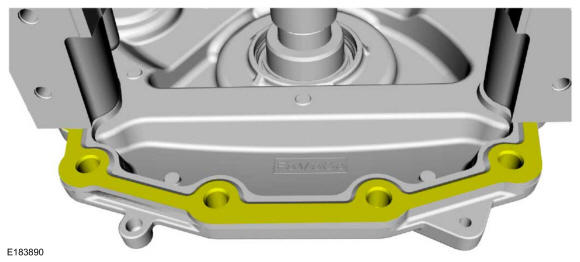

Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY

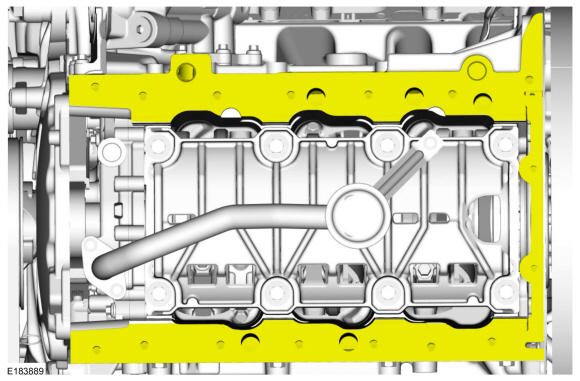

Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

GFD308491

Courtesy of FORD MOTOR COMPANY
