Exhaust Manifold RH: Installation

WARNING: This page is about a different variant/trim than selected.

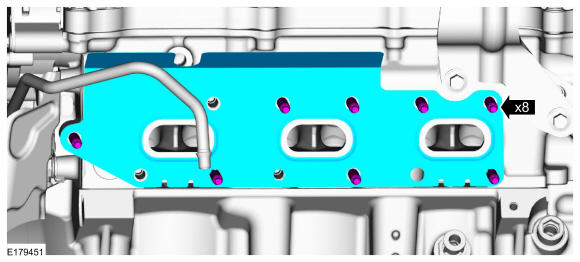

- Install new exhaust manifold studs.
  Torque: 106 lb.in (12 Nm)
- Install a new gasket.
Courtesy of FORD MOTOR COMPANY
Install the exhaust manifold and new nuts.
Torque: Stage 1: 168 lb.in (19 Nm) Stage 2: 18 lb.ft (25 Nm)

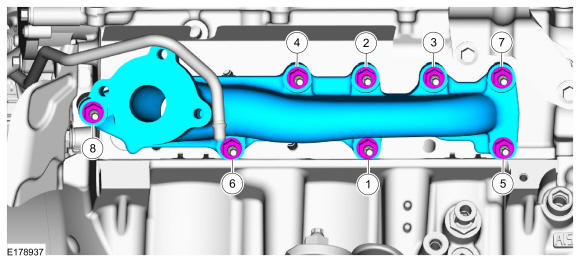

Fig 1: RH Exhaust Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the RH turbocharger. Refer to: Turbocharger RH .
