Engine Mount LH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the engine crossmember. Refer to: Engine Crossmember .

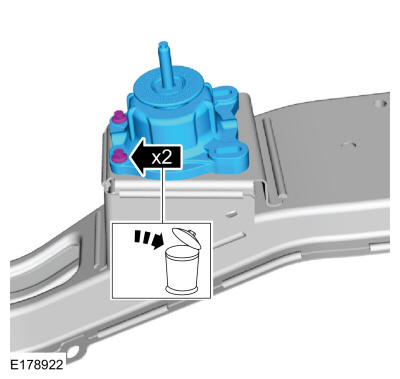

    • Remove and discard the bolts.

      Torque: 22 lb.ft (30 Nm)

    • Remove the engine mount.

GFD308451Courtesy of FORD MOTOR COMPANY
