Engine Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.

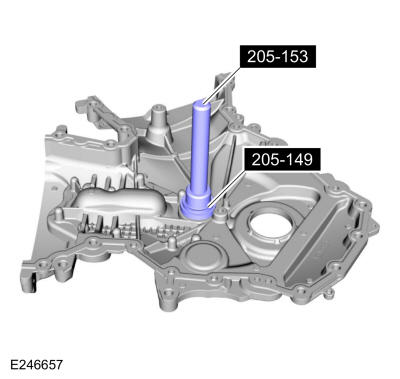

  1. Using the special tools, install the engine front cover to coolant pipe seal. Use Special Service Tool: 205-149 (T80T-4000-R) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.
    GFD308440Courtesy of FORD MOTOR COMPANY

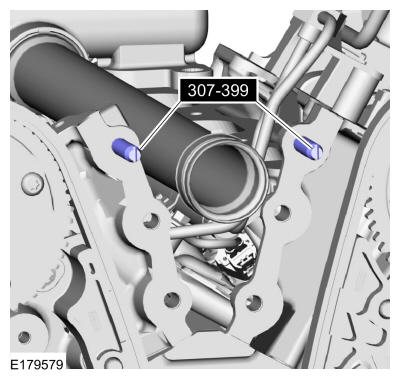

  2. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD308441Courtesy of FORD MOTOR COMPANY
    • NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
      NOTE: The engine front cover and the 6 bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

      Apply a 3.0 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD308442Courtesy of FORD MOTOR COMPANY
  3. NOTE: It will be necessary to obtain 2 W503297 (10mm HEX) M8 X 1.25 X 35 bolts and washers to replace the power steering bracket bolts during the front cover tightening process.
    NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

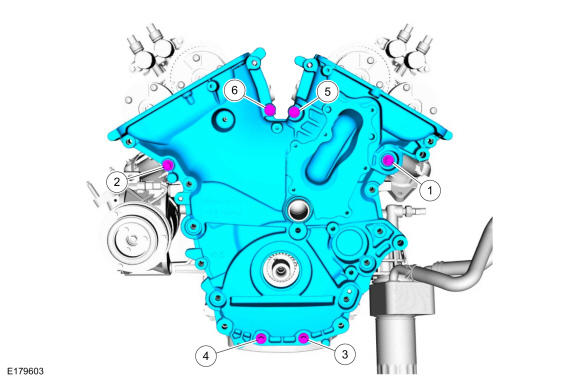

    Install the engine front cover and the bolts.

    Torque: 27 lb.in (3 Nm)

    GFD308443Courtesy of FORD MOTOR COMPANY

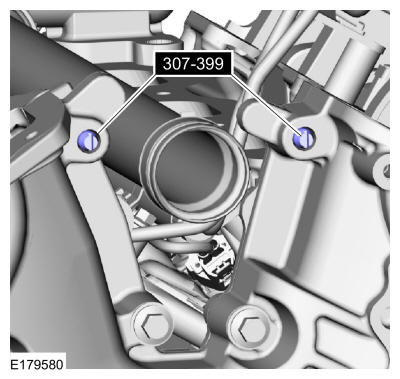

  4. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD308444Courtesy of FORD MOTOR COMPANY
  5. NOTE: After the tightening sequence is completed, bolts 10 and 18 will be removed to accommodate installation of the power steering pump assembly and bolts.

    Install the remaining engine front cover bolts. Tighten in sequence in 6 stages:

    Torque: Stage 1: Tighten bolts 1 thru 21 to: 89 lb.in (10 Nm) Stage 2: Tighten bolts 1 thru 20 to: 18 lb.ft (24 Nm) Stage 3: Tighten bolt 21 to: 177 lb.in (20 Nm) Stage 4: Tighten bolt 21 an additional: 90 deg. Stage 5: Tighten bolt 22 to: 89 lb.in (10 Nm) Stage 6: Tighten bolt 22 an additional: 45 deg.

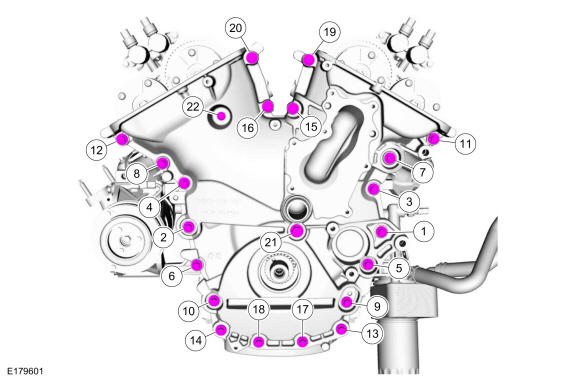

    Fig 1: Engine Front Cover Tightening Sequence
    GFD308445Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts.
    GFD308446Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not tighten the bolts at this time.

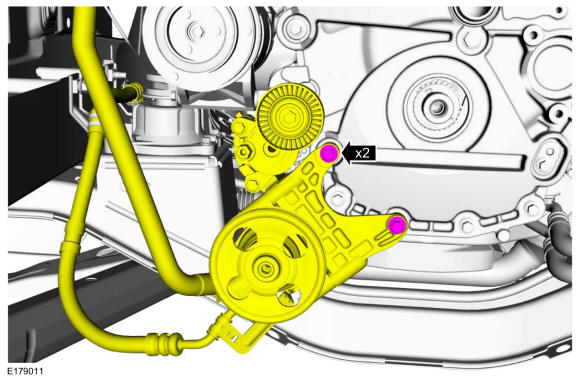

    Position the power steering pump assembly and install the bolts by hand.

    GFD308447Courtesy of FORD MOTOR COMPANY
  8. Install the power steering pump bracket stud bolt.

    Torque: 27 lb.in (3 Nm)

    GFD308433Courtesy of FORD MOTOR COMPANY
    1. Torque

      : 26 lb.ft (35 Nm)

    2. Torque

      : 26 lb.ft (35 Nm)

    3. Torque

      : 19 lb.ft (26 Nm)

    GFD308448Courtesy of FORD MOTOR COMPANY
  9. Install the wiring harness conduit and nut.

    Torque: 71 lb.in (8 Nm)

    GFD308432Courtesy of FORD MOTOR COMPANY
  10. Install the wiring harness conduit bolt.

    Torque: 106 lb.in (12 Nm)

    GFD308431Courtesy of FORD MOTOR COMPANY
  11. Attach the wiring harness retainer.
    GFD308430Courtesy of FORD MOTOR COMPANY
    • Install the stud bolt.

      Torque: 71 lb.in (8 Nm)

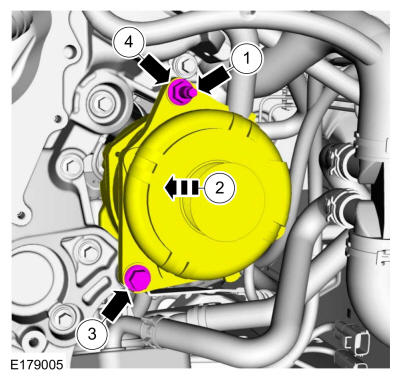

    • Install the generator.

    • Install the bolt

      Torque: 35 lb.ft (48 Nm)

    • Install the nut.

      Torque: 35 lb.ft (48 Nm)

    GFD308449Courtesy of FORD MOTOR COMPANY
  12. Install the accessory drive belt tensioner and the bolts.

    Torque: 97 lb.in (11 Nm)

    GFD308428Courtesy of FORD MOTOR COMPANY
  13. Install the coolant pump. Refer to: Coolant Pump .
    • Install the CAC outlet pipe.

    • Connect the fuel vapor tube quick release coupling.

    • Connect the wiring harness electrical connector and detach the retainer.

    GFD308427Courtesy of FORD MOTOR COMPANY
  14. Install the following items:

    1. Refer to: Crankshaft Front Seal .
    2. Refer to: Valve Cover RH .
    3. Refer to: Valve Cover LH .
    4. Refer to: Intake Manifold .

    • Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

      Torque: 20 lb.ft (27 Nm)

    • Remove and discard the engine oil filter.

    GFD308450Courtesy of FORD MOTOR COMPANY
  15. NOTE: Do not lubricate the engine oil filter seal.

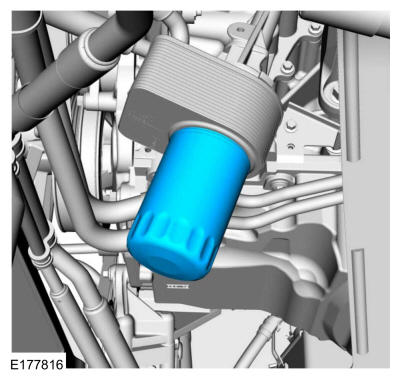

    Install a new engine oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

    GFD308408Courtesy of FORD MOTOR COMPANY

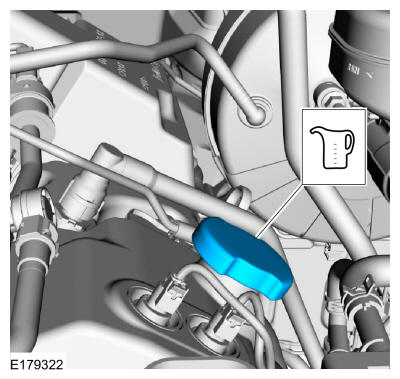

  16. Fill the engine with clean engine oil.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD308409Courtesy of FORD MOTOR COMPANY
  17. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  18. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
