Cylinder Head LH: Installation

WARNING: This page is about a different variant/trim than selected.

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

NOTE: Install new cylinder head bolts.

Install the cylinder head and the new bolts. Tighten in sequence in 5 stages.

Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 26 lb.ft (35 Nm) Stage 3: 90 deg. Stage 4: 90 deg. Stage 5: 45 deg.

Fig 1: LH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the M6 bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

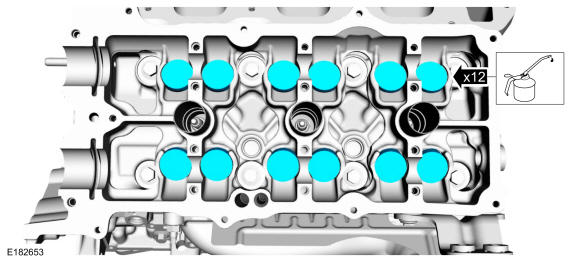

NOTE: The valve tappets must be installed in their original positions.

Lubricate the valve tappets with clean engine oil and install.

Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the O-ring seals with clean engine oil.

Install the CMP sensors and the bolts.

Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
- Connect the CMP sensors electrical connectors.
- Install the ground strap and stud bolt.
  Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 20 deg.
- Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
Disconnect the LH fuel charge harness electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new high pressure fuel tube and a new high pressure fuel tube bracket bolt are installed.

NOTE: Install the new high pressure fuel tube, the high pressure fuel tube flare nuts, and the new bracket bolt and tighten finger tight at this stage. Tighten in the sequence shown.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.

Courtesy of FORD MOTOR COMPANY
1. Tighten the high pressure fuel tube-to-RH fuel rail tube flare nut.
  Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: Tighten an additional 45 degrees or 50 Nm (37 lb-ft), whichever comes first. : 45 deg.
2. Tighten the high pressure fuel tube-to-LH fuel rail tube flare nut.
  Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: Tighten an additional 45 degrees or 50 Nm (37 lb-ft), whichever comes first. : 45 deg.
3. Tighten the high pressure fuel tube bracket bolt.
  Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.
Courtesy of FORD MOTOR COMPANY
- Using new gaskets, install the coolant crossover manifold and coolant inlet tube assembly and bolts.
  Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.
- Connect the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
NOTE: Do not use power tools to install the bolt or damage to the upper LH timing chain guide may occur.

Install the upper LH timing chain guide and the bolt.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH camshafts. Refer to: Camshafts .
Support the transmission with a wooden block and stand. Use the General Equipment: Wooden Block. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the transmission crossmember.

Courtesy of FORD MOTOR COMPANY
Install the LH turbocharger. Refer to: Turbocharger LH .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
  Torque: 20 lb.ft (27 Nm)
Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the engine oil filter seal.

Install a new engine oil filter.

Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
